3.4 TX3-TOUCH-F15-B/C/D and
TX3-TOUCH-S15-B/C/D Inside Door, Boards, and
Grounding
3.4.1 Inside Door
The inside doors of TX3-TOUCH-F15-B/C/D and TX3-TOUCH-S15-B/C/D
contain the following components as shown in Figure 66:
• Speakers
•Camera
• Postal Lock (optional)
•Fan (optional)
• Microphone
• P300 Card Reader
•Keyhole

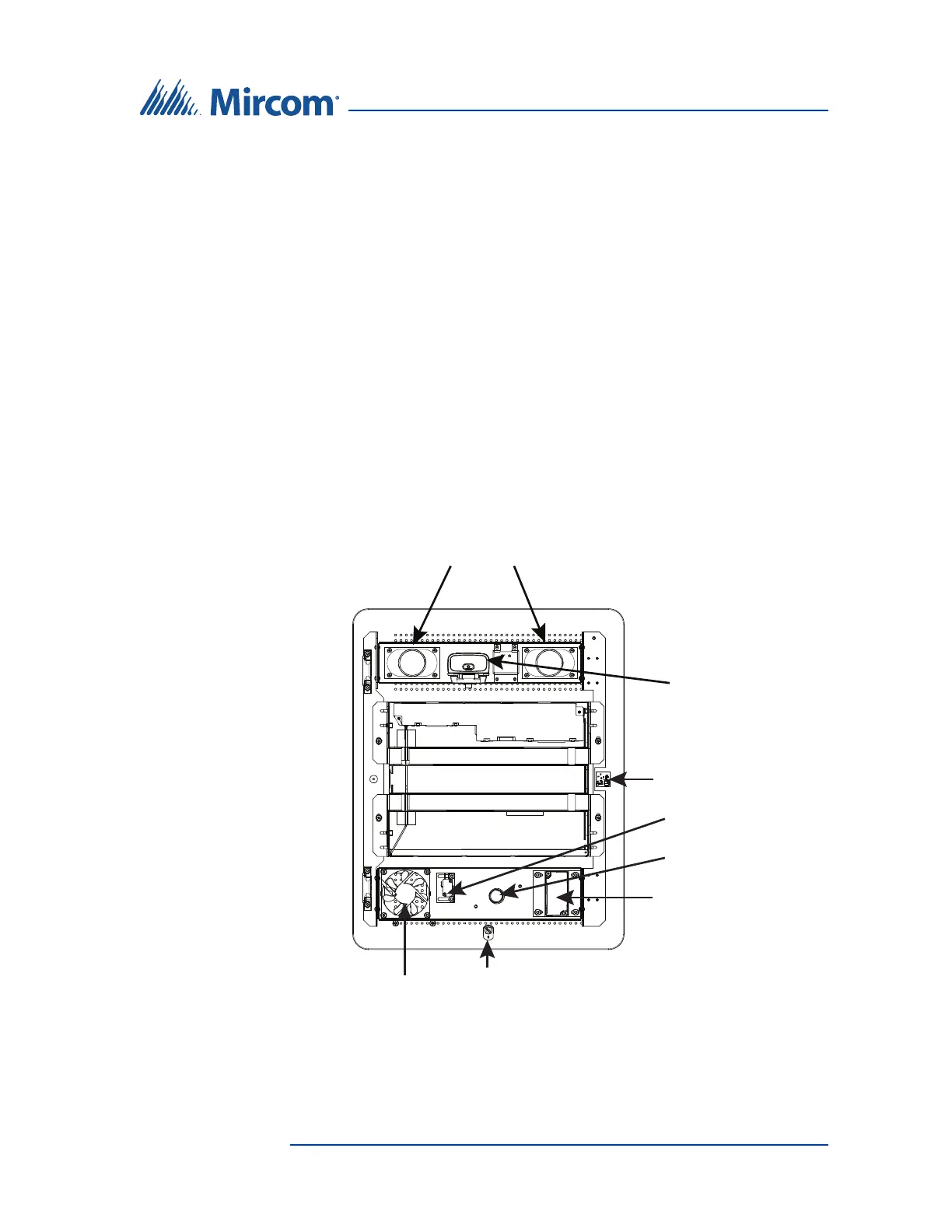

Figure 66. TX3-TOUCH-F15-B/C/D and TX3-TOUCH-S15-B/C/D
inside door
Speakers
Camera
Microphone
Fan
Postal
Lock
P300 Card Reader
Keyhole
Postal
Lock Switch
