Touch Screen System and Setup
TX3 Touch Screen Installation Manual 97
4. Mount the camera on two posts and secure it with the included nuts.

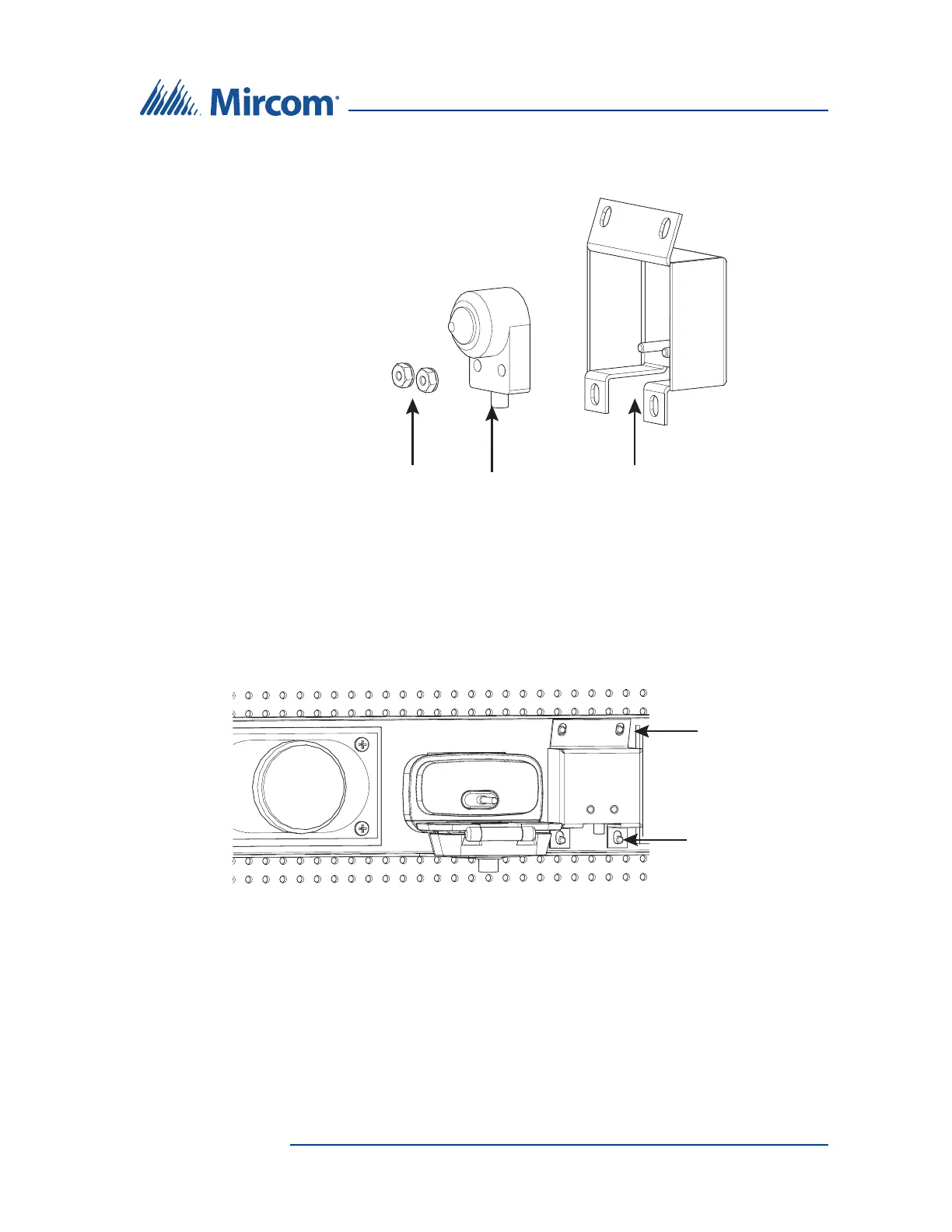

Figure 83. Mounting the IP camera in the bracket
The camera bracket can be mounted in the door in three ways.
Mount the bracket as shown in Figure 84 with the nuts on top so that the
camera faces down.
Mount the bracket as shown in Figure 84 with the nuts on bottom so that
the camera faces straight ahead
Figure 84. Mounting the camera bracket
Nuts IP camera Bracket
Put nuts here to
face the camera
straight ahead
Put nuts here to
face the camera
downwards
