Mircom TX3 Series - Figure 12 TX3-TOUCH-S15-B;C;D Dimensions; Figure 13 TX3-TOUCH-S15-B;C;D Mounting Hole and Knockout Dimensions

Installation
TX3 Touch Screen Installation Manual 31

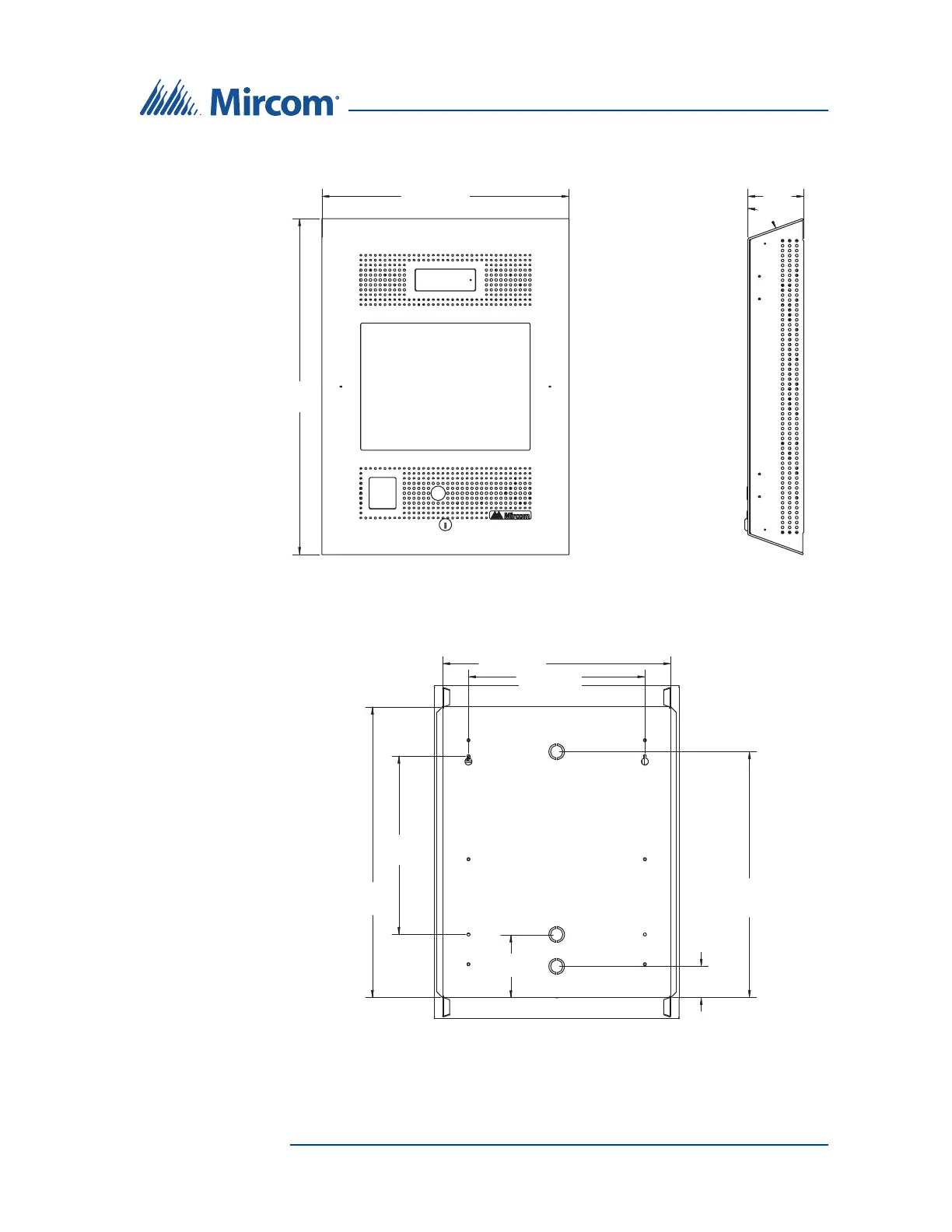

Figure 12. TX3-TOUCH-S15-B/C/D dimensions
Figure 13. TX3-TOUCH-S15-B/C/D mounting hole and knockout
dimensions
23 51/64”
(604 mm)
3 31/32”
(101 mm)
70.00°
17 1/2”
(445 mm)
16 19⁄64”
(414 mm)
12 19⁄32”
(320 mm)
12 3/4”
(324 mm)
20 3/4”
(527 mm)
17 9⁄16”
(446 mm)
2 7/32”
(57 mm)
4 1/2”
(114 mm)
