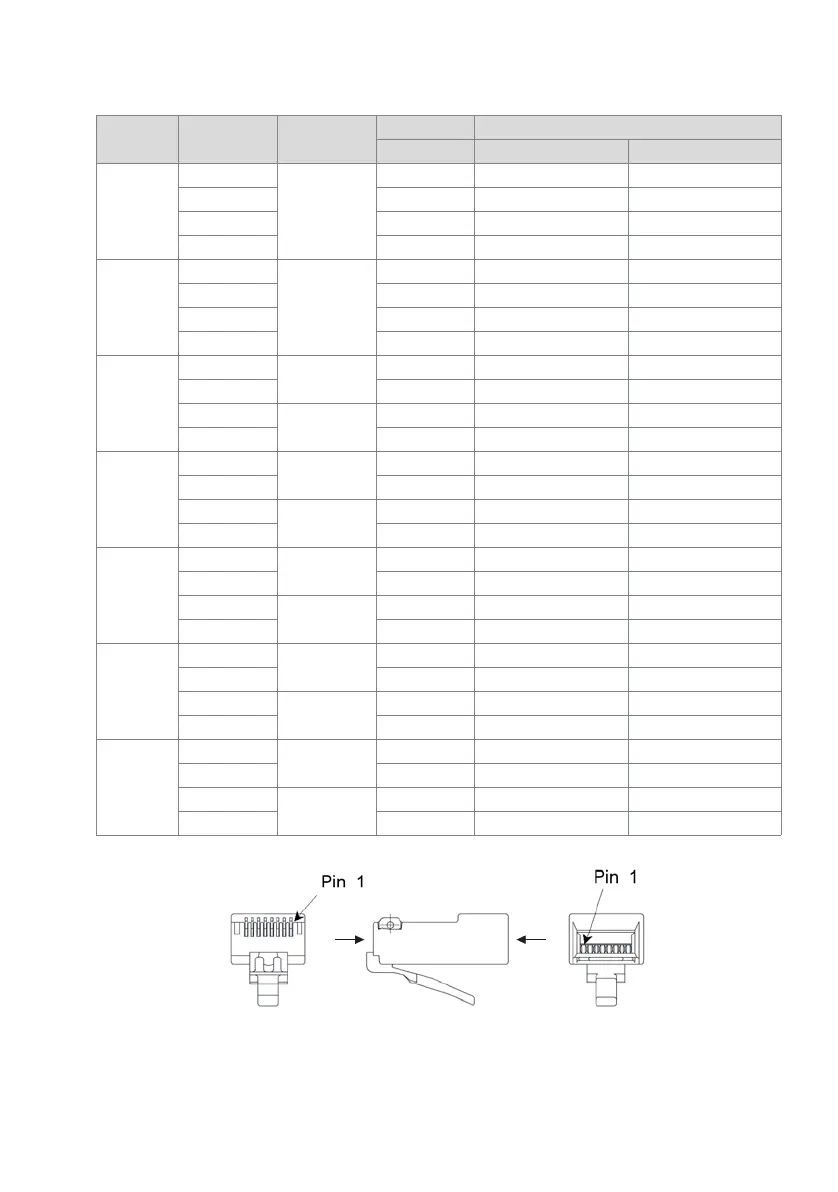

Tab. 43 Schematic diagram of prefabricated system cable 12 × RJ45
Fig. 31 Pin numbering, RJ45 connector
Stranded
element
Core colour
Cable desig-
nation
RJ45 Signal
Pin Connection four-wire Two-wire connection
1white 1 4 f a
blue 5 e b
turquoise 6 d –
violet 3 c –
2white 2 4 f a
orange 5 e b
turquoise 6 d –
violet 3 c –
3white 3 4 – a
green 5 – b
turquoise 4 4 – a
violet 5 – b
4white 5 4 – a
brown 5 – b
turquoise 6. 4 – a
violet 5 – b
5white 7 4 – a
grey 5 – b
turquoise 8 4 – a
violet 5 – b
6 red 9. 4 – a
blue 5 – b
turquoise 10 4 – a
violet 5 – b
7red 11 4 – a
orange 5 – b
turquoise 12 4 – a
violet 5 – b
A
B
View BView A
