Connection

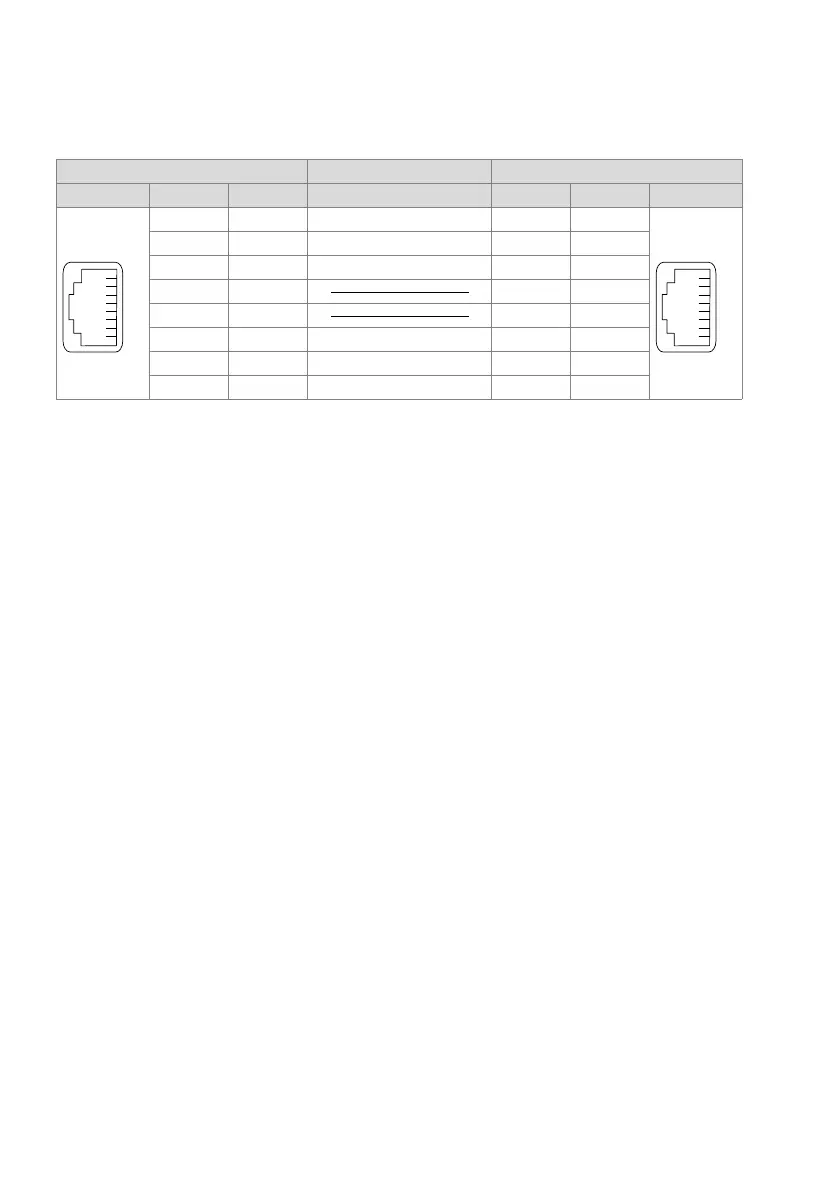

Tab. 57 Connection of individually assigned DSI terminal interface
Communication server Cable cores Connection socket
Socket Pin DSI signal DSI signal Pin Socket
1– –1
2– –2
3– –3
4a a4
5b b5
6– –6
7– –7
8– –8
















