Mitel 470 - Page 99

Installation
99
Mitel 470 as of R4.1
syd-0585/1.2 – R4.1 – 08.2016

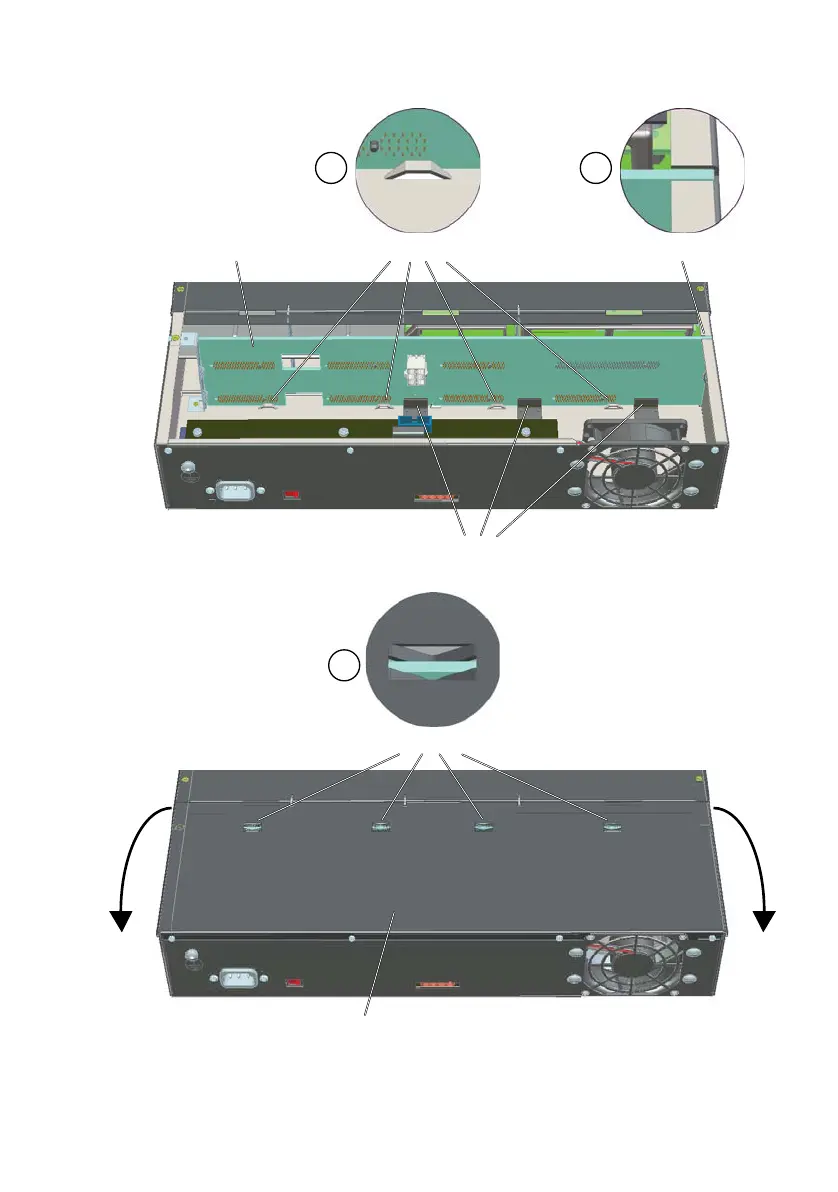

Fig. 20 Correct sitting of backplane BP2U
1 2
3
3 fastening brackets with contact springs
4 bottom guide slots
4 top guide slots
Backplane (BP2U)
Must be ush
Upper rear housing cover
