Mitsubishi FX1N Series Programming Manual

FX Series Programmable Controllers Devices in Detail 4
4-46
4.15.3 Summary Of The Scientific Notation and Floating Point Numbers

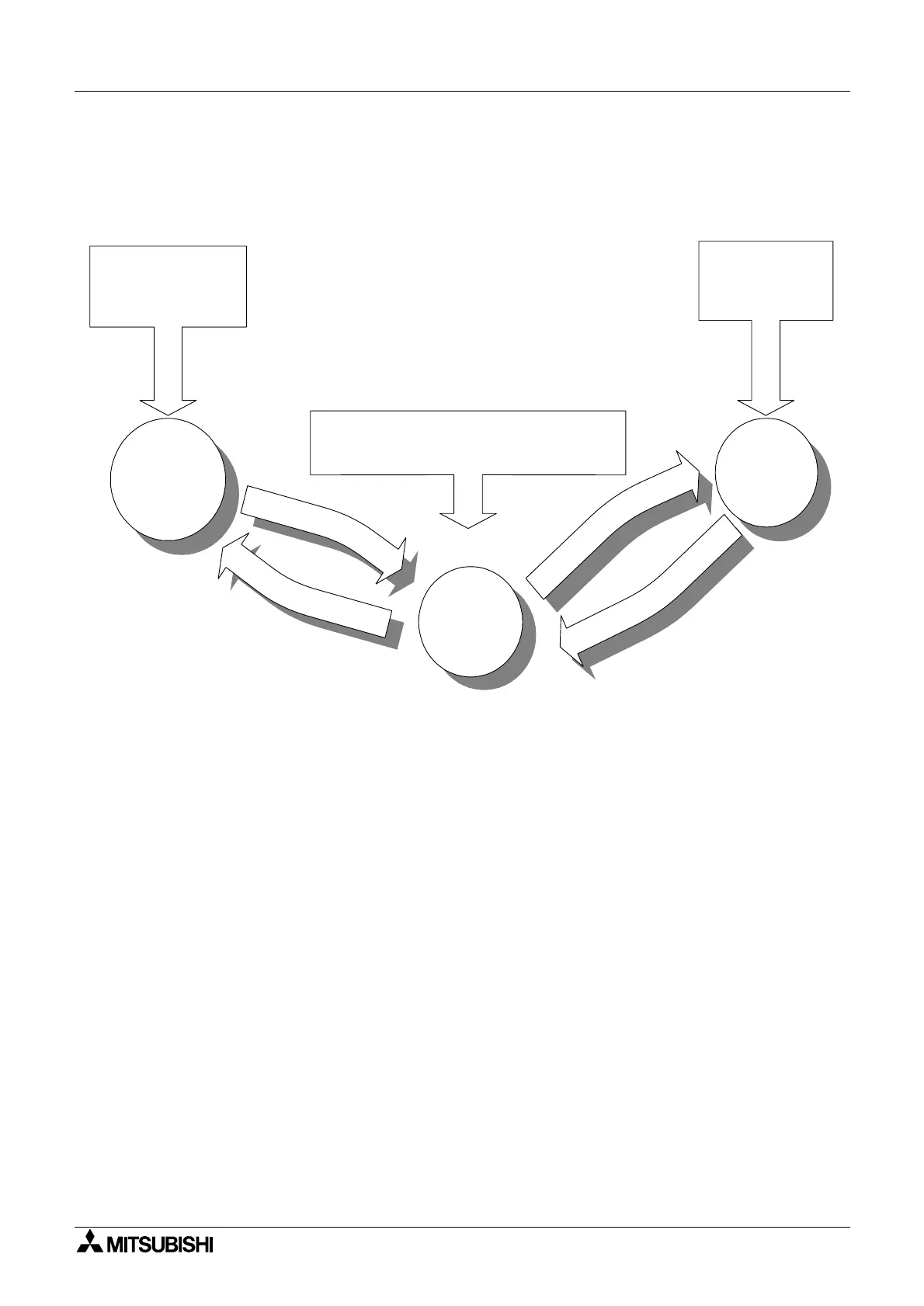

The instruction needed to convert between each number format are shown below in a
diagrammatically format for quick and easy reference.
(16 or 32 bit)
Integers
(Data registers)
INT (FNC 129)
Floating Point
Numbers
´
(1 32 bit)
EBCD (FNC 118)
EBIN (FNC 119)
´
Scientific
Notation
(2 16 bit)
View as either integer of
hexadecimal
Perform all mathematical
operations as normal
(M8023 OFF)
Use to view the
mantissa and
exponent of a floating
point number as
integer values
Perform all mathematical operations using the special
floating point instructions using double word format
(DEADD, DESUB, DEMUL, DEDIV, DESQR, etc.)
FLT (FNC 49)

Mitsubishi FX1N Series Specifications

General

Programming Language	Ladder Logic
Output Type	Relay, Transistor
Operating Temperature	0 to 55°C
Power Supply	100-240V AC or 24V DC
Program Capacity	8K steps
Communication Ports	RS-422
Data Memory	8000 words
High-speed Counters	Up to 6 channels
Expansion Modules	Available
Pulse Output	2 points
