Mitsubishi FX1N Series Programming Manual

FX Series Programmable Controlers Applied Instructions 5
5-220

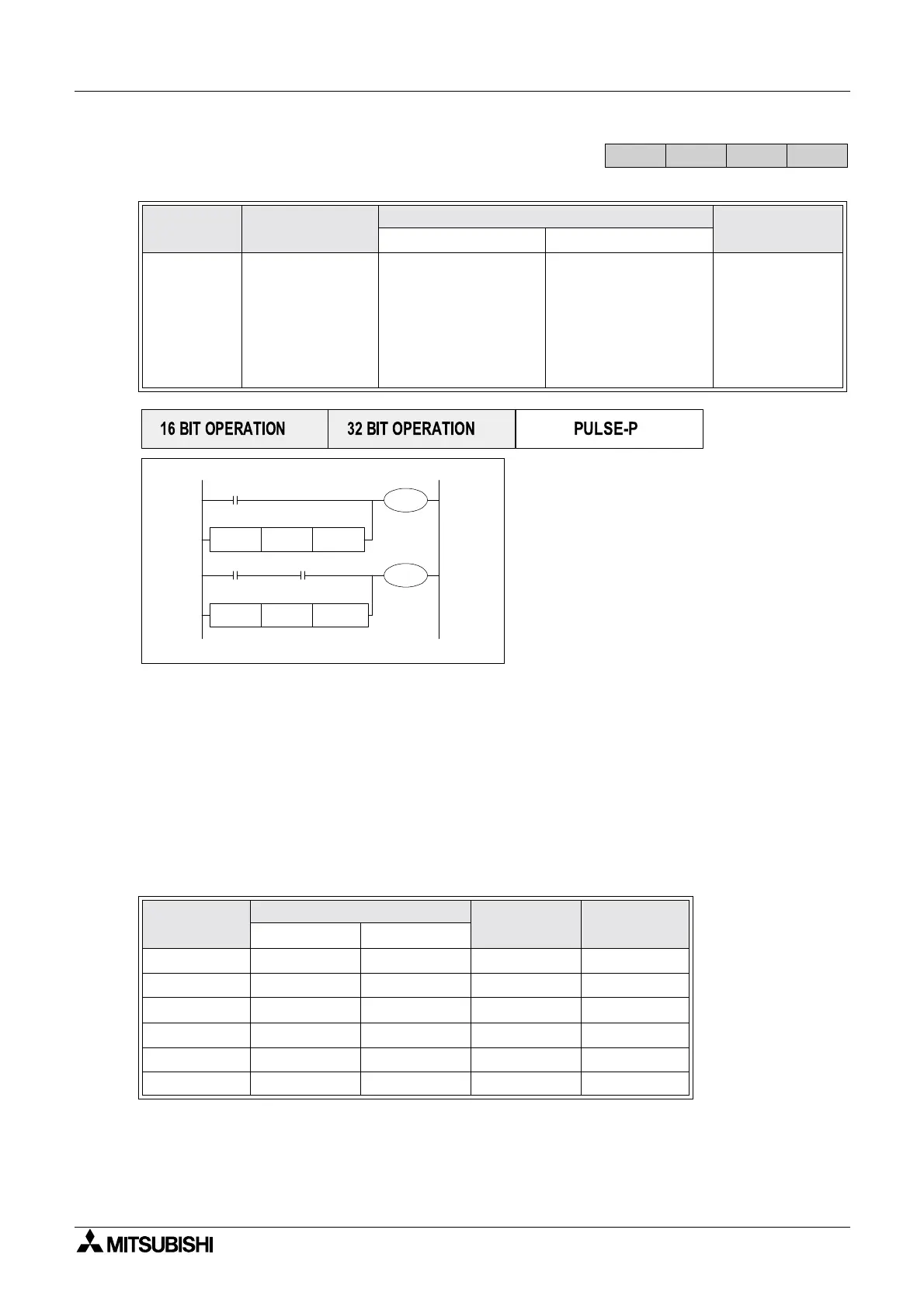

5.17.3 OR compare
(FNC 240 to 246)
Operation:
The value of S
1 and S2 are tested according to the comparison of the instruction. If the
comparison is true then the OR contact is active. If the comparison is false then the OR contact
is not active.
Points to note:
The OR comparison functions can be placed anywhere in a program that a standard OR
instruction can be placed. i.e., it is a parallel connection contact.
(See page 2-7 for OR instruction)
Mnemonic Function
Operands
Program steps
SD
ORr
(OR
compare)
where r
is =, >, <,
<>, ≤, ≥
Parallel
comparison
contact.
Active when the
comparison
S1 r S2 is true.
K,H, KnX, KnY, KnM,
KnS, T, C, D, V, Z
K,H, KnX, KnY, KnM,
KnS, T, C, D, V, Z
ORr:
5steps
DORr:
9steps
FNC No.
Mnemonic
Active
when
Inactive
when
16 bit 32 bit
240 OR = DOR = S
1 =S2 S1 ≠ S2
241 OR > DOR > S1 >S2 S1 ≤ S2
242 OR < DOR < S1 <S2 S1 ≥ S2
244 OR <> DOR <> S1 ≠ S2 S1 =S2
245 OR ≤ DOR ≤ S1 ≤ S2 S1 >S2
246 OR ≥ DOR ≥ S1 ≥ S2 S1 <S2
FX 1S
FX1N FX2N
FX2NC
X001
K200 C10OR =
Y000
X002
M30
M60
[ S1 ]
[ S2 ]
D100
K100000
OR£
PULSE-P 16 BIT OPERATION 32 BIT OPERATION
