Mitsubishi FX1N Series Programming Manual

Devices in Detail 4
4-1
4. Devices in Detail
4.1 Inputs
Device Mnemonic: X
Purpose: Representation of physical inputs to the programmable controller (PLC)
Alias: I/P
Inp
(X) Input
Input contact
Available forms: NO () and NC () contacts only
(see example device usage for references)
Devices numbered in: Octal, i.e. X0 to X7, X10 to X17
Further uses: None

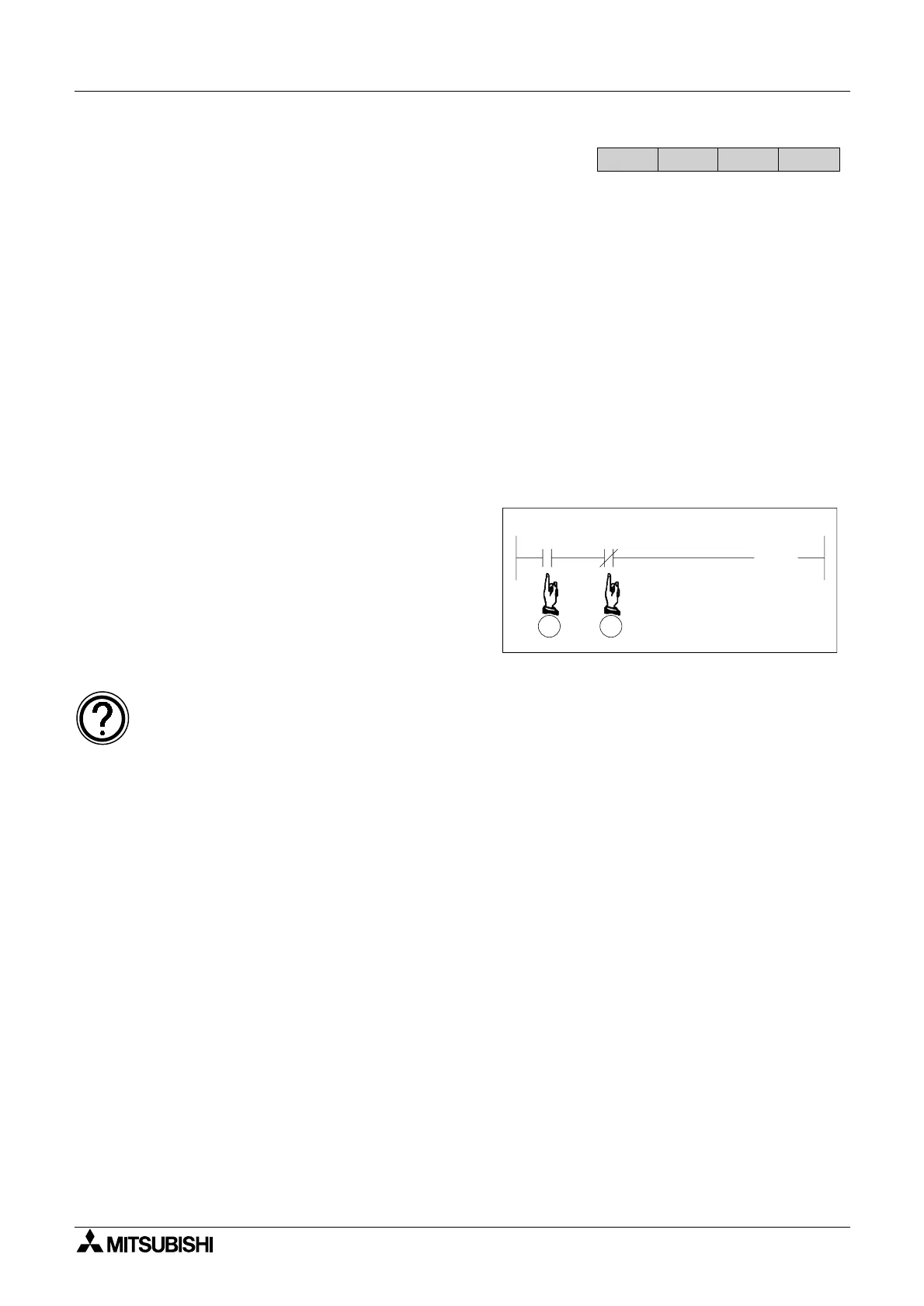

Example device usage:
FX 1S
FX1N FX2N
FX2NC
X0
X1
Y10
21
Available devices:
• Please see the information point on page 4-2, Outputs. Alternatively refer to the
relevant tables for the selected PLC in chapter 8.
Configuration details:
• Please see chapter 9
FX Series Programmable Controllers

Mitsubishi FX1N Series Specifications

General

Programming Language	Ladder Logic
Output Type	Relay, Transistor
Operating Temperature	0 to 55°C
Power Supply	100-240V AC or 24V DC
Program Capacity	8K steps
Communication Ports	RS-422
Data Memory	8000 words
High-speed Counters	Up to 6 channels
Expansion Modules	Available
Pulse Output	2 points
