Mitsubishi FX1N Series Programming Manual

FX Series Programmable Controlers Applied Instructions 5
5-125

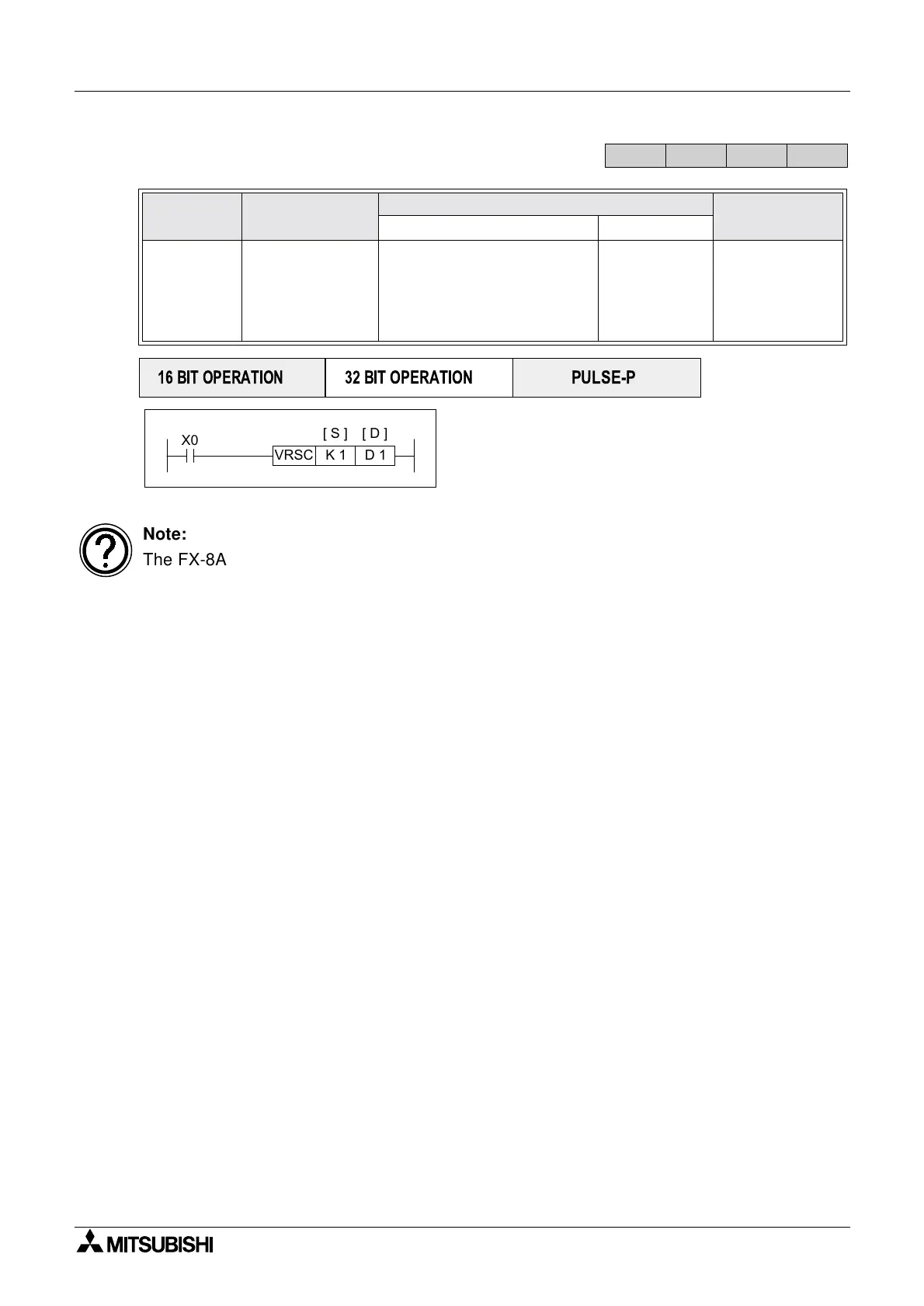

5.9.7 VRSD (FNC 86)
Operation:
The identified volume (S) on the FX-8AV is read as
a rotary switch with 11 set positions (0 to 10). The
position data is stored at device D as an integer
from the range 0 to 10.
Mnemonic Function
Operands
Program steps
SD
VRSC
FNC 86
(Volume
scale)
Reads the set
position value, 0
to 10, from
volume inputs on
the FX-8AV
K, H
Note:
S= 0 to 7
corresponding to the 8 avail-
able
volumes on the FX-8AV
KnY, KnM, KnS
T, C, D, V, Z
VRSC,
VRSCP:
5steps
FX 1S
FX 1N FX 2N
FX 2NC
PULSE-P 16 BIT OPERATION 32 BIT OPERATION
[ S ] [ D ]
X0
VRSC K 1 D 1
Note:
The FX-8AV volume ‘inputs’ areabletobereadintwoformats,a)asa11(0to10)position
rotary switch and b) as an analog value. The second use is described in the
VRRD
instruction (FNC 85).

Mitsubishi FX1N Series Specifications

General

Programming Language	Ladder Logic
Output Type	Relay, Transistor
Operating Temperature	0 to 55°C
Power Supply	100-240V AC or 24V DC
Program Capacity	8K steps
Communication Ports	RS-422
Data Memory	8000 words
High-speed Counters	Up to 6 channels
Expansion Modules	Available
Pulse Output	2 points
