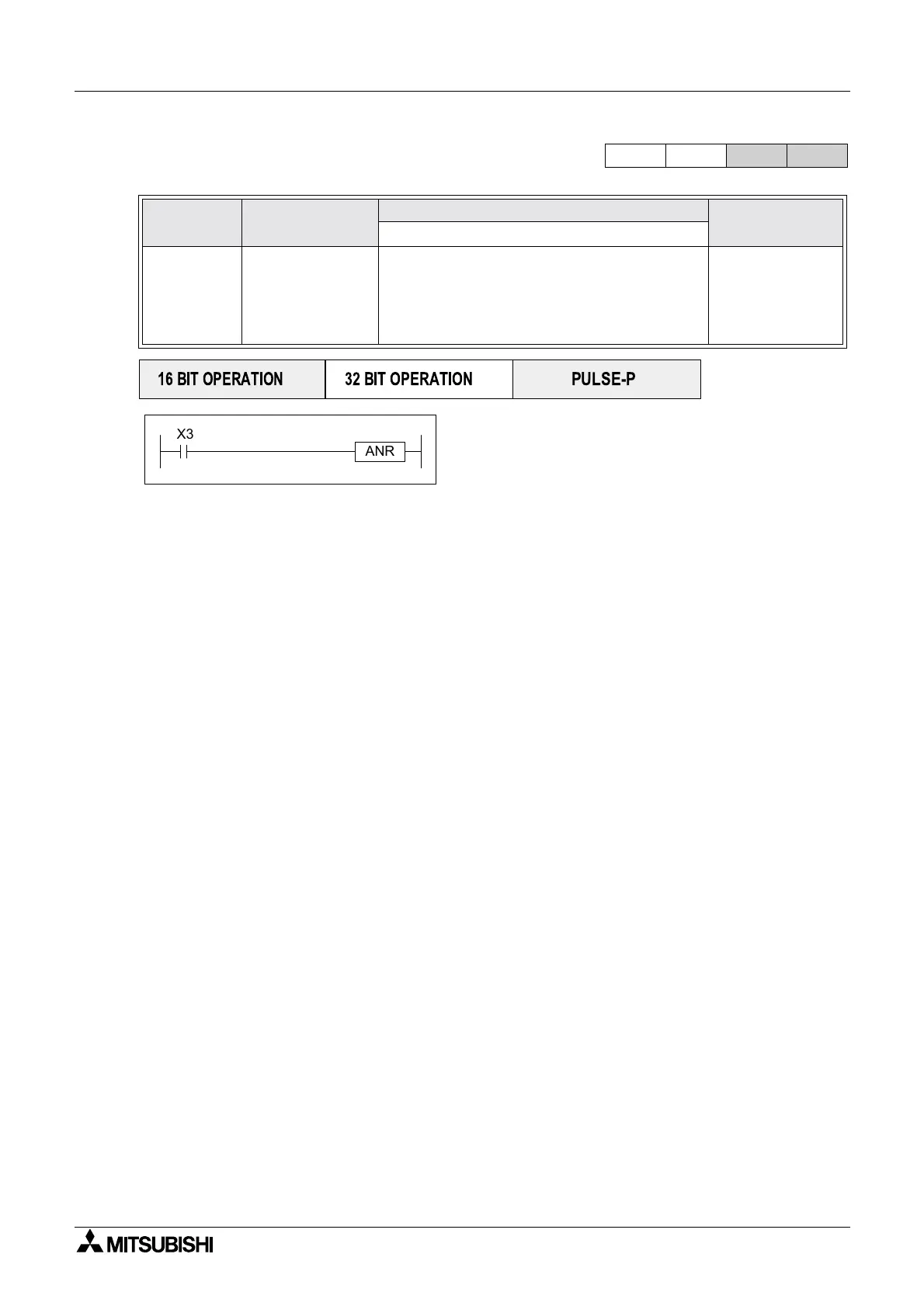

FX Series Programmable Controlers Applied Instructions 5
5-62
5.5.8 ANR (FNC 47)
Operation:
Annunciators which have been activated are
sequentially reset one-by-one, each time the ANR
instruction is operated.
If the ANR instruction is driven continuously it will carry out its resetting operation on every
program scan unless it is modified by the pulse, P prefix or by a user defined program
interlock.
Mnemonic Function
Operands Program steps
D
ANR
FNC 47
(
Annunciator
reset)
The lowest active
annunciator is
reset on every
operation of this
instruction
N/A
ANR,ANRP:
1step
FX
1S
FX
1N
FX
2N
FX
2NC
PULSE-P
16 BIT OPERATION
32 BIT OPERATION
X3
ANR
