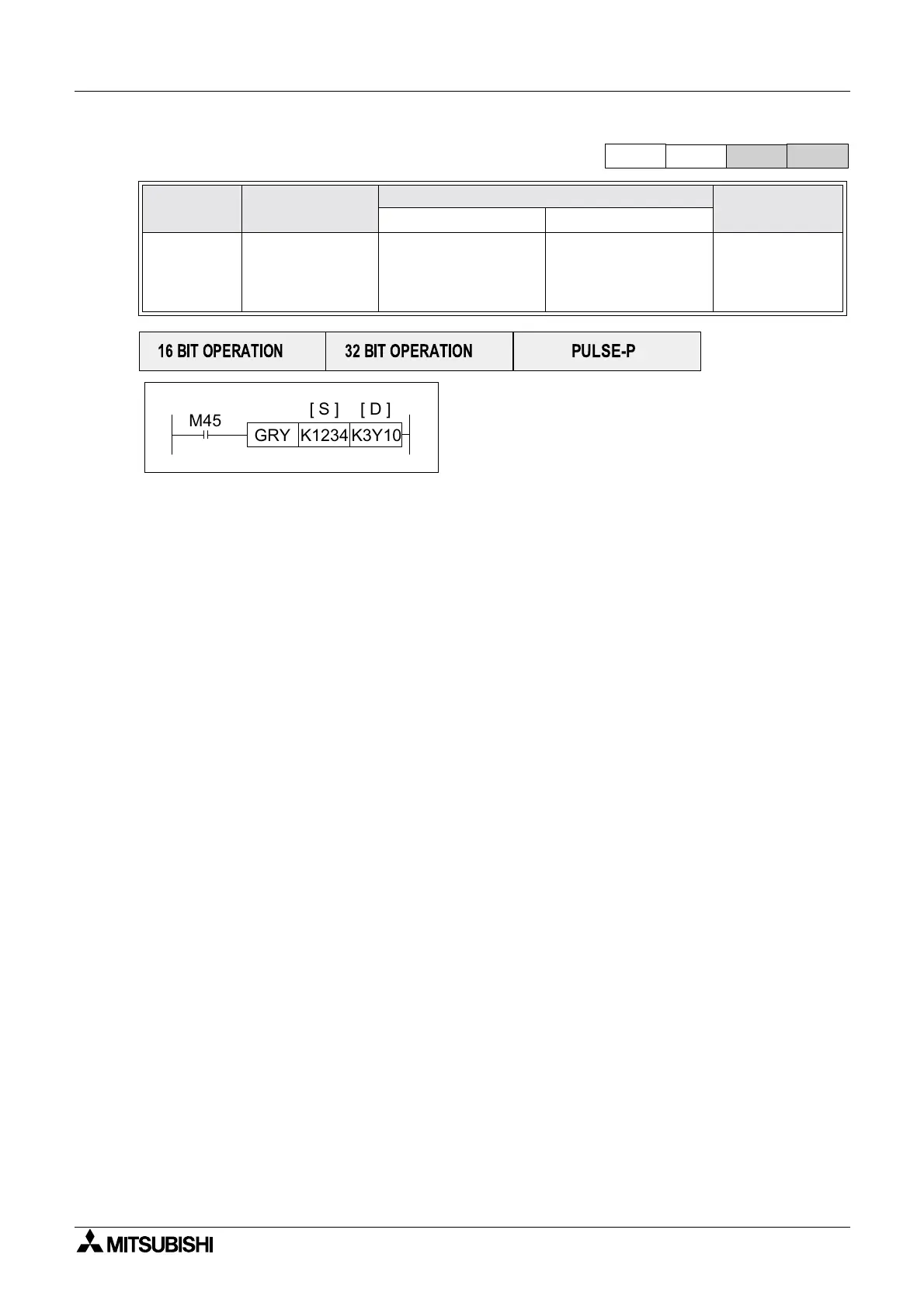

Mitsubishi FX1N Series Programming Manual

FX Series Programmable Controlers Applied Instructions 5
5-185
5.15.1 GRY (FNC 170)
Operation:
The binary integer value in S is converted to the
GRAY CODE equivalent and stored at D.
Points to Note:
The nature of gray code numbers allows numeric values to be quickly output without the need
for a strobing signal. For example, if the source data is continually incremented, the new output
data can be set each program scan.
Mnemonic Function
Operands
Program steps
SD
GRY
FNC 170
(Gray
Code)
Calculates the
gray code value
of an integer
K, H,
KnX, KnY, KnM, KnS,
T, C, D, V, Z
KnY, KnM, KnS,
T, C, D, V, Z
GRY,GRYP:
5steps
DGRY,DGRYP
9steps
FX 1S
FX 1N FX 2N
FX 2NC
PULSE-P 16 BIT OPERATION 32 BIT OPERATION
M45
K1234 K3Y10GRY
[ S ] [ D ]

Mitsubishi FX1N Series Specifications

General

Programming Language	Ladder Logic
Output Type	Relay, Transistor
Operating Temperature	0 to 55°C
Power Supply	100-240V AC or 24V DC
Program Capacity	8K steps
Communication Ports	RS-422
Data Memory	8000 words
High-speed Counters	Up to 6 channels
Expansion Modules	Available
Pulse Output	2 points
