Mitsubishi FX1N Series Programming Manual

FX Series Programmable Controlers Applied Instructions 5
5-214

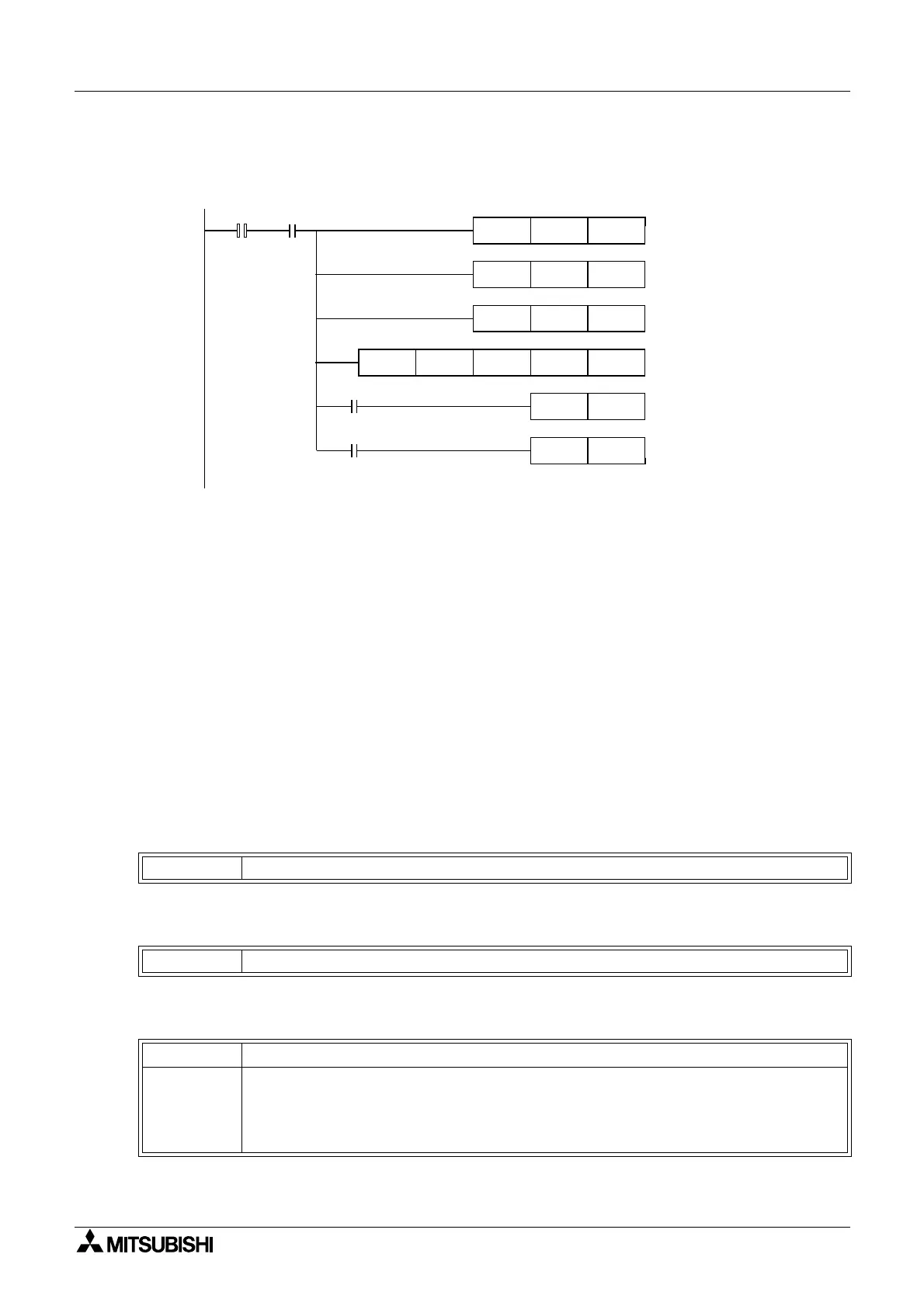

5.16.1.1.16 Example program 5
Example using the STL instruction
a) Specifies station No. 2
b) Instruction code for operation command
c) Forward rotation command
d) Transmits/receives a command to/from the inverter.
e) Changes to the ‘error processing’ state as an error has occurred.
f) Changes to the ‘next’ state as receive is normally finished.
g) Receive is abnormally finished.
h) Receive is complete.
5.16.1.1.17 Related Error Code Lists
PLC hardware error code list (M8061, D8061)
Grammar error code list (M8065, D8065)
Operation error code list (M8067, D8067)
K6110
There is an abnormality in the extension ROM cassette.
K6512 The FNC 180 is described while the extension ROM cassette is not mounted.
K6760 The sum of the value read by the ABS instruction does not match.
K6761 When FNC185 was executed, the extension memory cassette was not
mounted.
Or, the firmware of the function No. specified by the first parameter does not
exist in the extension memory cassette.
M8000
MOV K2 D100
MOV HFA D101
MOV H02 D102
EXTR K12 D100 D101 D102
SET S900
SET S21
M8156
M8029
S20
h)
a)
f)
e)
d)
c)
b)
g)

Mitsubishi FX1N Series Specifications

General

Programming Language	Ladder Logic
Output Type	Relay, Transistor
Operating Temperature	0 to 55°C
Power Supply	100-240V AC or 24V DC
Program Capacity	8K steps
Communication Ports	RS-422
Data Memory	8000 words
High-speed Counters	Up to 6 channels
Expansion Modules	Available
Pulse Output	2 points
