FX3UC Series Programmable Controllers
User’s Manual - Hardware Edition
7 Examples of Wiring for Various Uses
7.6 Hexadecimal Input [HKY (FNC 71)]
2. Main unit + Output extension block
Example of program

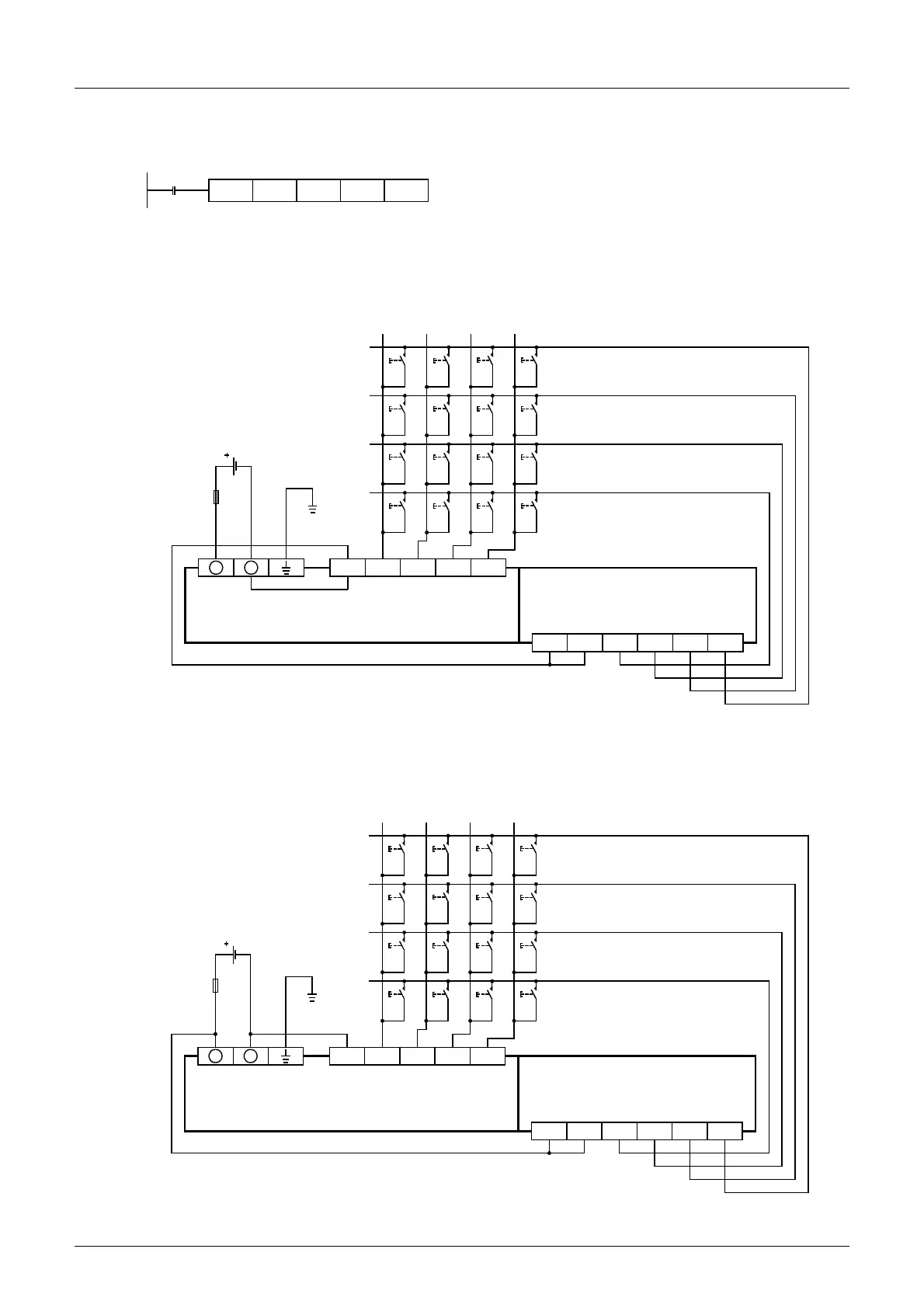

Example of wiring
1) In the case of sink wiring
Use the sink only input, sink only output type main unit and a transistor output (sink only output) type
output extension block. The wiring example is the [FX
3UC-32MT/D or FX3UC-32MT-LT] + output
extension block [FX
2NC-16EYT].
2) In the case of source wiring
Use the sink/source common input, source only output type main unit and a transistor output (source only
output) type output extension block. The wiring example is the [FX
3UC-32MT/DSS] + output extension
block [FX
2NC-16EYT-DSS].
HKY
M8000
X010 Y020 D100 M0
COM X010 X011 X012 X013
0 1 23
4567
89AB
C DEF
External wiring
Sink input
FX
3UC
-32MT/D
FX
3UC
-32MT-LT
Fuse
24V DC
Class D
grounding*
COM1
Y020 Y021 Y022 Y023
Transistor output (sink)
COM1
FX
2NC
-16EYT
* The grounding resistance should be 100
Ω
or less.
+
-
COM0
X010 X011 X012 X013
0 1 23
4567
89AB
C DEF
External wiring
Source input
FX
3UC
-32MT/DSS
Fuse
24V DC
Class D
grounding*
+V0 Y020 Y021 Y022 Y023
Transistor output (source)
+V0
FX
2NC
-16EYT-DSS
* The grounding resistance should be 100
Ω
or less.
+
-
To Next Page
