2 External Dimensions and Terminal Arrangement
2.1 External Dimensions (MASS/Installation/Accessories)
1
Outline
2
External Dimensions
3
Generic Specifications
4
Power Supply Specifications
5
Input Specifications
6
Output Specifications
7
Examples of Wiring for Various Uses
8
Terminal Block
9
CC-Link/LT Master FX
3UC
(LT only)
10
Display module FX
3UC
(LT only)

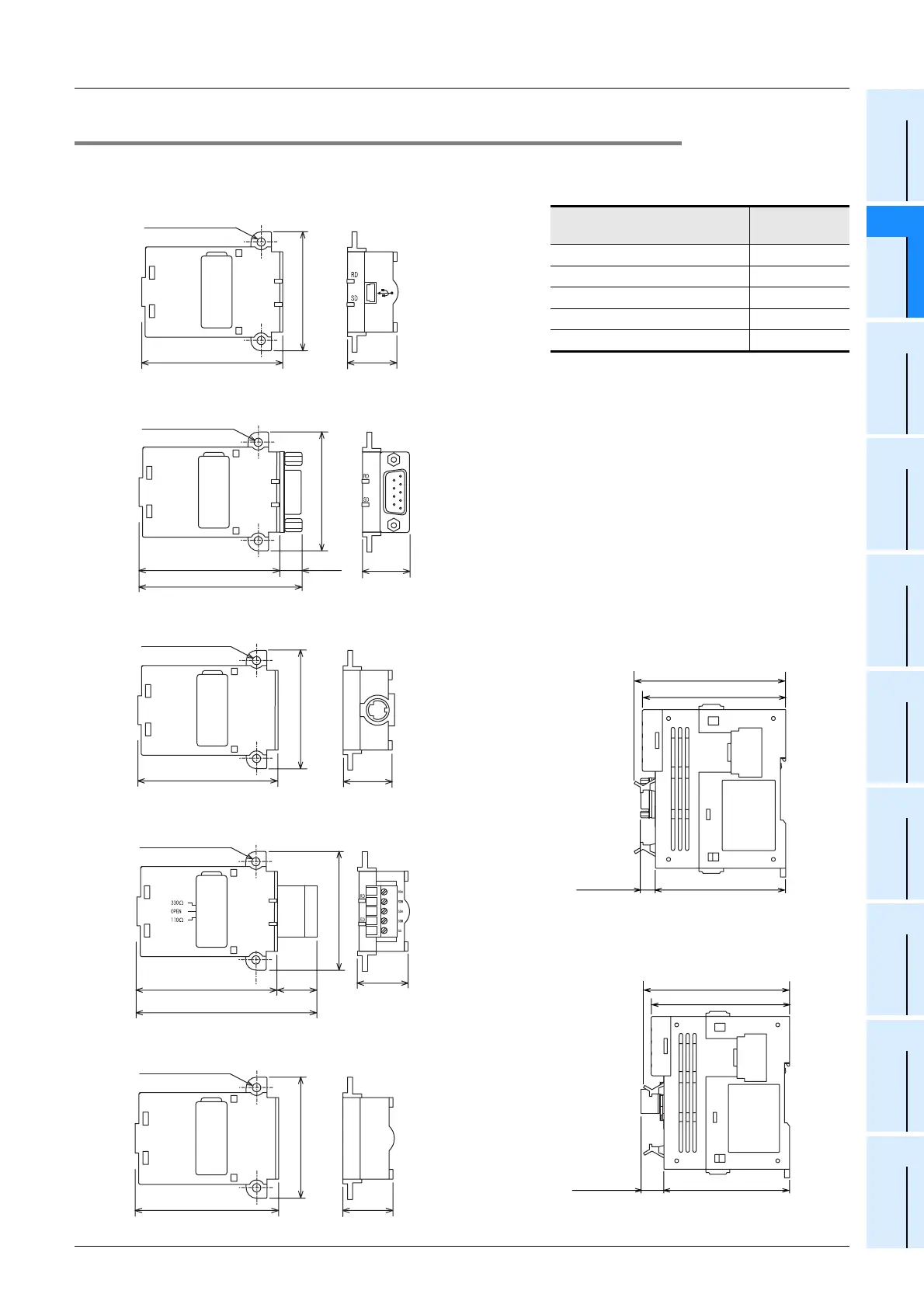

2.1.6 Expansion boards
Expansion boards can only be used with the FX3UC-32MT-LT.
FX
3U-USB-BD
• Accessories: All models
Two M3 tapping screws (for
installation of board),
Manual supplied with
product
Only in FX
3U-485-BD
Label for indication of link
station number
Only in FX
3U-USB-BD
USB driver software
(CD-ROM)
USB cable (3m(9’10"))
*1.The FX
3U-232-BD RS-232C connector is
D-SUB 9Pin (male).
It is shown as follows when attached to
the FX
3UC-32MT-LT.
*2.The FX
3U-485-BD is European type.
It is shown as follows when attached to
the FX
3UC-32MT-LT.
Model name
MASS
(Weight)
FX
3U-USB-BD 20(0.05lbs)
FX
3U-232-BD 20(0.05lbs)
FX
3U-422-BD 20(0.05lbs)
FX
3U-485-BD 20(0.05lbs)
FX
3U-CNV-BD 10(0.03lbs)
53.5(2.11")
46.1(1.82")
Unit:mm (inches)
19.6
(0.78")
2-φ3.2
mounting holes
53.5(2.11")
62.7(2.47")
46.1(1.82")
Unit:mm (inches)
19.3
(0.76")
9.2
(0.37")
2-φ3.2
mounting holes
*1
53.5(2.11")
46.1(1.82")
Unit:mm (inches)
19.6
(0.78")
2-φ3.2
mounting holes
53.5(2.11") 15.5
(0.62")
69.0(2.72")
46.1(1.82")
Unit:mm (inches)
19.6
(0.78")
2-φ3.2
mounting holes
*2
53.5(2.11")
46.1(1.82")
Unit:mm (inches)
19.6
(0.78")
2-φ3.2
mounting holes
FX3U-485-BD
FX
3U-CNV-BD
FX
3U-232-BD
FX
3U-422-BD
87(3.43")
83(3.27")
74(2.92")
9.2(0.37")
Unit:mm (inches)
87(3.43")
83(3.27")
74(2.92")
15.5(0.62")
Unit:mm (inches)
