Mitsubishi FX3UC Series User Manual

281
FX3UC Series Programmable Controllers
User’s Manual - Hardware Edition
9 CC-Link/LT Built-in master ability (Only FX3UC-32MT-LT)
9.9 Setting of CC-Link/LT built-in master and remote I/O units
1
Outline
2
External Dimensions
3
Generic Specifications
4
Power Supply Specifications
5
Input Specifications
6
Output Specifications
7
Examples of Wiring for Various Uses
8
Terminal Block
9
CC-Link/LT Master FX
3UC
(LT only)
10
Display module FX
3UC
(LT only)

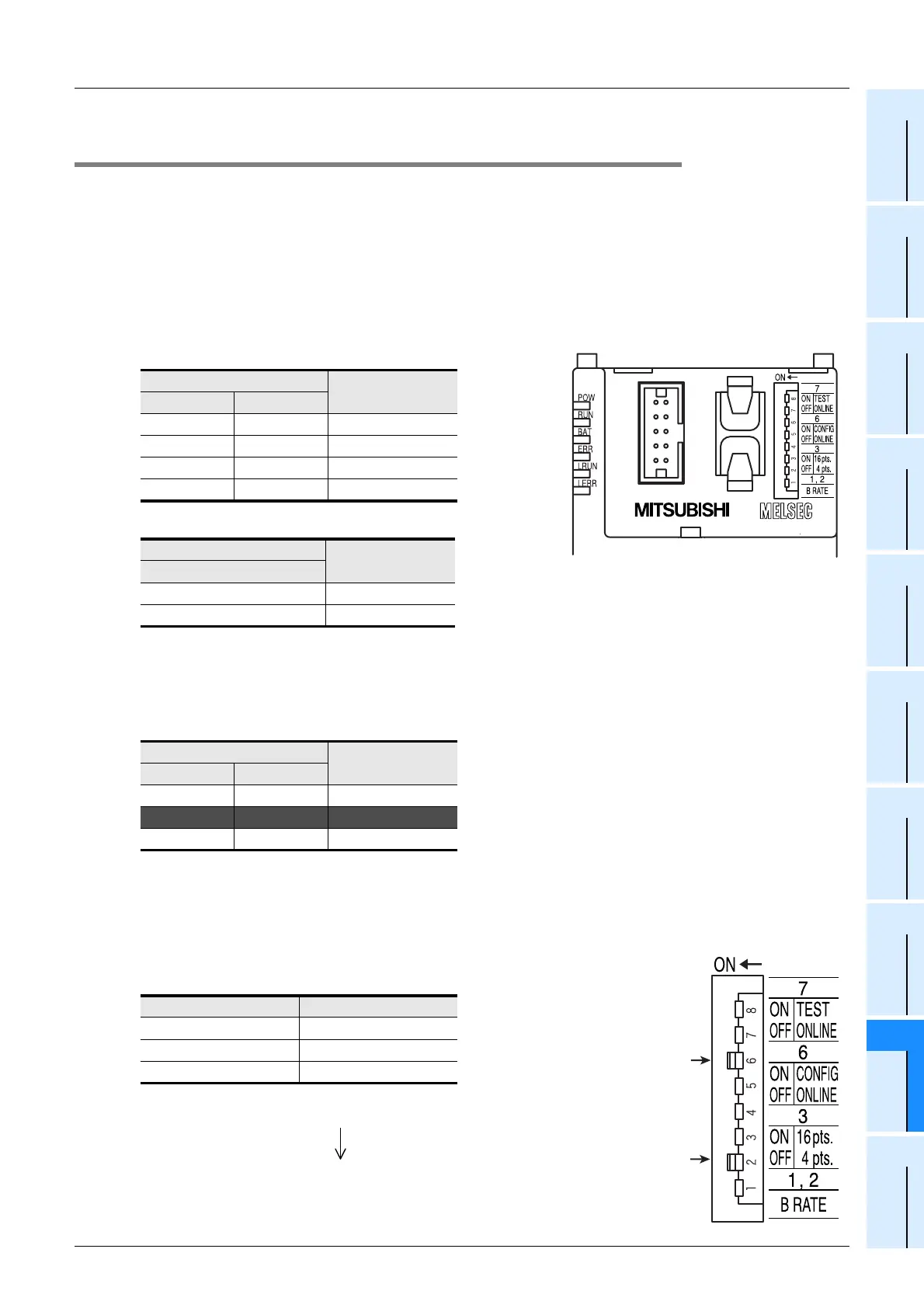

9.9.1 Setting DIP switches in built-in master (operation mode/Communication speed/
Point mode)
1 Turn the power OFF
2 Remove the display module of the FX3UC-32MT-LT.
→ For the display module removal method, refer to Section 3.8.
3 Setting the TEST mode Transmission speed and Point mode
B RATE (Transmission speed) setting [DIP switch 1, 2]
16pts/4pts (Point mode) setting [DIP switch 3]
4 Setting the CONFIG mode
Set the operation mode to "CONFIG".
Selecting the Operation mode [DIP switch 6, 7]
[DIP switch 4, 5, 8]
The DIP switches 4, 5 and 8 are unavailable. Make sure to set them to OFF.
1. Setting example of transmission speed (B RATE), point mode (16 pts/4 pts) and operation
mode
Set the DIP switches as shown in the right figure to set the following
status.
Set the station number of remote I/O units in reference to Subsection
9.9.2.
DIP switch status
Setting Content
1 2
OFF OFF 156kbps
ON OFF 625kbps
OFF ON 2.5Mbps
ON ON Prohibited to use
DIP switch status
Setting Content
3
ON 16-point mode
OFF 4-point mode
DIP switch status
Setting Content
6 7
OFF OFF ONLINE mode
ON OFF CONFIG mode
OFF ON TEST mode
Item Setting Content
B RATE 2.5Mbps
16pts/4pts 4-point mode
operation mode CONFIG mode
DIP switch
6 = ON
DIP switch
2 = ON
