FX3UC Series Programmable Controllers
User’s Manual - Hardware Edition
9 CC-Link/LT Built-in master ability (Only FX3UC-32MT-LT)
9.11 Assignment of I/O numbers
1
Outline
2
External Dimensions
3
Generic Specifications
4
Power Supply Specifications
5
Input Specifications
6
Output Specifications
7
Examples of Wiring for Various Uses
8
Terminal Block
9
CC-Link/LT Master FX
3UC
(LT only)
10
Display module FX
3UC
(LT only)

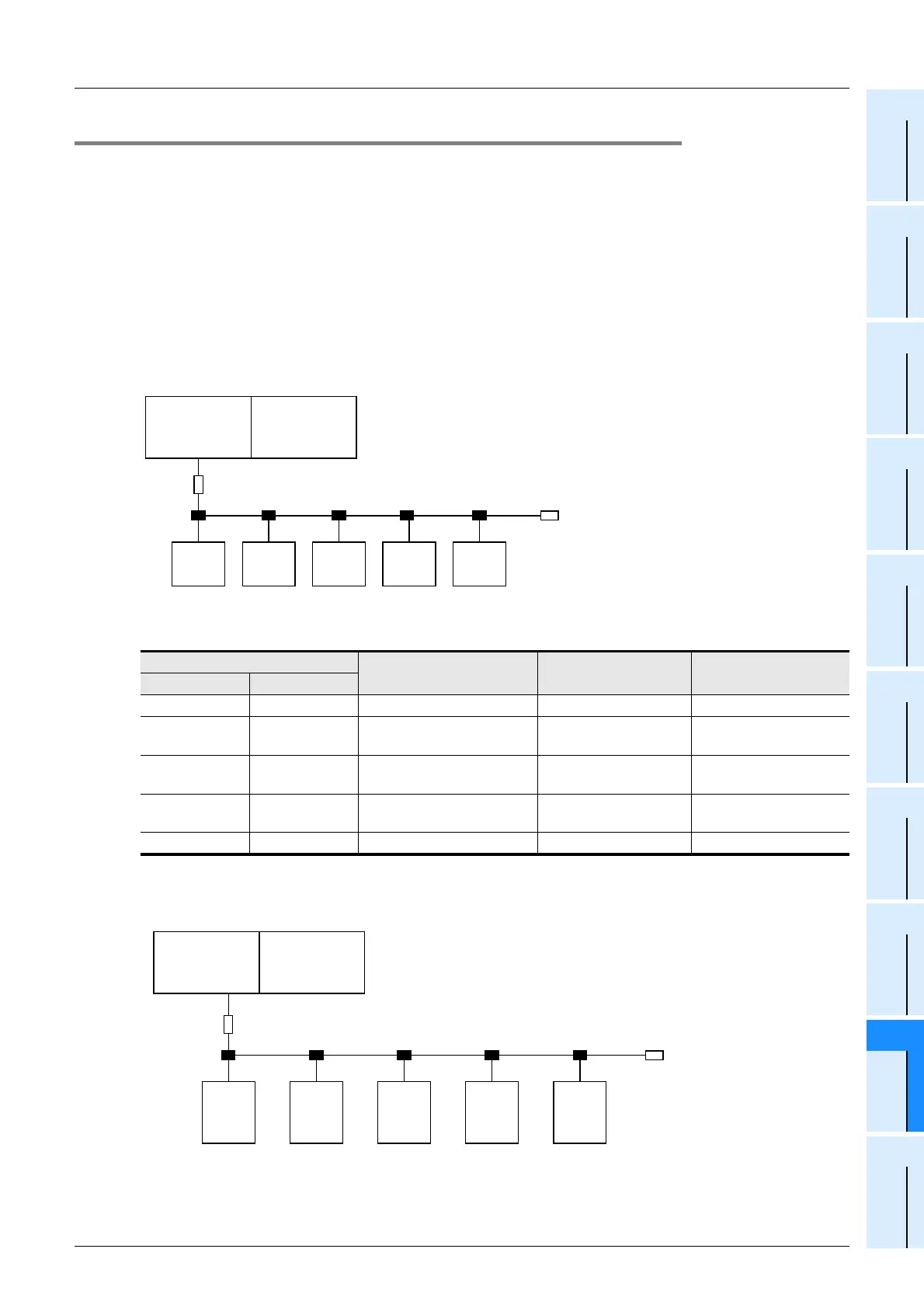

9.11.5 Example in which the point mode setting causes an invalid configuration
1. Configuration
When CL1XY2-DT1D5S (cable type remote I/O unit having 1 input point and 1 output point) x 63 units (station
No.s 1 to 63) and CL2X8-D1B2 (terminal block type remote I/O unit having 8 input points) x 1 unit are
connected
Configuration applicability for each point mode
• In 16-point mode...........The system can be constructed.
• In 4-point mode.............The system cannot be constructed since the CL2X8-D1B2 occupies 2 stations
and the number of remote stations exceeds 64.
2. The example of assignment of the I/O numbers
The I/O number assignment is as follows in the configuration example below.
Set the built-in master to CONFIG mode, and turn ON the power of the PLC. Connected remote stations are
automatically checked, and I/O numbers are assigned to each remote station.
Point mode and Number of stations
Unused numbers in I/O extension
The above I/O numbers are assigned as follows in the configuration example.
Station No.
Number of points
I/O assignment
number (X)
I/O assignment
number (Y)
4-point mode 16-point mode
Station No.1 Station No.1 Input 4points X040 to X043 -
Station No.2 Station No.2
Input 2points/
Output 2points
X044, X045 Y020,Y021
Station
No.3, 4, 5, 6
Station No.3 Input 16points X046 to X065 -
Station No.7 Station No.4
Input 2points/
Output 2points
X066, X067 Y022,Y023
Station No.8 Station No.5 Input 4points X070 to X073 -
FX 3UC -32MT-LT
Built-in master
Input extension
block
FX
2NC -16EX
4 input
points
4 I/O
points
16 input
points
4 I/O
points
4 input
points
Terminating
resistor
Terminating
resistor
FX 3UC -32MT-LT
Built-in master
Input extension
block
FX
2NC -16EX
Station
No.1
4 input
points
Station
No. 2
4 I/O
points
Station
No.3
16 input
points
Station
No. 4
4 I/O
points
Station
No.5
4 input
points
Y000 to Y017
X040 to X043 X044, X045
Y020, Y021
X046 to X065 X066, X067
Y022, Y023
X070 to X073
X000 to X017 X020 to X037
Terminating
resistor
Terminating
resistor
