2 External Dimensions and Terminal Arrangement
2.1 External Dimensions (MASS/Installation/Accessories)
4. Data link and communication functions
FX2N-232IF/FX2N-32CCL/FX2N-64CL-M/FX2N-32ASI-M/FX2N-16LNK-M
• Installation: DIN rail of 35 mm (1.38") in
width or screws
• Accessories: Label for indication of
special unit/block number,
Manual supplied with
product
• The terminal block of FX
2N-32CCL, FX2N-
32ASI-M and FX
2N-16LNK-M is the M3
screw.
• The RS-232C connector of FX
2N-232IF is
D-SUB 9Pin (male).
• The CC-Link/LT interface connector of
FX
2N-64CL-M is in the front panel of the
product.
• The extension cable is already connected to
the extension block
FX
2N-16CCL-M
• Installation: DIN rail of 35 mm (1.38") in
width or screws
• Accessories: Label for indication of
special unit/block number,
Terminal resistor:
2 resistors for standard
cable
2 resistors for high-
performance cable,
Manual supplied with
product
• Terminal block: M3 screw for power supply
terminal
M3.5 screw for signal
terminal
• The extension cable is already connected to
the extension block
Type Model name W(mm)
MASS
(Weight)
A
FX
2N-64CL-M
43
(1.70")
0.15
(0.33lbs)
FX
2N-32CCL
0.2
(0.44lbs)
FX
2N-16LNK-M
0.5
(1.10lbs)
B
FX
2N-32ASI-M
55
(2.17")
0.2
(0.44lbs)
FX
2N-232IF
0.3
(0.66lbs)
Model name W(mm)
MASS
(Weight)
FX
2N-16CCL-M
85
(3.35")
0.4
(0.88lbs)

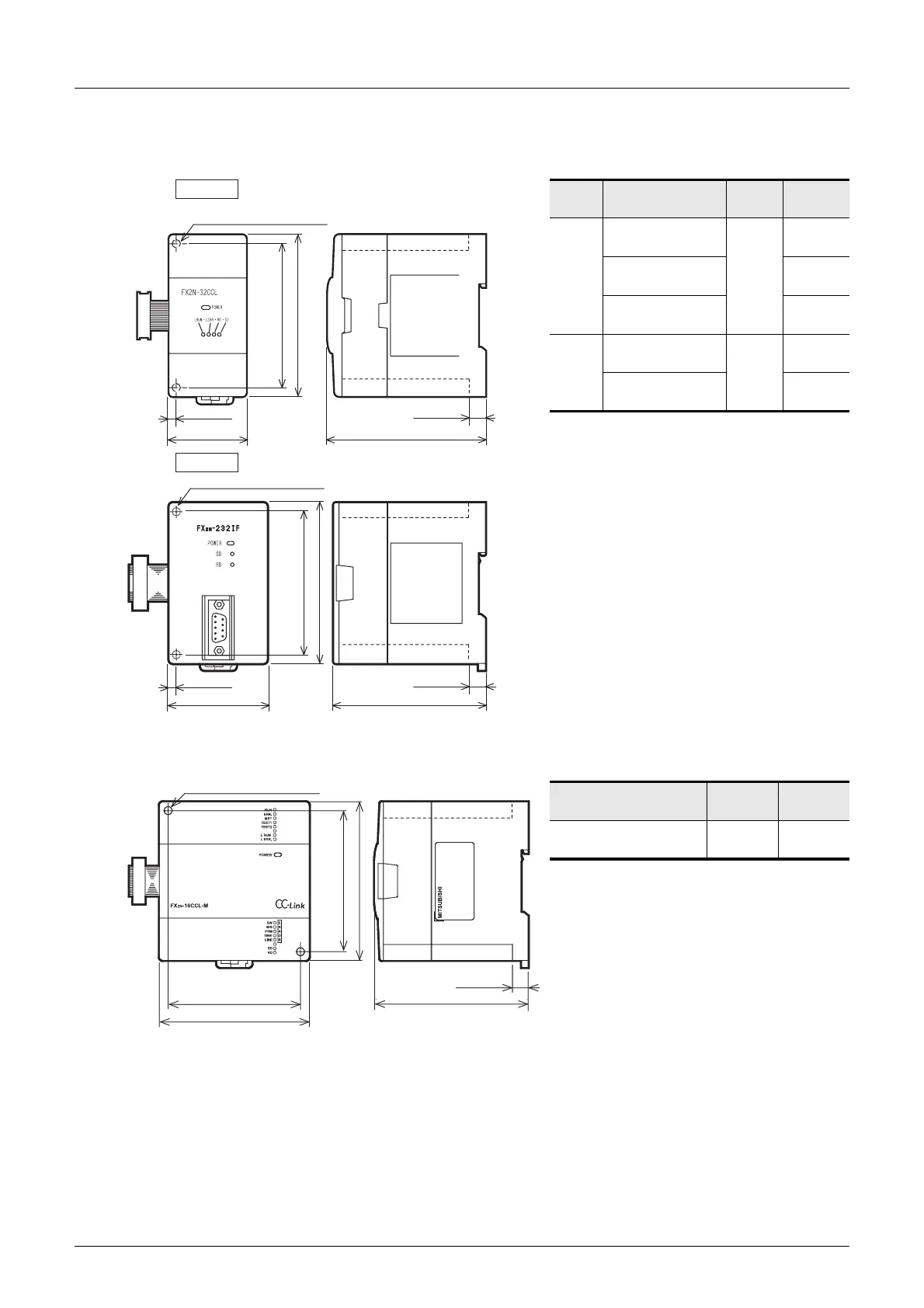

87(3.43")
80(3.15")
(mounting hole pitch)
90(3.55")
Unit:mm (inches)
4(0.16")
9(0.36")
W:43(1.7")
2-φ4.5 mounting holes
85(3.35")
80(3.15")
(mounting hole pitch)
90(3.55")
Unit:mm (inches)
4(0.16")
9(0.36")
W:55(2.17")
2-φ4.5 mounting holes
A type
B type
87(3.43")
80(3.15")
(mounting hole pitch)
90(3.55")
Unit:mm (inches)
75(2.96")
(mounting hole pitch)
9(0.36")
85(3.35")
2-φ4.5 mounting holes
