FX3UC Series Programmable Controllers
User’s Manual - Hardware Edition
8 Terminal Block Specifications and External Wiring
8.9 FX-16EYR-ES-TB/UL
1
Outline
2
External Dimensions
3
Generic Specifications
4
Power Supply Specifications
5
Input Specifications
6
Output Specifications
7
Examples of Wiring for Various Uses
8
Terminal Block
9
CC-Link/LT Master FX
3UC
(LT only)
10
Display module FX
3UC
(LT only)

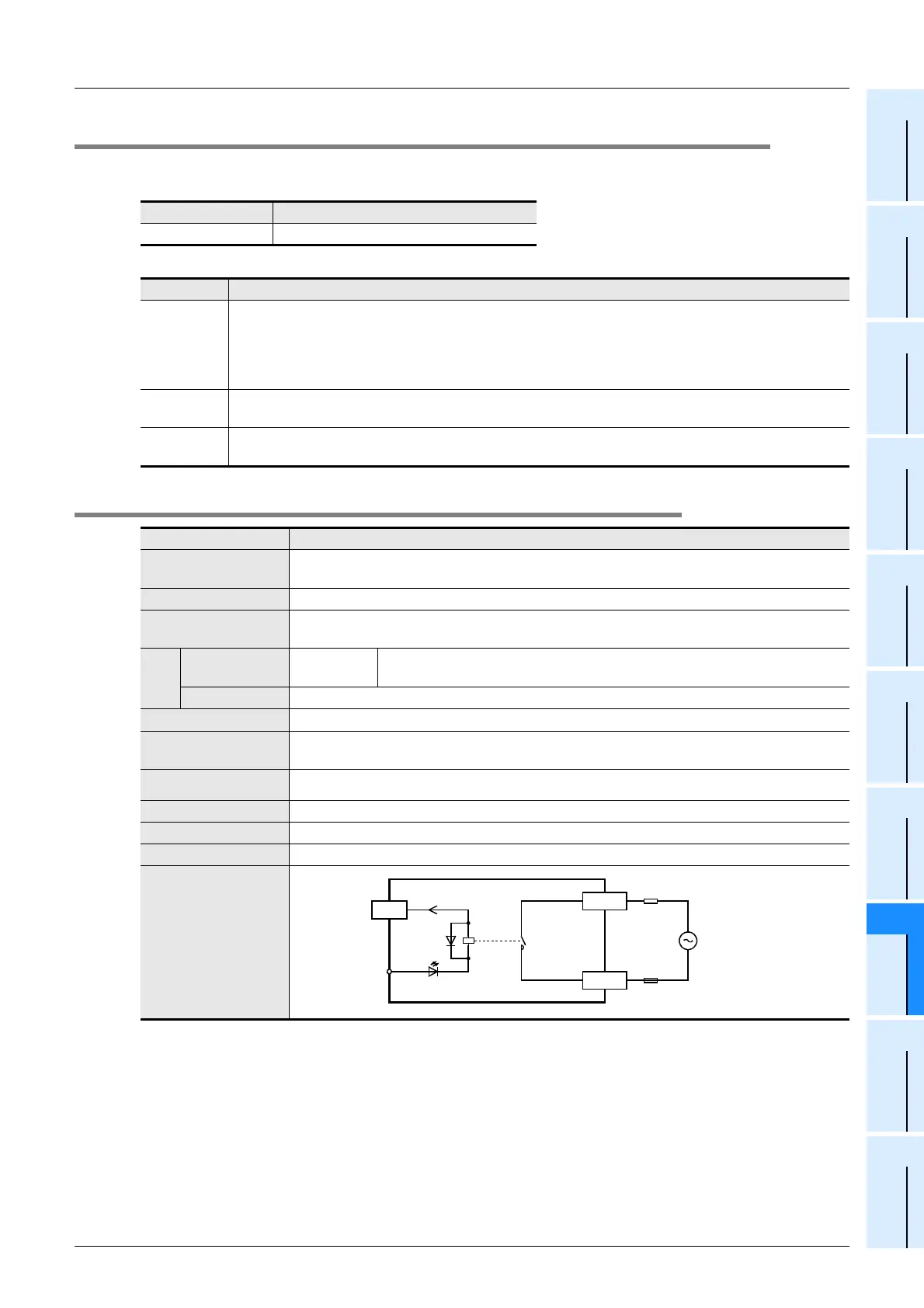

8.9 FX-16EYR-ES-TB/UL
Connect the FX-16EYR-ES-TB/UL to the output connector in the main unit or extension block shown in the
table below.
The applications shown below are not supported.
8.9.1 Specifications
*1. This response time does not include the response delay at the PLC.
Output connector
Connectable models FX
3UC-MT/DSS, FX2NC-EYT-DSS
Unsupported Applications
Pulse output
Pulse Y output (PLSY) instruction, acceleration/deceleration setup (PLSR) instruction, pulse width
modulation (PWM) instruction, DOG search zero return (DSZR) instruction, interruption positioning
(DVIT) instruction, batch data positioning mode (TBL) instruction, absolute current value read (ABS)
instruction, zero return (ZRN) instruction, variable speed pulse output (PLSV) instruction, drive to
increment (DRVI) instruction, drive to absolute (DRVA) instruction
Time division
input
Input matrix (MTR) instruction, hexadecimal input (HKY) instruction, digital switch (DSW) instruction,
arrow switch (ARWS) instruction
Time division
output
Seven segment with latch (SEGL) instruction, print (ASCII Code) (PR) instruction
Item FX-16EYR-ES-TB/UL
Connection form
Terminal block (M3.5 screw)
The connection with the PLC is the connector.
Output type Relay
External power
supply
250V AC or less,30V DC or less
Max.
load
Resistance
load
2A/1 points Make sure that the total load current of 4 resistance load points is 8A or less.
Inductive load 80VA
Min. load 5V DC, 2mA Reference value
Open-circuit leakage
current
-
Response time
*1
Approx. 10ms
Circuit isolation Mechanical isolation
Operation indicators LED lights when relay coil power is supplied
Power consumption 1.92 W (80mA 24V DC)
Input/output circuitry
External wiring
LED
24V DC
5mA
Fuse
24-
CN1
Connector side
COMn
0 to 7
