6External input/output functions

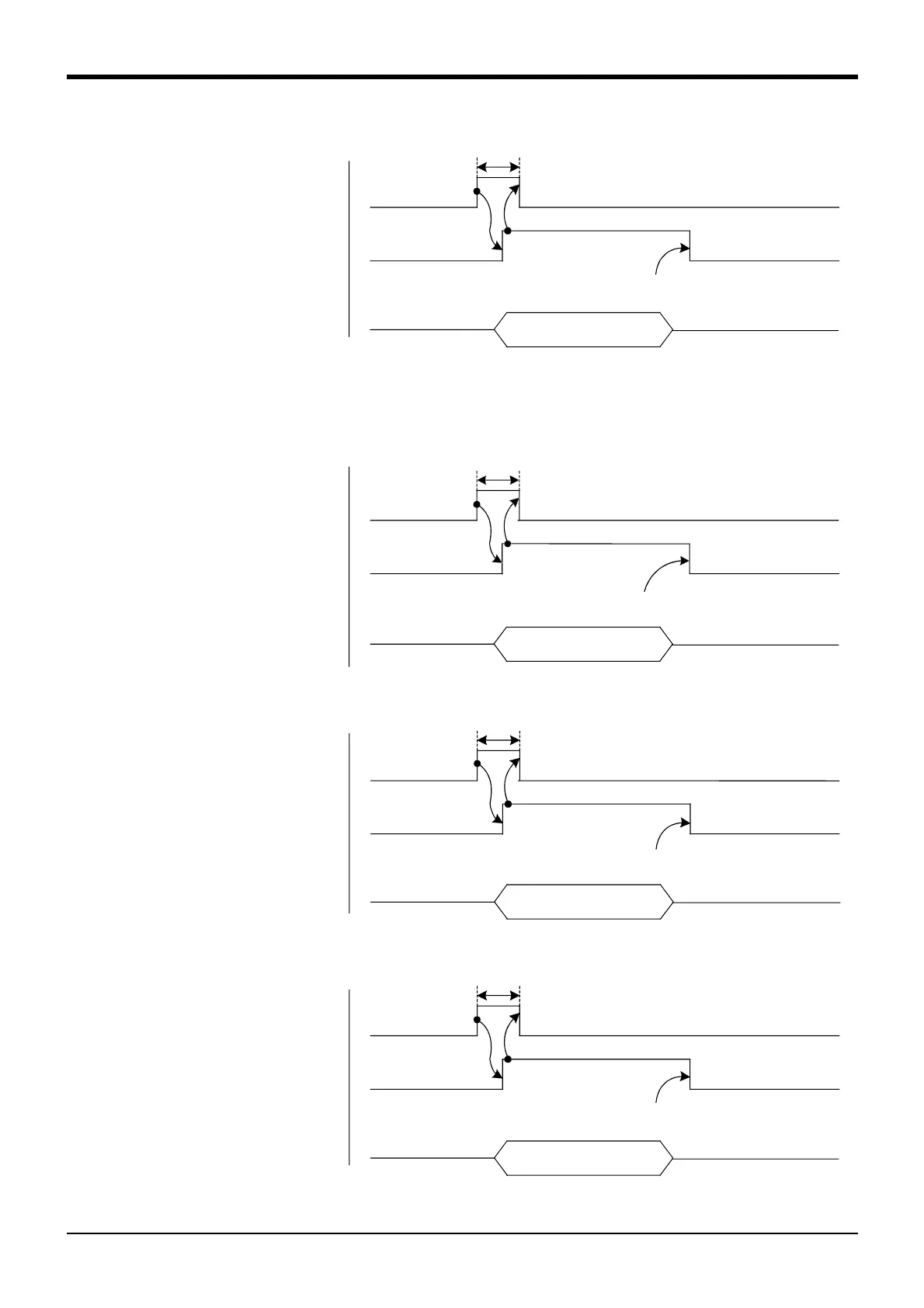

External signal timing chart 6-428
(29) OvrdSEL (Override selection input)
* This is used together with the numeric value input (IODATA).
(30) IODATA (Numeric value input/numeric value output)
* This is used together with PRGSEL, OvrdSEL, PRGOUT, LINEOUT, OvrdOUT or ERROUT.
(31) PRGOUT (Program number output request input/outputting program number)
* This is used together with the numeric value output (IODATA).
(32) LINEOUT (Line number output request input/outputting line number)
* This is used together with the numeric value output (IODATA).
(33) OvrdOUT (Override value output request/outputting override value)
* This is used together with the numeric value output (IODATA).
Override value
When the output request of a program number, line number
or error number was input
Override value output request
(OVRDOUT)
Override value output request
(OVRDOUT)
<Intput>
<Output>
Numeric value output (IODATA)
30 ms or more
Program number
When the output request of a line number, override value or
error number was input
Program number output request
(PRGOUT)
Outputting program number (PRGOUT)
<Intput>
<Output>
Numeric value output (IODATA)
30 ms or more
Line number
When the output request of a program number, override
value or error number was input
Line number output request (LINEOUT)
Outputting line number (LINEOUT)
<Intput>
<Output>
Numeric value output (IODATA)
30 ms or more
Override value
When the output request of a program number, line number
or error number was input
Override value output request
(OVRDOUT)
Override value output request
(OVRDOUT)
<Intput>
<Output>
Numeric value output (IODATA)
30 ms or more
