EQUIPMENT - 5
CAY M A N 2 0 0 7
101
Retract hydraulic jacks. Start the engine.
Allow time for the air suspension to
support the chassis.
Turn off the engine. Ensure park brake is
applied when extending the slide room.

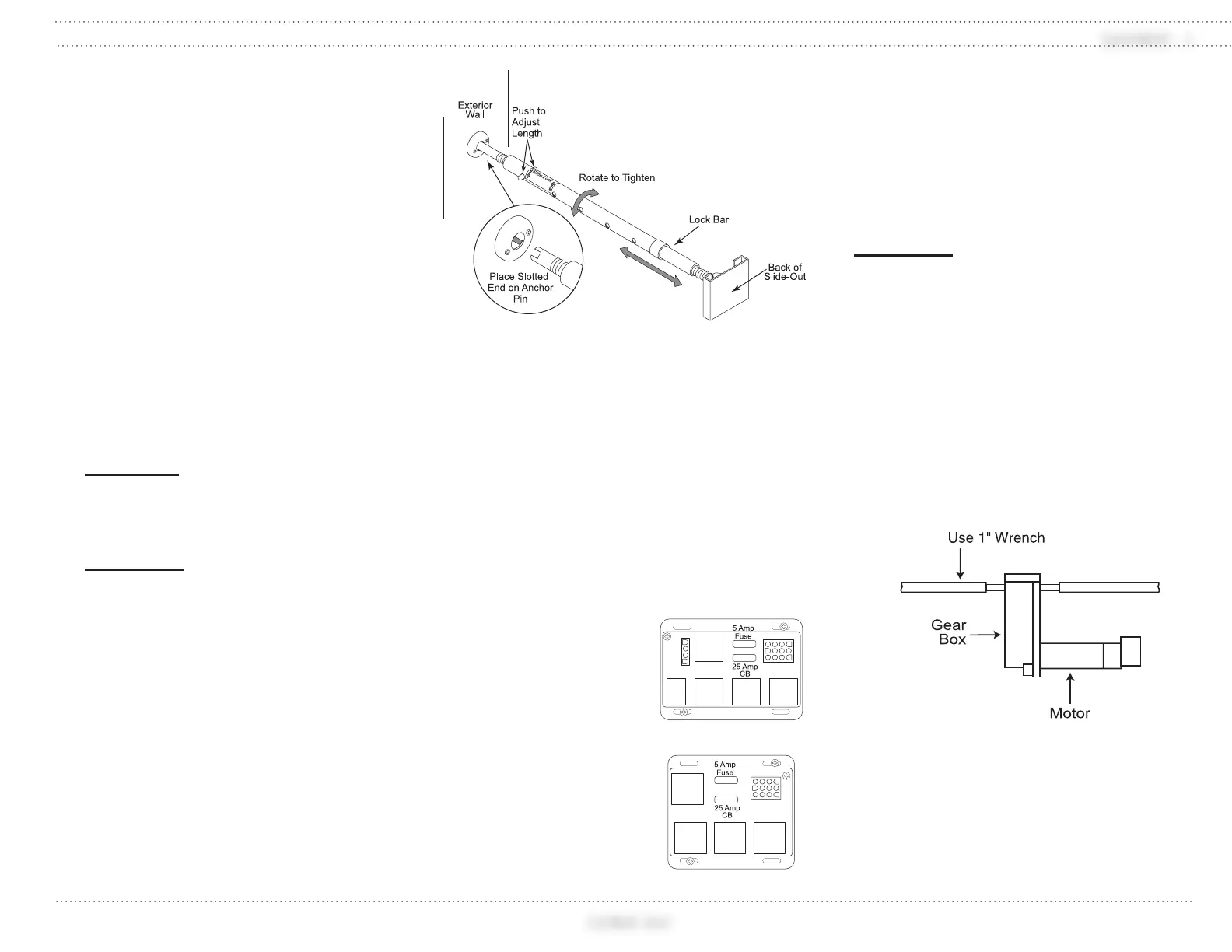

Remove the lock bar if so equipped.
Ensure all people, pets and objects are
clear of the slide room path.
The switch for the slide rooms are
located on the hallway monitor panel.
Press and hold the slide room switch to
the desired (IN or OUT) position.
Release the switch anytime to stop
room movement. The drive motor will
not automatically stop; the switch must
be released. A change in motor sound
indicates full extension/retraction.
CAUTION:
Continuous operation of the slide room
can drain the batteries and damage the
motor by overheating.
WARNING:
The outside area must be clear of
obstruction that can restrict slide room
operation. Ensure there is five or more
feet of clear space outside the slide
room prior to extending the room or
damage to the slide, the motorhome or
property can occur. When retracting
the slide room, ensure there is sufficient
clearance inside the motorhome.
Manual Override
A safety feature may be engaged and
preventing operation if the slide room does not
operate.
If the slide room does not operate:
Ensure ignition key is OFF when
extending room.
Ensure park brake is applied.
Ensure lock bar is removed.
If the slide room does
not operate after
checking the safety
requirements:
Ensure all electrical
connections at the
switch are good.
Ensure the house
batteries are fully
charged and the
battery cut-off is on.
It may be necessary to contact a repair
facility to have the problem diagnosed
and repaired.
Check the fuse and auto-reset circuit
breaker on the slide-out relay module
located in the black box in the curbside
bay.
WARNING:
DO NOT work on the slide-out system
unless the battery is disconnected. Make
sure the floor is clean before retracting
the slide-out room.
Main, Galley and Bed Slide (Electric Gear
Drive):
1. The bedroom slide-out motor is located
under the bed. Lift the bed and remove
the access panel. The main slide and
galley motors are located inside the
exterior storage bays under the slide-
outs.
2. Turn off the house and chassis battery
disconnect switches (located in rear
curbside bay).
3. Remove 12 Volt DC from the motor by
disconnecting the plug from the slide-
out motor to the power supply.
080429
030802c
030749e
Main/Galley Motor
To Next Page
