EQUIPMENT - 5
CAY M A N 2 0 0 7
102
4. Use a 5/8" wrench (bed slide) or 1"
wrench (main and galley) to turn
driveshaft and retract room (see
illustrations).
CAUTION:
DO NOT continue to turn the motor
after the room is fully extended
or retracted. Damage to the slide
mechanism can occur.
5. Once the slide room has been manually
retracted, apply pressure to the wrench
to rmly set the room. This will
prevent room drift.
6. Take the motorhome to an authorized
repair center.
Wardrobe Slide (Electric Cable Drive):
1. Turn off both the battery and house
disconnect switches (located in rear
curbside bay).
2. Locate the slide room motor near the
ceiling of the slide-out. Remove the
fascia, valance, or both. The fascia and
valance may be attached by velcro or
screws.
3. Disconnect the slide room motor
electrical plug. Locate by following the
wires that run from the motor to the
plug. This removes 12 Volt DC power
from the slide-out motor.
4. Attach the exible shaft to the 1/4"
tting on the end of the slide-out
motor.
5. Attach a 1/4" socket and ratchet or drill
to the other end of the exible shaft.
6. Turn in proper direction to move the
room. Reverse direction if the cables
tighten and the motor is dif cult to
turn.
CAUTION:
Over-torquing can result in severe
damage.
7. Take motorhome to an authorized
repair center.
AWNINGS
Slide-out Cover
The slide-out cover automatically reacts to
slide-out direction. A xed edge of the slide-out
cover is installed into an awning rail, mounted
just above the slide-out. A spring-loaded roller
with special brackets mounts to the slide-out. In
a hard rain, the cover helps prevent water from
penetrating the seal of the slide-out. The slide-
out cover will automatically reach full extension
when the slide-out room is fully extended.
The slide-out cover automatically rolls up into
the travel position when the slide-out room is
completely retracted.
NOTE:
When retracting the slide-out, stop the
room approximately halfway. Confirm
that the fabric is properly rolling before
fully retracting the slide-out.
CAUTION:
The slide room and slide-out awning
should be retracted before heavy wind,
rain or snow to prevent damage to the
awning or motorhome. Wind can drive
rain under the slide-out awning and into
the motorhome.
CAUTION:
Rain water can pool on the slide-out
awning. The added weight will cause
the awning to sag. Upon retracting the
room, material can become caught in
between the top of slide room and the
opening in the motorhome. It will be
necessary to retract the room in small
increments and allow the water time to
run off.
030759b

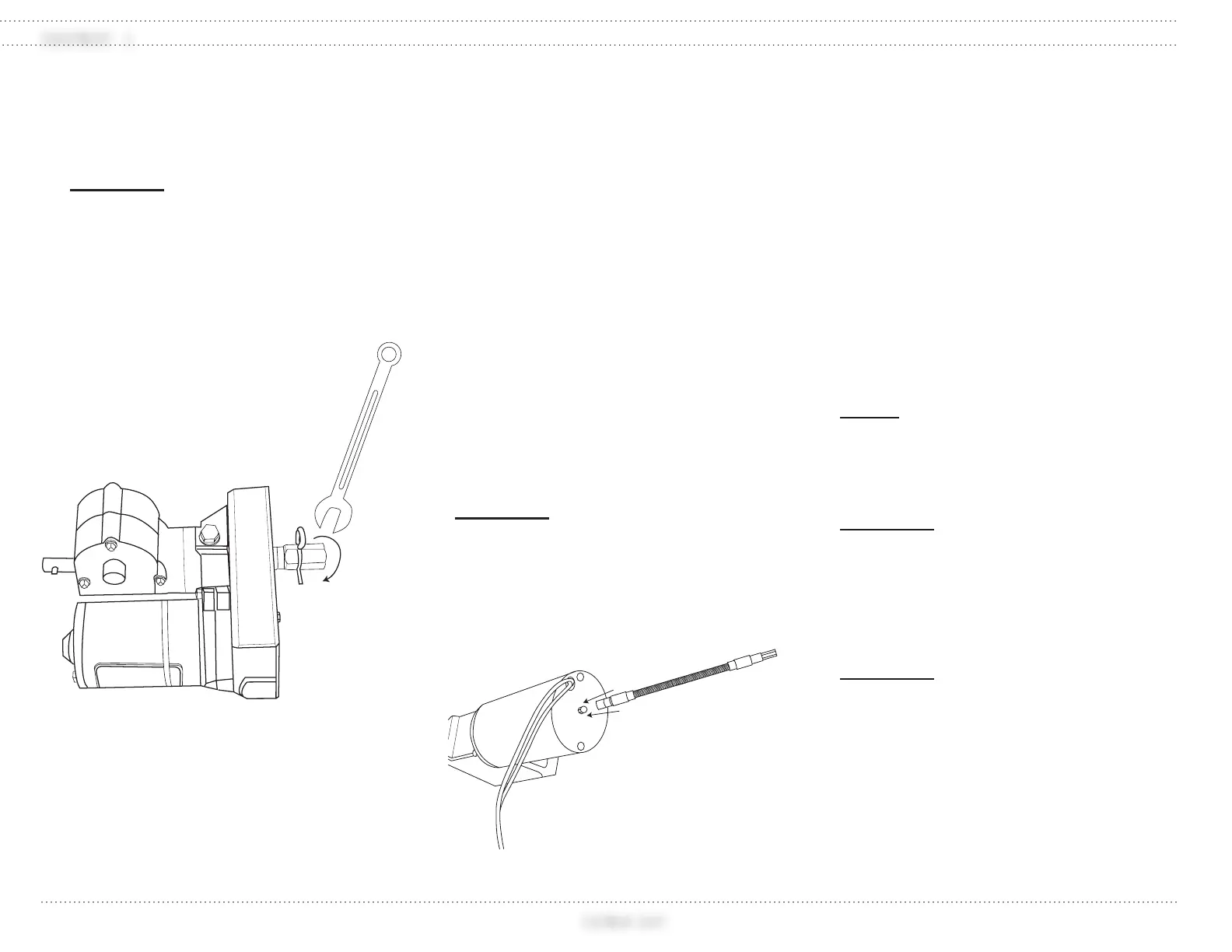

Bedroom Motor
031166
Wardrobe Motor: Attach
fl exible shaft to retract.
