CAUTION:
DO NOT move the motorhome while
the jacks are still in contact with the
ground or extended. Damage to the
jacks can occur.
Prior to Leveling
Chassis battery voltage must be at least
12 Volts DC.
Select a level site if possible, or park the
motorhome with the front facing downhill.
Apply the parking brake. Place the
transmission in Neutral.
With the ignition on, push and hold
the Air Dump switch to lower the
suspension. This reduces the amount the
jack will need to extend before making
contact with the surface.
CAUTION:
Ensure potential jack contact points
are clear of obstructions or depressions
before operation. Keep all people clear
of the motorhome during leveling
system operations. Never expose
hands or other parts of the body near
hydraulic leaks. Hydraulic lines are
under high pressure. Oil leaks may cut
and penetrate the skin causing serious
injury.
CAUTION:
Hot asphalt, gravel or
dirt may not support the
weight that is placed on
the hydraulic jack pads.
Place thick plywood
under the jack pads to
help disperse the weight.
If blocking up a rear
jack pad to gain added
clearance when the
motorhome is on a slope, place a wheel
chock at the opposite set of rear wheels
to prevent the motorhome from rolling.
CAUTION:
Survey the area around and under
the motorhome for obstructions
that can damage the motorhome or
undercarriage components before
lowering the air suspension. Damage to
the mud flap may occur if it is located
over a raised area.
NOTE:
If additional height or surface support is
needed, construct a 1' x 1' wooden block
made from two pieces of ¾" plywood
for a total thickness of 1½". Drill hole
in corner and use awning wand to slide
wooden block under jack pad.
Manual Leveling
The manual leveling mode can be used for
leveling or stabilization preference. An indicator
lamp adjacent to an extend switch indicates that
jack position(s) is low.
Manual Leveling Operation:
Follow the instructions in Prior to
Leveling.
Turn the ignition switch to On or ACC
position.
Press the ON/OFF button to turn the
system on.
Press and hold the MAN (manual) button
for ve seconds. Once the indicator lamp
below the MAN button illuminates, the
system is ready.
090368

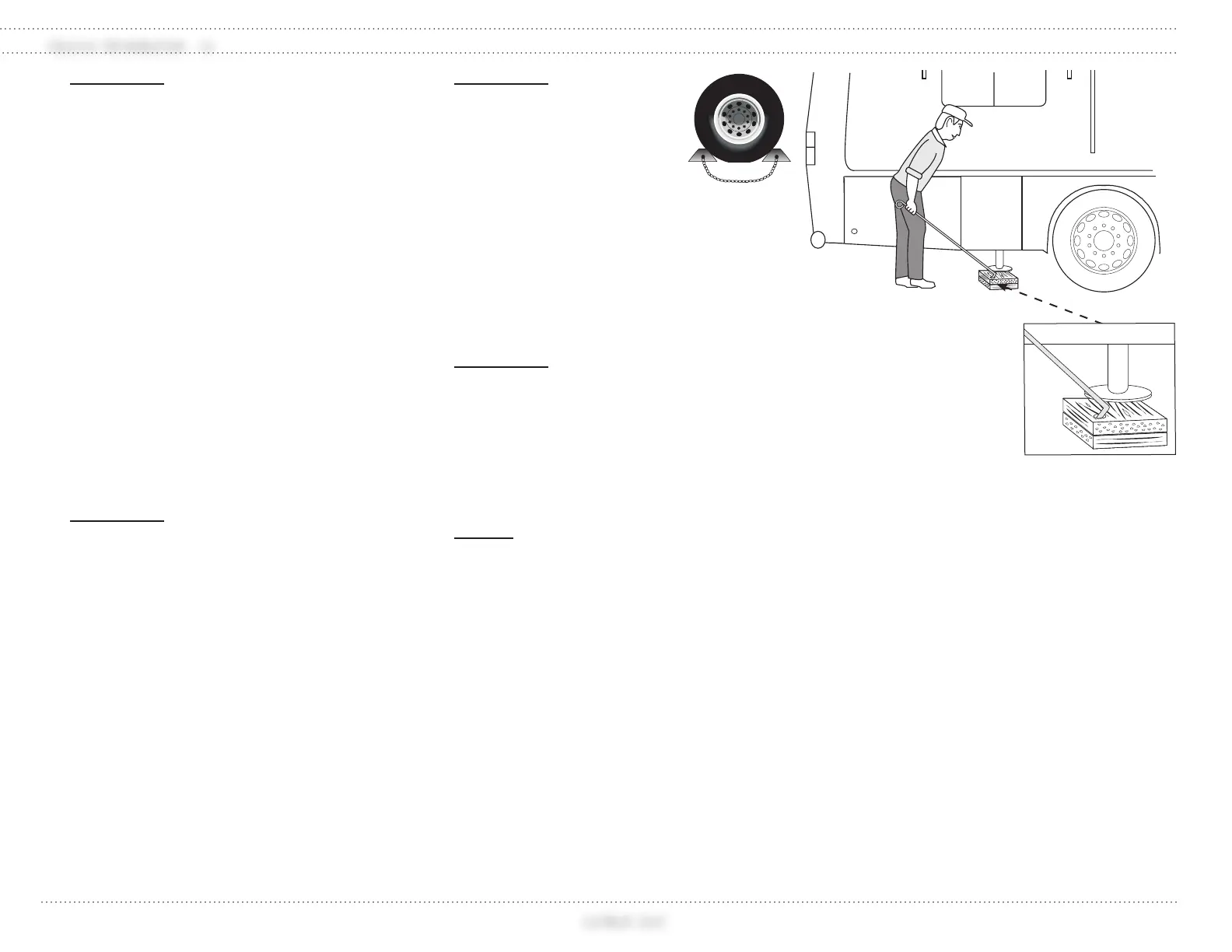

Properly chock the
wheels to prevent
the motorhome
from rolling.
Wood Support Block
020185b
020185
To Next Page
