EQUIPMENT - 5
CAY M A N 2 0 0 7
103
CAUTION:
At least five feet of clearance is needed
between the side of the motorhome and
any objects, such as trees or fences,
to allow the slide room and slide-out
awning to fully extend.

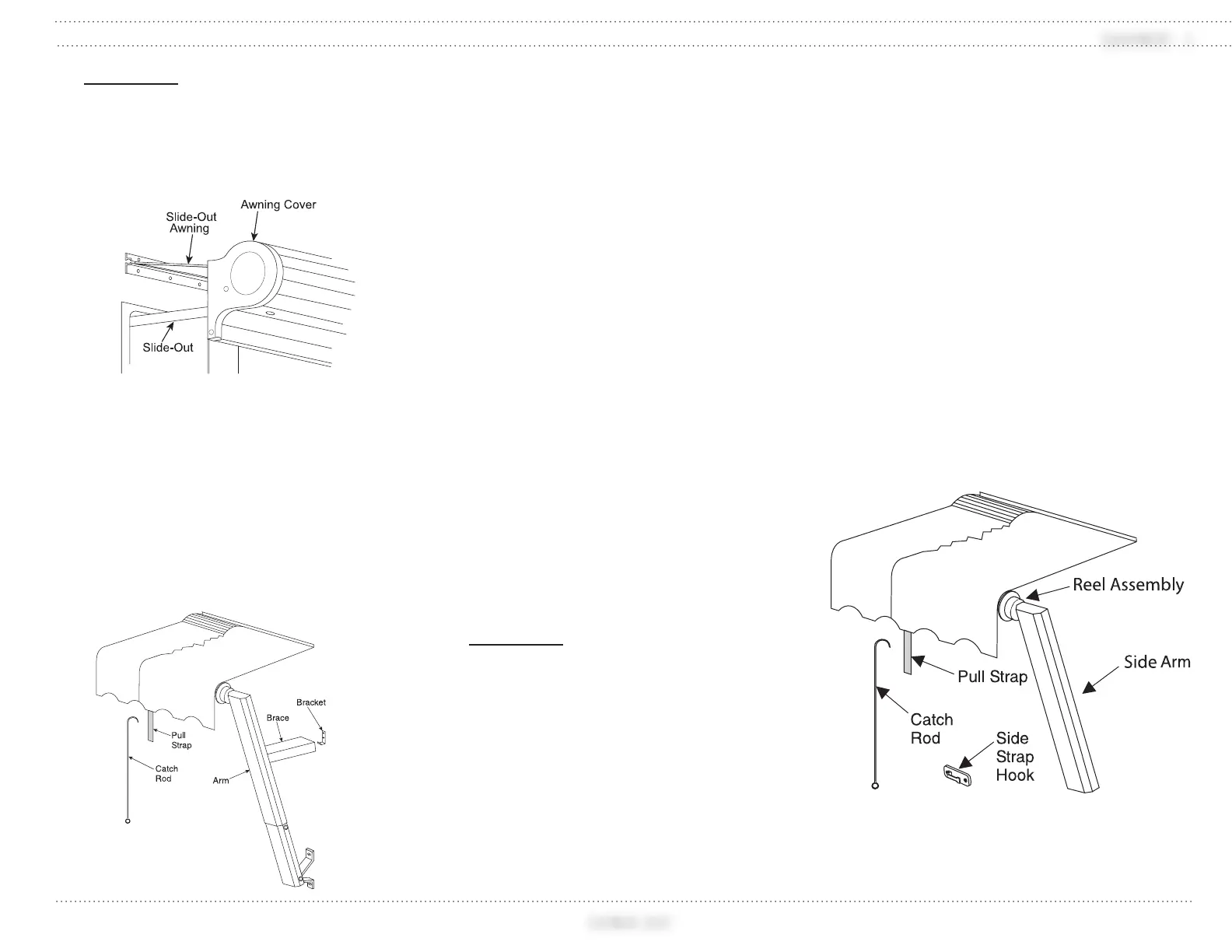

Door Awning
To Extend the Awning:
Hook the pull strap loop with the awning
pull rod.
Pull strap until awning is at full
extension. Pull out inner arms.
Mate the inner arm slot with the hook
on the side of the motorhome. Repeat
procedure for other arm.
Release strap slowly to ensure inner
arms are secure. Slide the strap to rear of
awning roll tube and tie to rear arm.
Loosen locking knobs for both arms, and
extend arms so the canvas will clear the
door while in the open position.
To Retract the Awning:
Loosen locking knobs for both arms.
Lower arms to bolt stops. Tighten knobs.
Untie the pull strap and slide strap to
center of awning roll tube.
Pull down on pull strap, with a rm grip,
until tension is off the inner arms. Fold
inner arms and attach them to the Velcro.
Carefully allow material to wind onto
awning roll tube while holding strap in a
neutral position. This will allow material
to roll up evenly.
Awning end caps should be against the
rubber bumpers. If one end cap is off,
pull down on awning pull strap while
holding strap slightly to opposite side,
allowing awning to roll back up into
position.
CAUTION:
When the awning is at full extension do
not allow the awning to snap back into
the retracted position. Personal injury
or damage to the awning or motorhome
may occur.
Window Awning (Optional)
To Extend the Window Awning:
Hook loop of pull strap with catch rod
and pull awning, reel assembly and
side arms to extend fully away from
motorhome.
Hook pull strap on side strap hook,
remove catch rod from pull strap and
store.
To Retract the Window Awning:
Hook catch rod on pull strap, remove
pull strap from side strap hook and
slowly allow awning to retract.
Remove catch rod from pull strap and
store.
030924b
030851b
030792
