MONITOR PANEL
The monitor panel is a central location for
many of the switches and monitors used to
operate the motorhome. This unit is generally
located in the hallway.

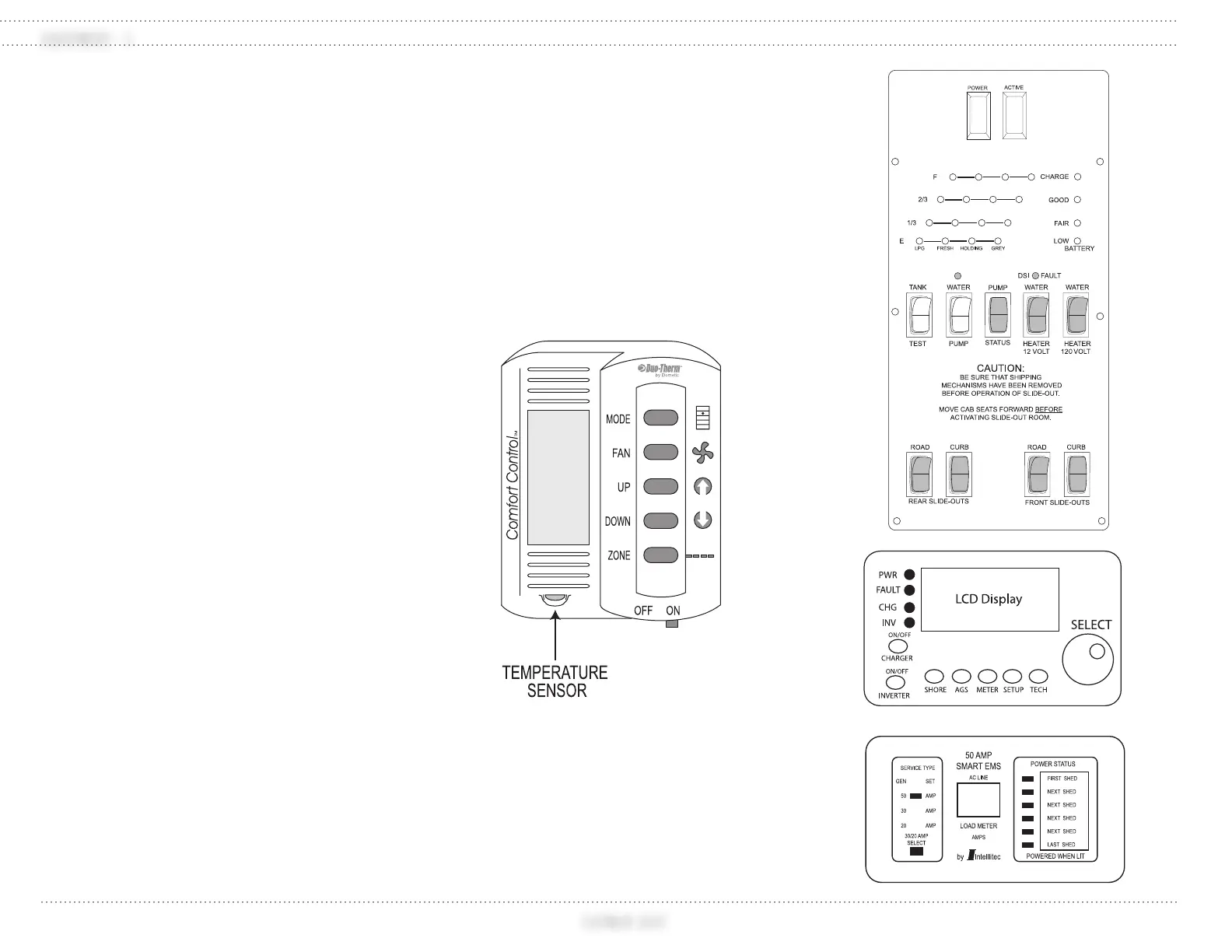

1. Comfort Control Thermostat
– Thermostat controls for roof AC,
furnace and fan.
2. System Heat – Activates basement
heater and fresh water tank heat pad.
3. Tank/House Battery Monitor
- Displays the status of the holding
tanks, fresh tank, LP tank and house
batteries.
4. Tank Test Switch - Spring loaded
switch used to display tank and house
battery status on the monitor panel.
5. Water Pump Switch – Activates the
water pump. The pump status light
illuminates when the water pump is on.
6. Water Heater Switch - Applies 12
Volt DC power to ignite and operate
the water heater with LP Gas. If the
water heater fails to ignite, the DSI
FAULT lamp will illuminate.
7. Water Heater Switch – Operates
water heater from 120 Volt AC power.
8. Slide-out Room Controls – Extends
and retracts the slide rooms.
9. Inverter Control (Optional) – Turns
the optional inverter on or off and
monitors battery charging status.
10. Energy Management System – Helps
prevent overloading limited shore power
supply by shedding electrical loads.
