Leveling Controls
Power Gear Control -
Hydraulic Systems:
The three-point hydraulic leveling system is
operated from the control module to manually or
automatically level the motorhome. The control
features a multiple warning system with  ashing
lights and an alarm to alert of a jack down.
DASH
Gauges
NOTE:
Some of the items depicted in the dash
drawing are not used, depending on
floorplans and equipment options.
1. Air Pressure Gauges:
These gauges indicate air system pressure
of the front and rear air tanks. The normal
air system operating pressure is 115 to
145 psi. These air pressures are preset at
the factory. It is an indication of an air
system malfunction if the air system does
not maintain normal operating pressure.
Use caution and stop the motorhome in a
safe area. Contact a quali ed technician
immediately.
NOTE:
It is not safe to drive the motorhome
with low air pressure. Damage can
occur to the suspension and/or drive
shaft, and operation of the air brake
system can also be affected.
2. Tachometer:
Displays the engine speed in revolutions per
minute (RPM). Normal low idle speed can
vary from 700 RPM to 875 RPM.
3. Engine Coolant Temperature:
This gauge indicates an approximate
normal operating range. Monitor this gauge
frequently at all times. Take immediate
action to avoid engine damage. Refer
to the OEM instructions for speci c
recommendations.

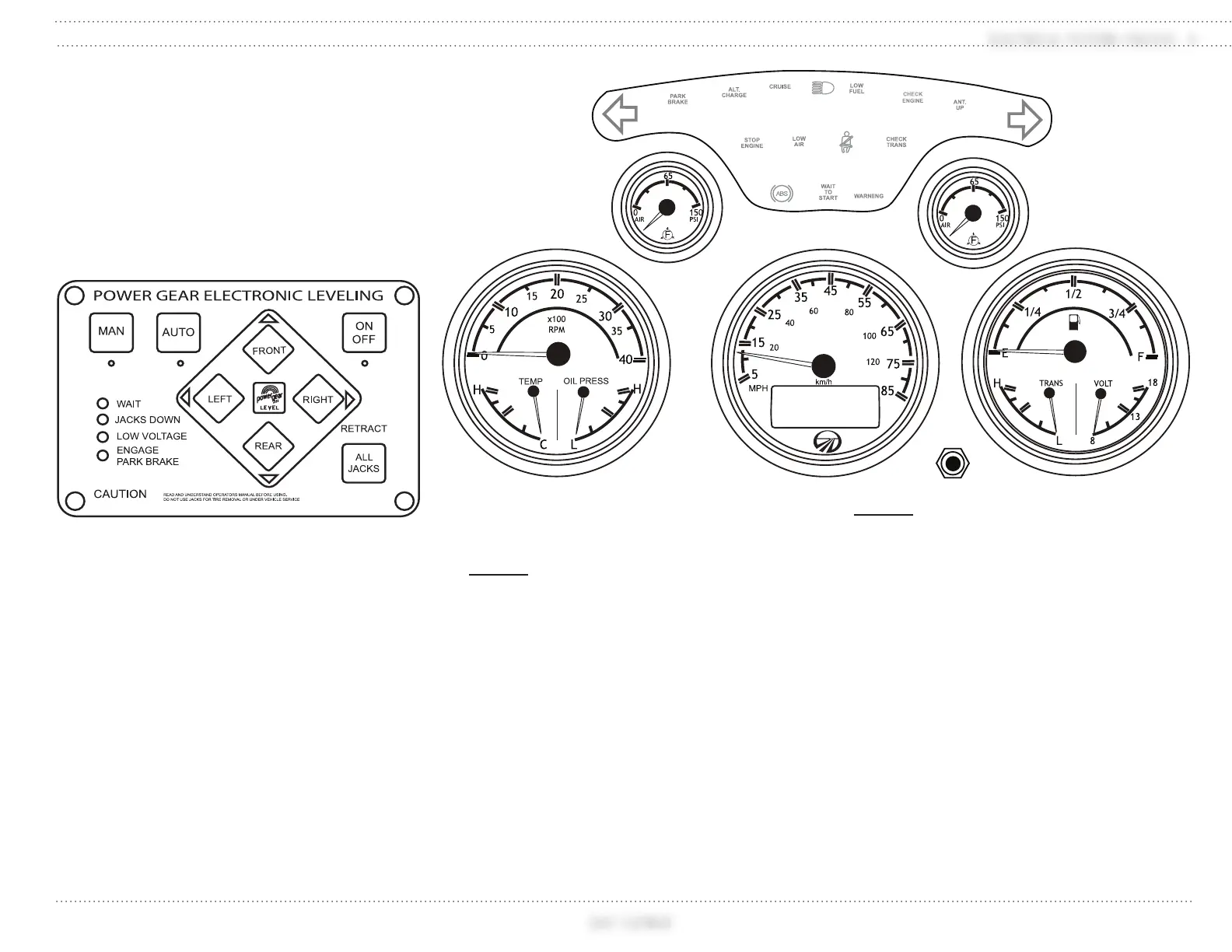

Power Gear Hydraulic Level
020039f
3
8
1
2
4
1
5
6
7
9
