ELECTRICAL SYSTEMS-CHASSIS - 9
171
2007 CAY M A N
DIAGNOSTIC PLUG LOCATION
The diagnostic plugs are located to the left of
the steering column. An engine diagnostic plug
is located in the rear curbside compartment.
Engine Diagnostics:
The engine diagnostics will notify the operator
of deviations from the programmed limits of the
engine through the “Check Engine” lamp in the
dashboard. Should a system component with the
engine develop a deviation, the “Check Engine”
lamp will illuminate and a diagnostic code will
be logged and stored in the system memory.
These codes are accessed by a service technician
using special equipment.
090304n

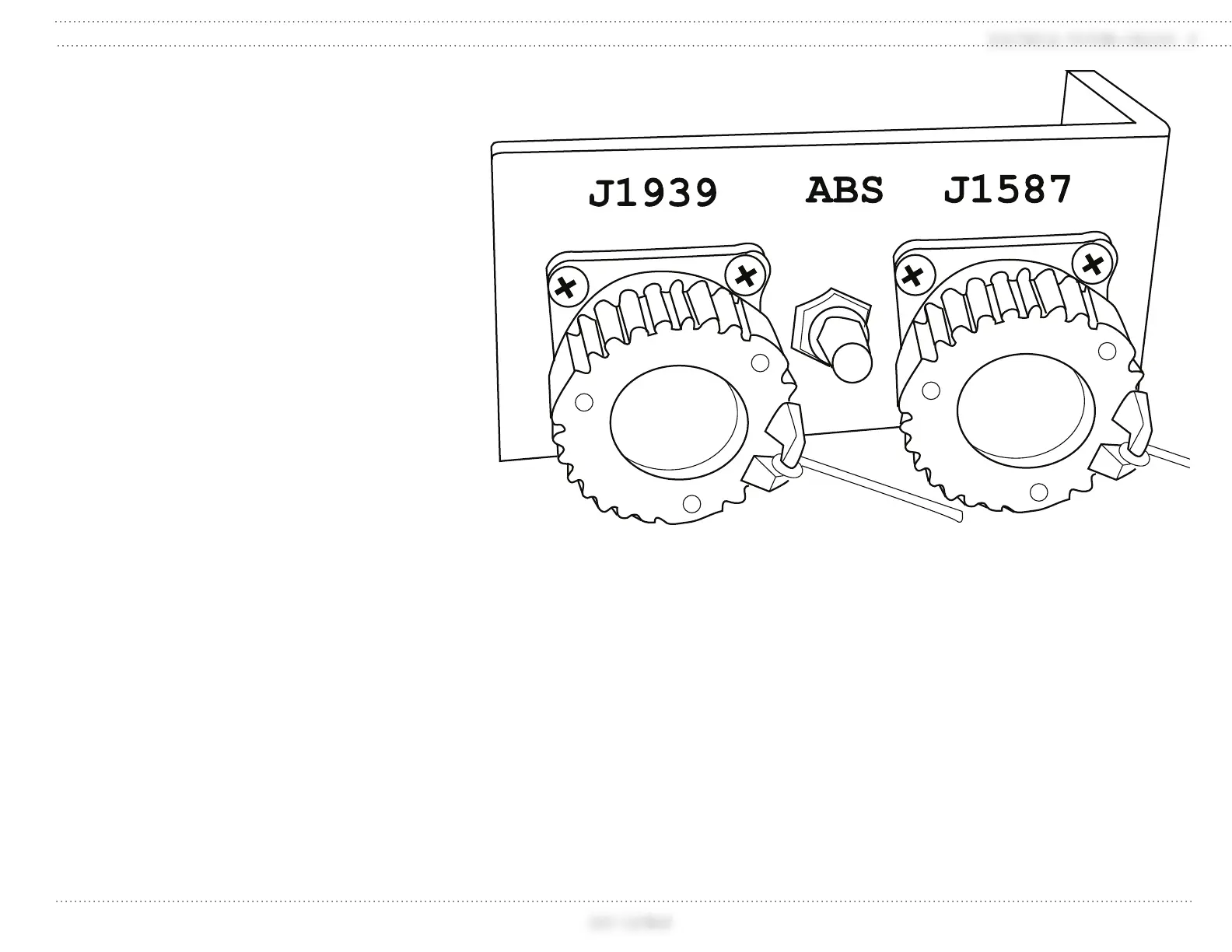

Diagnostic Plugs located to the left of the steering column.
