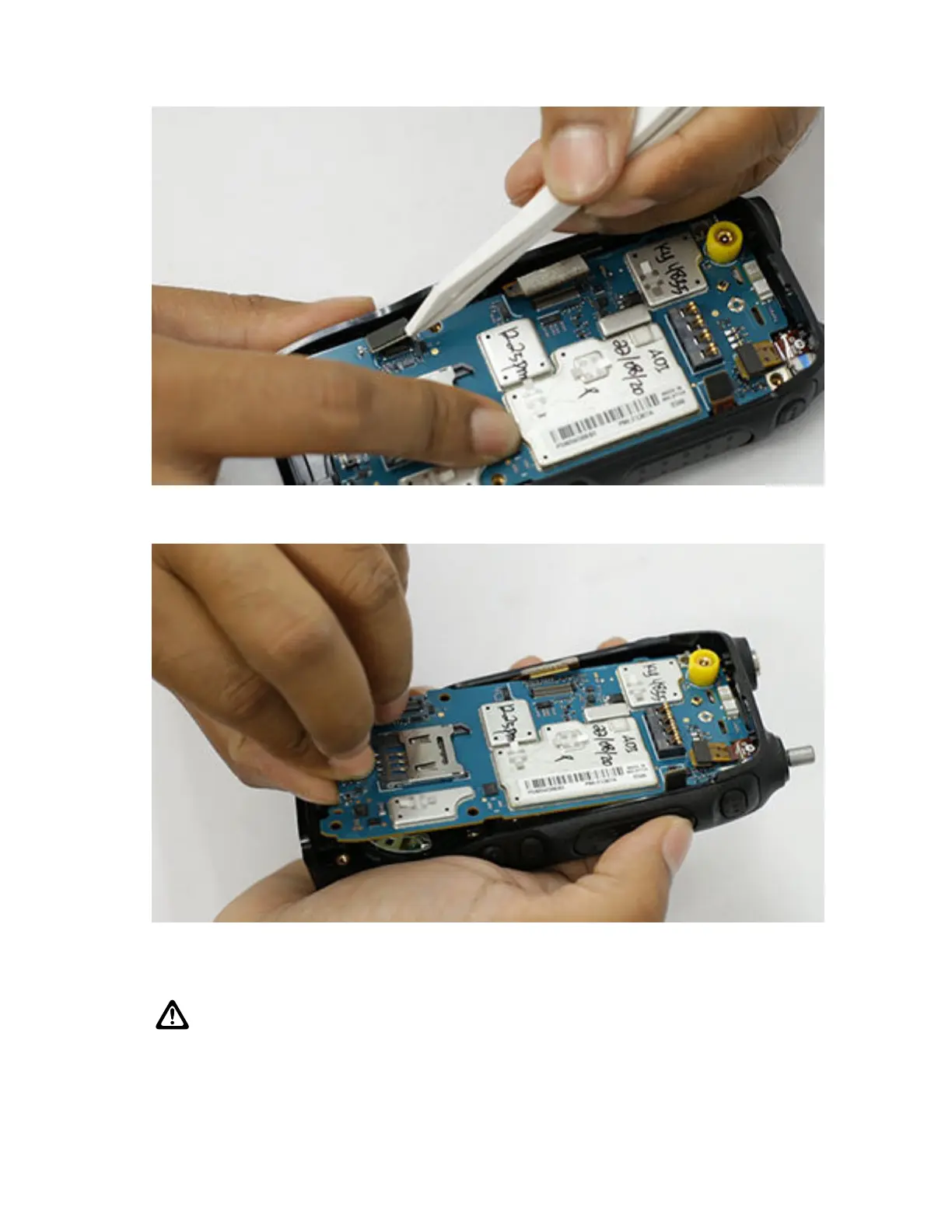

3 Gently tilt the bottom portion of the Main PCB upwards to release the Main PCB from the guiding
pins.
4 Carefully pull the Main PCB away in the direction as shown. Be aware of the pogo pin on the top
left portion on the Main PCB. Ensure that it is not stuck inside the front kit before pulling it away
from the housing.
CAUTION: Ensure the component of the board do not scratch the flex or the housing.
MN006362A01-AL
Chapter 7 : Radio Disassembly and Reassembly
