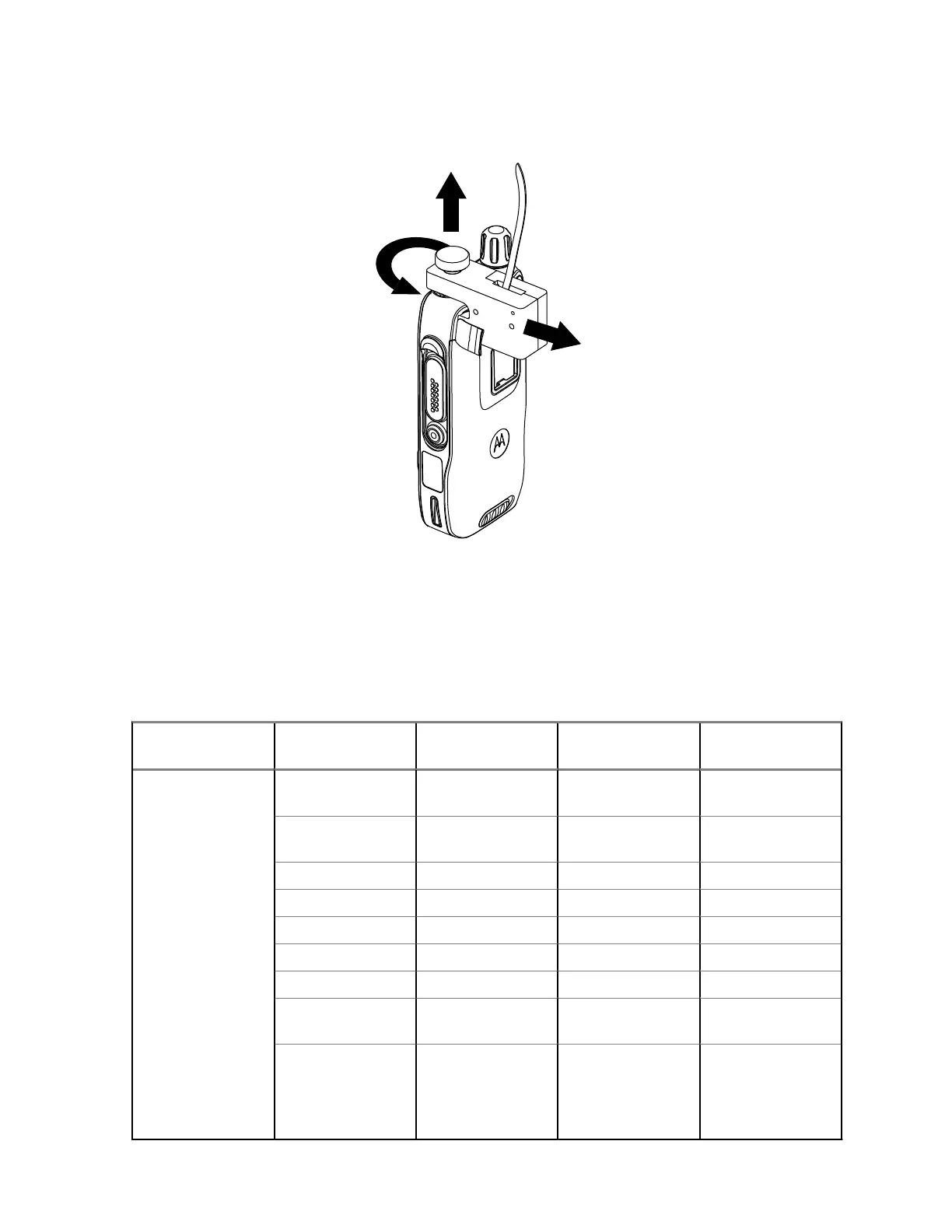

Figure 7: RF Block Removal
4.2
Transmitter/Receiver Test
Table 11: Test Setup for 350–470 MHz and 380–430 MHz Radio Models
Test Name Test Setup Radio Setup Test Condi-
tions
Limits
Base Station
Registration
Control Channel 390.125 MHz 3605 TETRA
380+0MS
Traffic Channel 390.125 MHz 3605 TETRA
380+0MS
Time Slot N/A 3 N/A
Country Code N/A 234 N/A
Network Code N/A 2392 N/A
Base Color N/A 1 N/A
Location Area N/A 06 N/A
Min Receiver
Level
N/A N/A –110 dBm
Max Transmitter
Level
N/A N/A 30.0 dBm (Class
4)
32.5 dBm (Class
3L)
MN006362A01-AL
Chapter 4 : Test Setup and Testing
35
