Motorola MXP600 - Figure 9: MXP600 Exploded View 1 (for PMHN4457_, PMHN4462_); Table 14: Replacement Part List 1

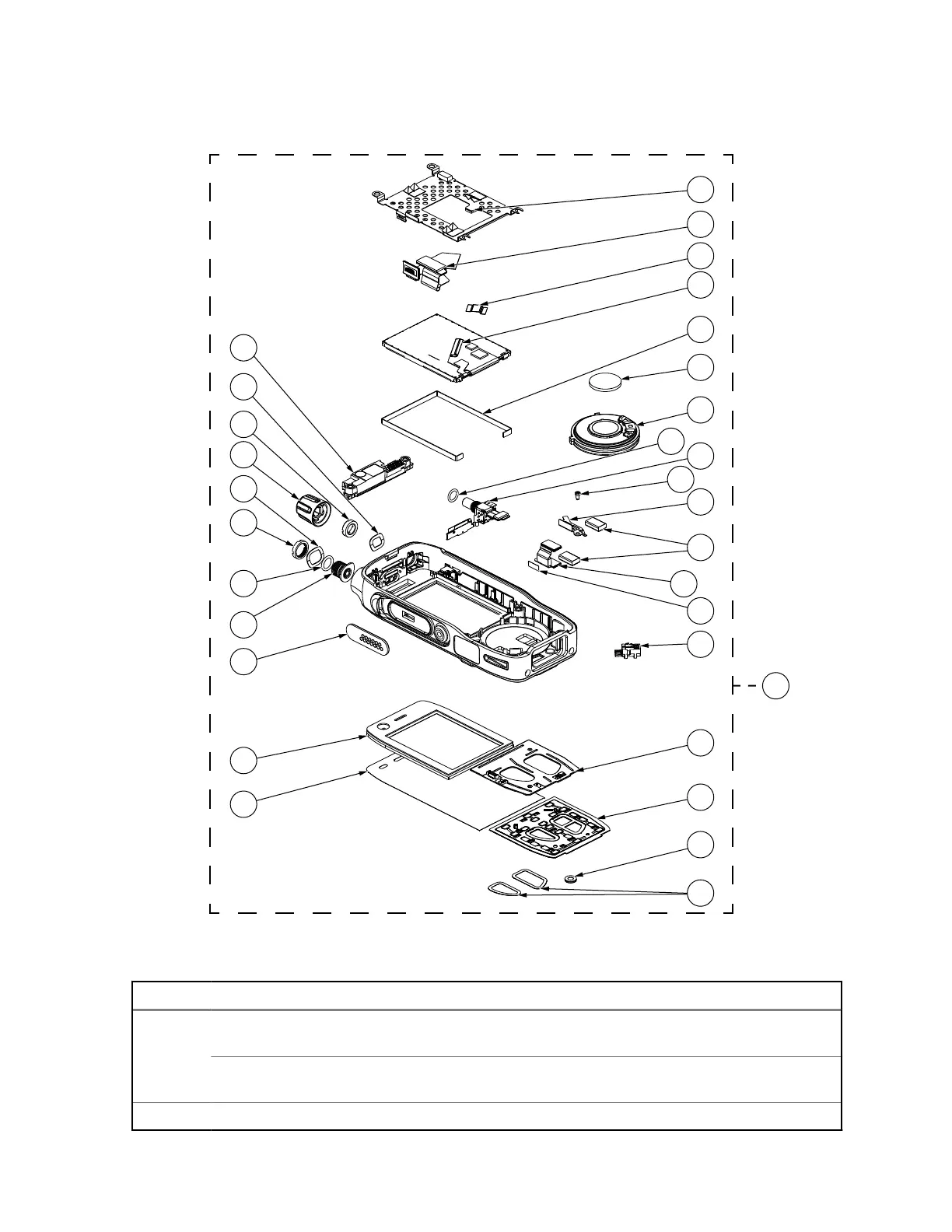

Figure 9: MXP600 Exploded View 1 (For PMHN4457_, PMHN4462_)
5
13
14
15
16
17
18
19
20
27
28
26
25
24
23
22
21
12
11
31
30
29
9
8
7
6
4
3
32
2
1
Table 14: Replacement Part List 1
No. Part/Kit Number Description Remark
1 0104082J31 LCD metal retainer kit Serviceable (For
PMHN4421_).
0104083J91 LCD metal retainer kit Serviceable (For PMHN4457_,
PMHN4462_).
2 PA002864A01 Display Interface Flex Serviceable.
MN006362A01-AL
