Motorola MXP600 - Page 89

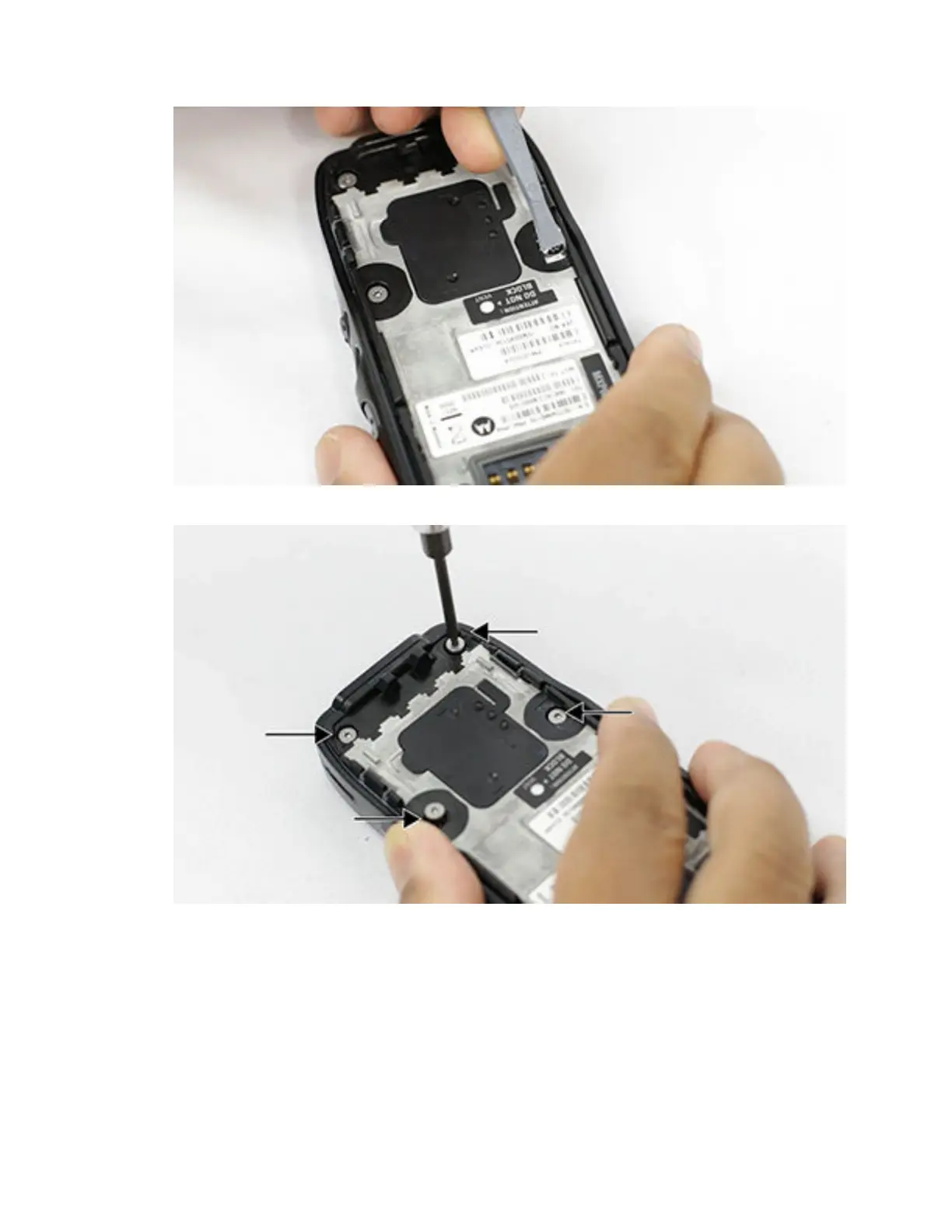

2 Using a Torx driver with T-6 Torx bit, unscrew the four screws on the back chassis.
3 Using fingers, carefully remove the back housing from the radio using the battery latch hook.
MN006362A01-AL
Chapter 7 : Radio Disassembly and Reassembly
89
