17
Installation
Chillgard 5000
US
(8) Carefully inspect the internal components and assemblies for damage or shortages. If damage
has occurred, file the appropriate claim with the shipping carrier immediately.
(9) Before installation and use, keep the device in a dry, secure place in the original shipping
container.
4.3 Mounting Guidelines
Do not mount the device directly to chiller, piping, or piping supports.
Mount the device:
• In a location that is easy to access and visible to personnel before they go into the area being moni-
tored.
• To a rigid surface that does not have vibration or mechanical shock.
• In a vertical position.
• Approximately 5 ft (1.5 m) above the ground (Fig. 7, Fig. 8).
• With at least 3 in. (7.62 cm) of clearance around all sides for proper ventilation, calibration, and
servicing. Make sure there is adequate space to connect the external wiring and sample line piping
(Fig. 8).
• With the appropriate hardware. Make sure the hardware is suitable for the mounting surface and
can withstand 70 lb (9 kg) without loosening or causing damage to the hardware or mounting
surface. Use all four mounting holes provided on the device (Fig. 9).
• Away from exposure to direct solar heating and other excessive heat sources.
• Away from wet or damp conditions.
• Away from areas that are dirty or exposed to oils or chemicals.

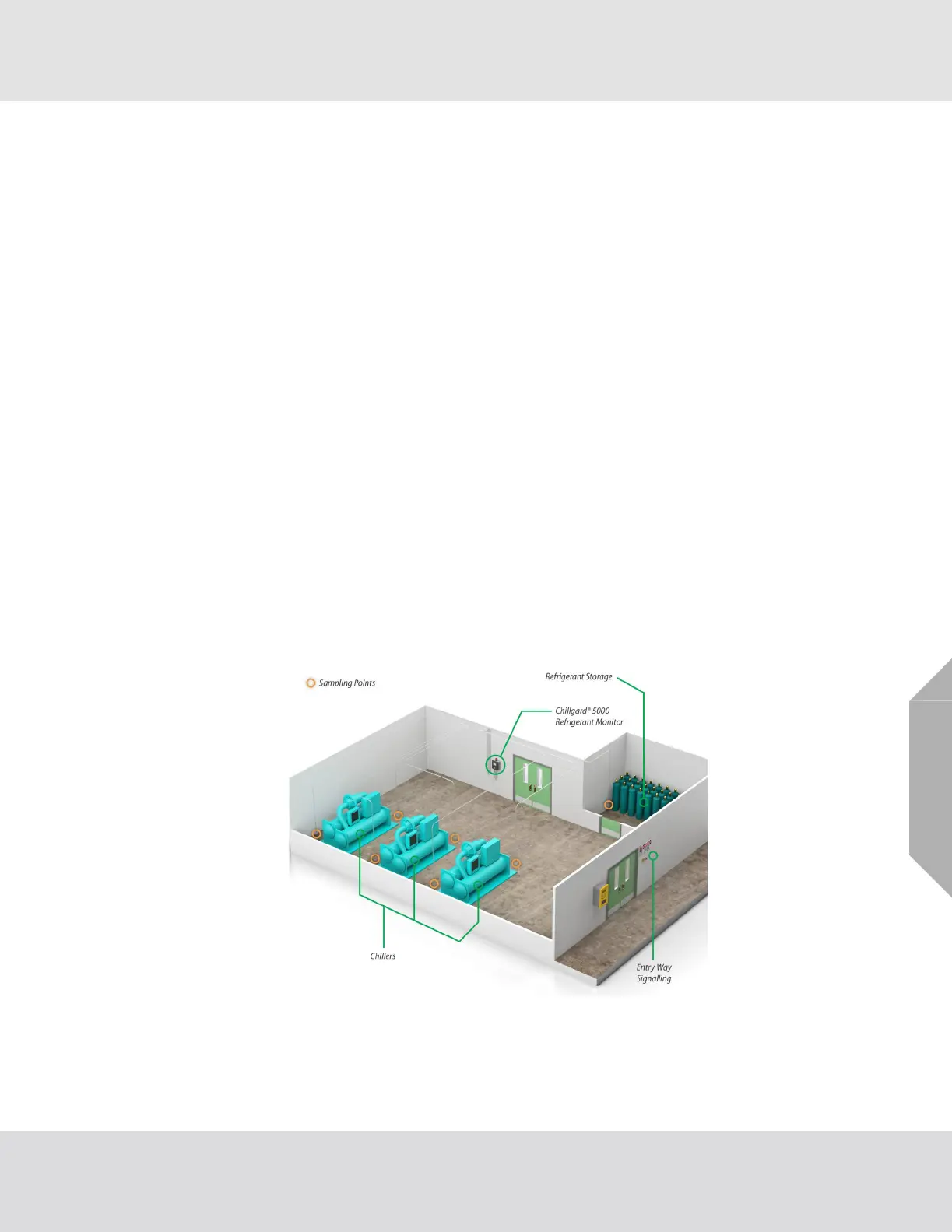

Fig. 7 Mounting location
