37
Calibration
Chillgard 5000
US

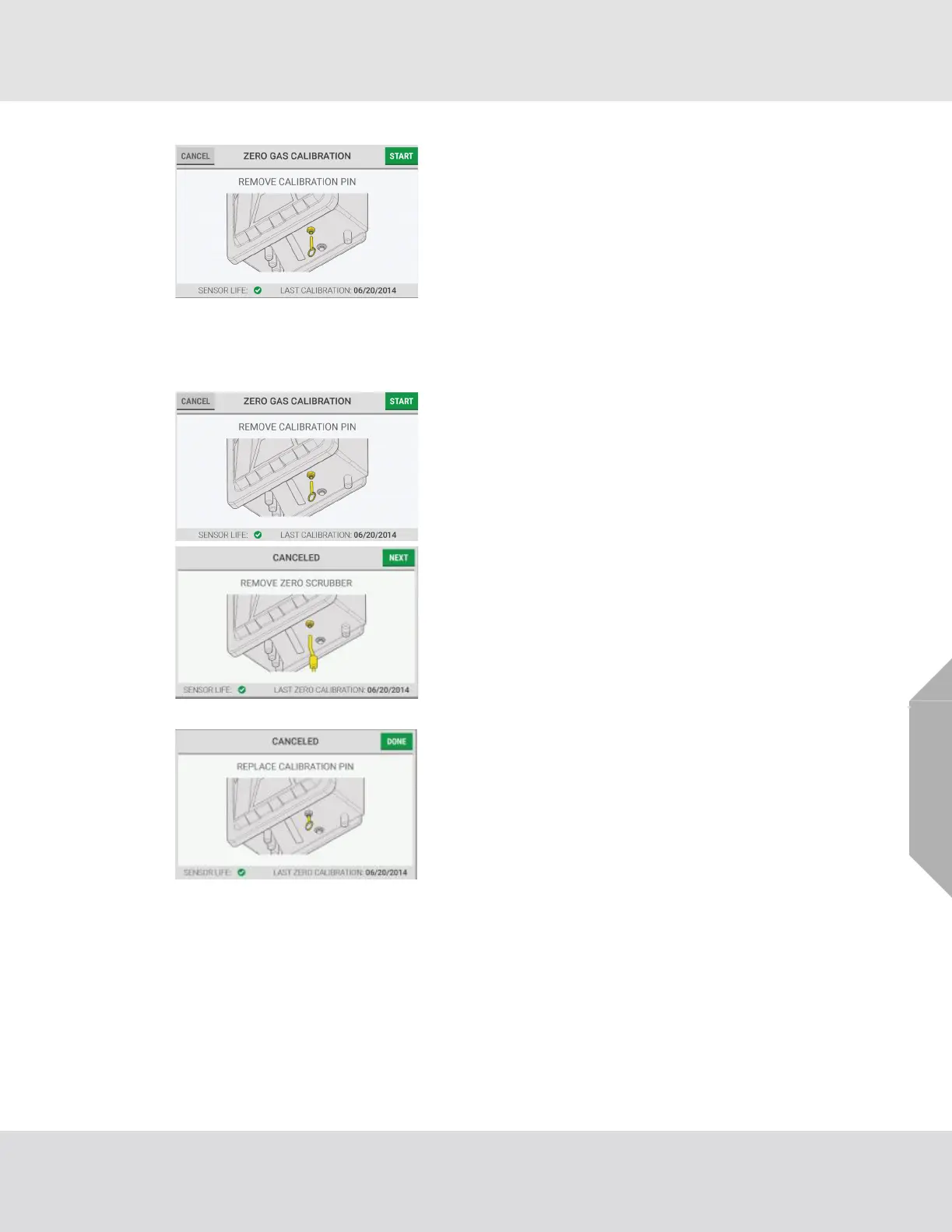

6.2.2 Stopping Calibration
During some phases, when "Cancel" is available in the top left corner, the calibration process can be
stopped.
(3) On the device touchscreen, select "Start".
(1) To stop the calibration process, select "Cancel".
(2) For zero-gas calibrations, disconnect the zero-gas
scrubber tubing from the calibration port, then select
"Next" on the device touchscreen.
(3) On the "Canceled" screen, select "Done".
(4) On the bottom of the device, install the pin in the cali-
bration port.
