Initial Setup
Chillgard 5000
US
5.4 Relay Configuration
Each relay is mapped to a specific predetermined function; that is, fault, alarm, warning, caution, or
horn.

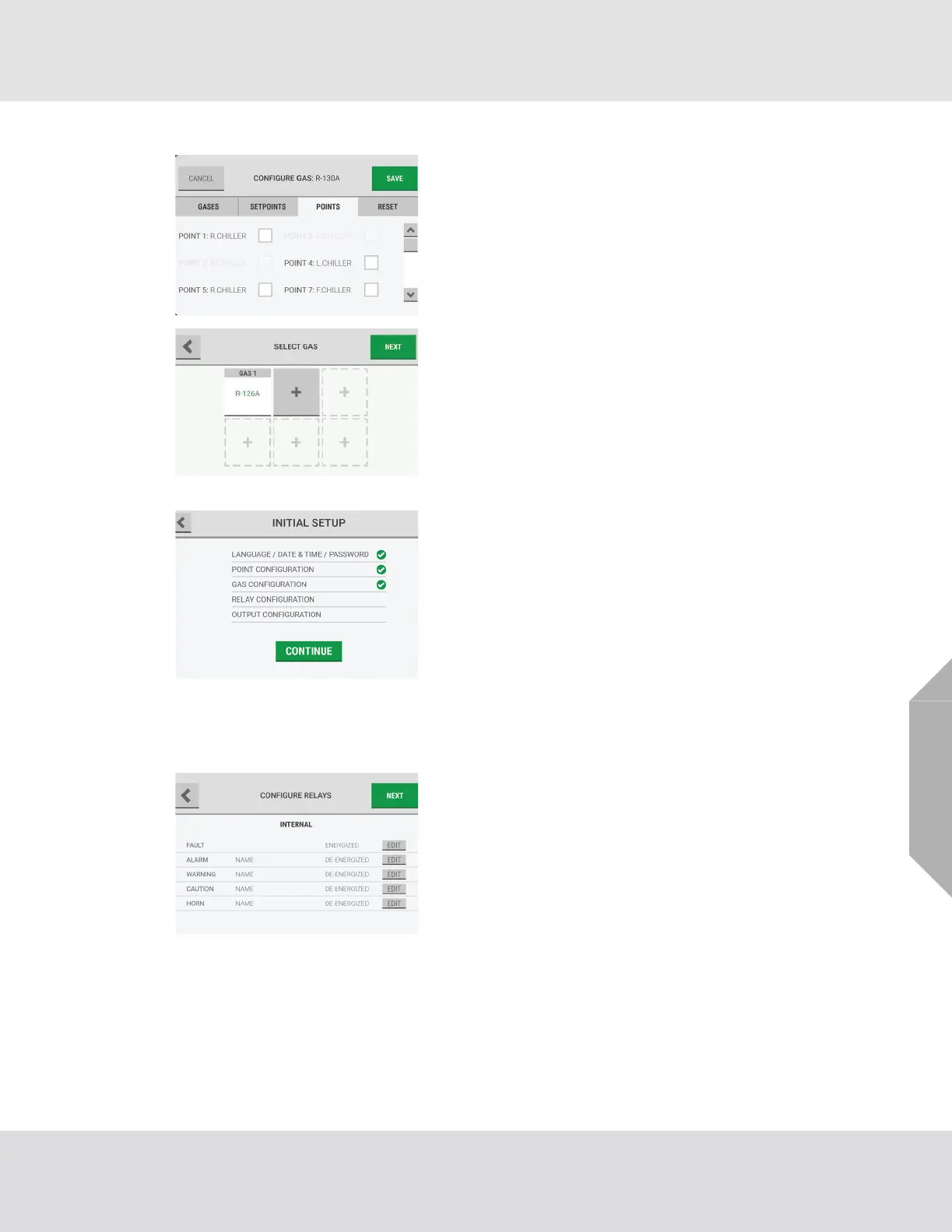

(13) Select "Save".
(14) Repeat Steps (1) through (13) for each gas to be
configured.
NOTE: The "Reset" tab is not used during the initial setup.
For information about the "Reset" tab, refer to Section
7.8.2, "Gas Configuration".
(15) When all applicable gases have been configured,
select "Next".
(16) The "Initial Setup" screen shows a check mark beside
the "Gas Configuration" step to indicate that it is
complete. Select "Continue" to go to the relay config-
uration setup.
(1) On the "Configure Relays" screen, select "Edit" for the
function to configure.
NOTE: The options for the configuration settings for alarms,
warnings, cautions, and the horn are identical.
