The default setting for the internal fault relay is the ener-
gized state. To test the relay, do the following:
• Select "ON".
• Select "OFF".

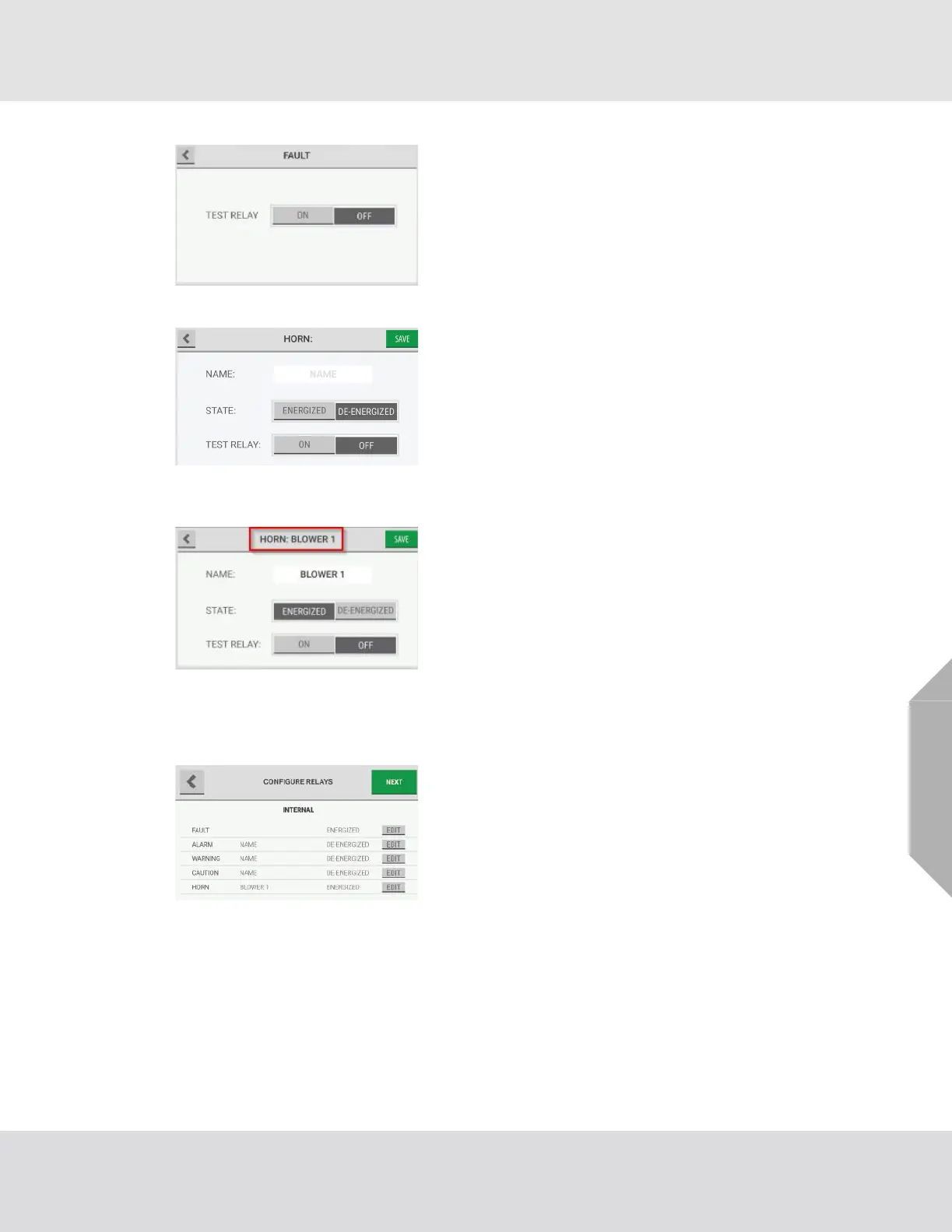

(2) In the relay configuration pop-up, select the "Name"
field, and use the alphanumeric keyboard pop-up to
enter a value.
Relay names can have eight characters.
The title in the pop-up header changes to show the
assigned name.
(3) Select "Energized" or "De-energized" for the relay
state.
(4) Do the following to test the relay:
a) Select "ON".
b) Make sure the equipment connected to the relay
operates as expected.
c) Select "OFF".
(5) Select "Save". The updated settings for the relays
show on the "Configure Relays" screen.
(6) Repeat Steps (1) through (5) for each relay to be
configured.
(7) When all relays have been configured, select "Next".
