Ramp 113
POWER RAMP
Your MV-1 may be equipped with a 30 in (762 mm) wide
power ramp that can be deployed to various heights and terrain
conditions. There are two deployment options:
• Short Deployment - A steeper 1:4.4 ratio slope where the
ramp only partially telescopes to 67.9 in (1725 mm), not
including space to maneuver.
• Long Deployment - A more gradual 1:6 ratio slope where
the ramp fully telescopes to 91 in (2311 mm), not includ-
ing space to maneuver.
NOTE:
Long deployment is recommended whenever
possible, provided there is adequate space to deploy the
ramp and allow a passenger in a wheelchair to safely board
or exit the vehicle.
NOTE: For information on the proper boarding and
securing of a passenger in a wheelchair, see the Wheelchair
Restraints on page 84.
The load limit for both the short and long deployment is 660
lbs (299.6 kg).
DO NOT exceed the load limit on the ramp.
REASON: Exceeding the load limit could cause damage
to the ramp, serious personal injury or death.

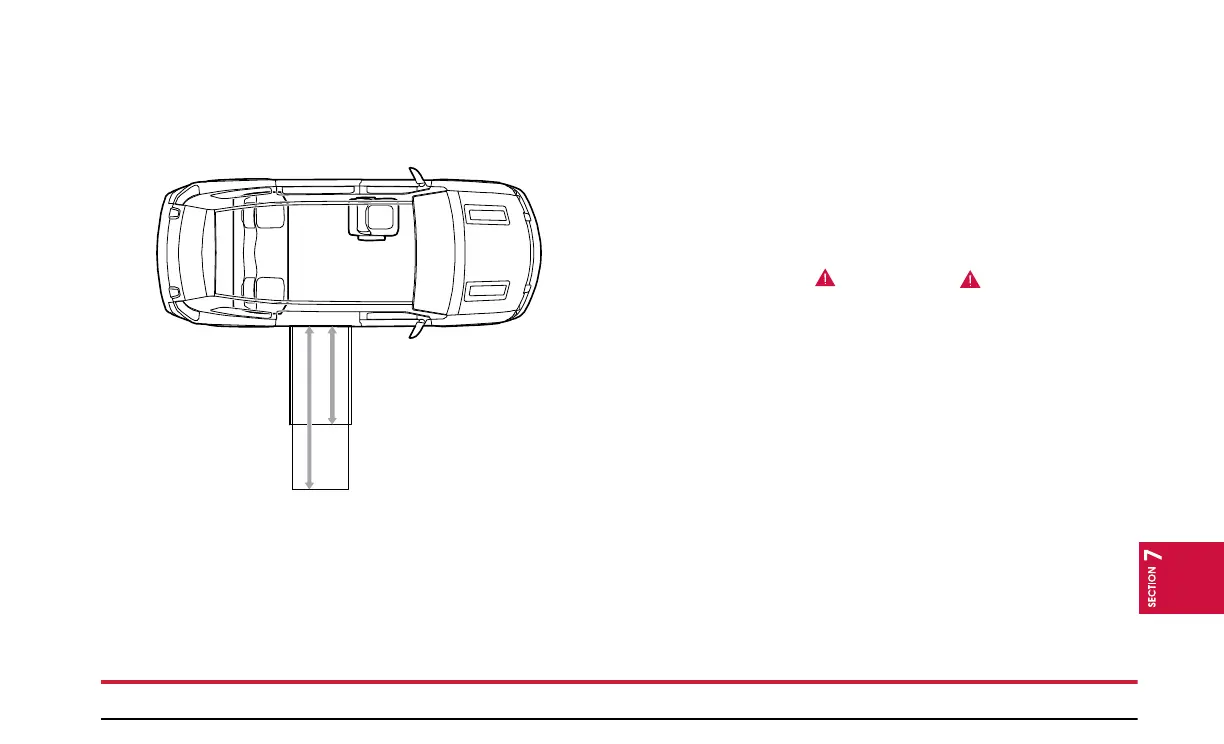

69.5 in (1765 mm)
92.25 in (2343 mm)
