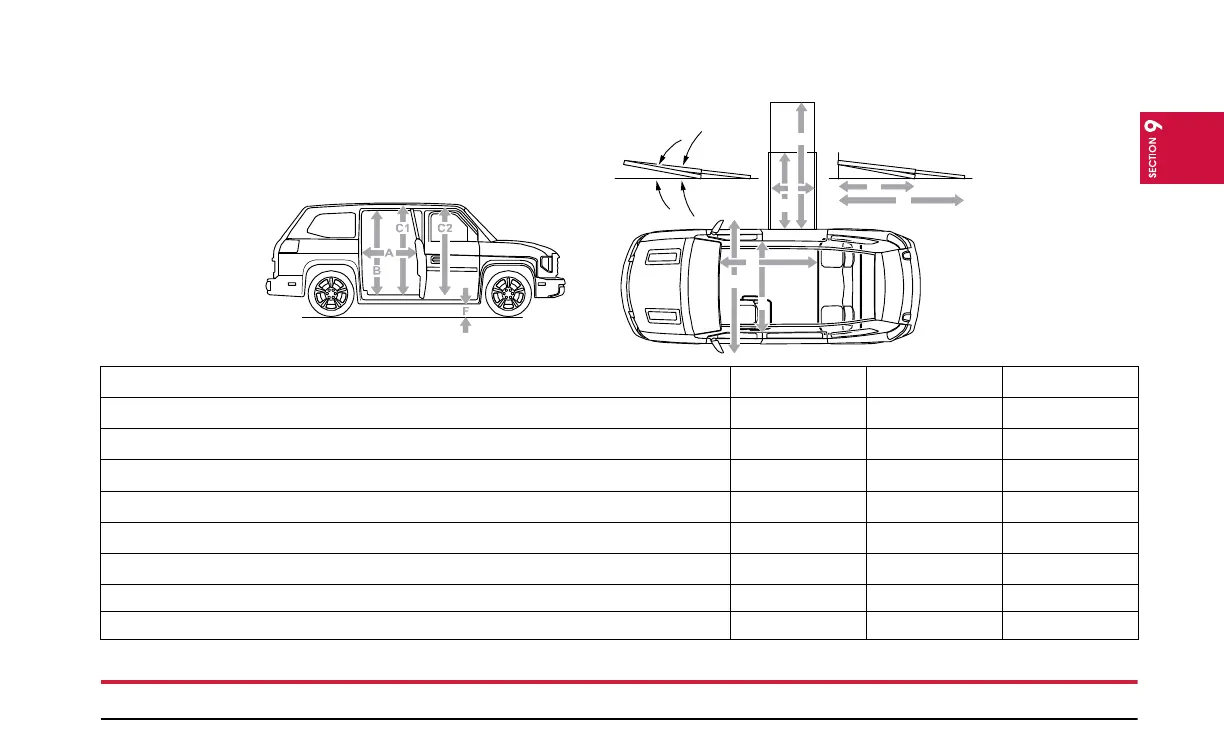

VEHICLE DIMENSIONS
Wheelbase:
—
122.0 in 3099 mm
Length
—
205.0 in 5207 mm
Height:
—
75 in* 1905 mm*
Width:
—
79.4 in 2017 mm
Footprint:
—
57.9 ft
2
5.38 m
2
Frontal Area:
—
37.77 ft
2
3.51 m
2
Turning Circle (curb to curb):
—
42.8 ft 13045 mm
Access Door Opening Usable Width: A 36 in 914 mm
Access Door Opening Usable Height: B 56 in 1422 mm
13-WOM10-013
K
E
D
J2
I1
I2
G1
G2
H
J1
ANGLE
LENGTH
EXTENSION
