88 Seating and Safety Restraints
Occupant Restraints
The QRT
MAX
TM
wheelchair securement system comes
equipped with a two-piece lap belt and a shoulder belt, all of
which can be adjusted to fit most wheelchairs and occupants.
To install the lap belt:

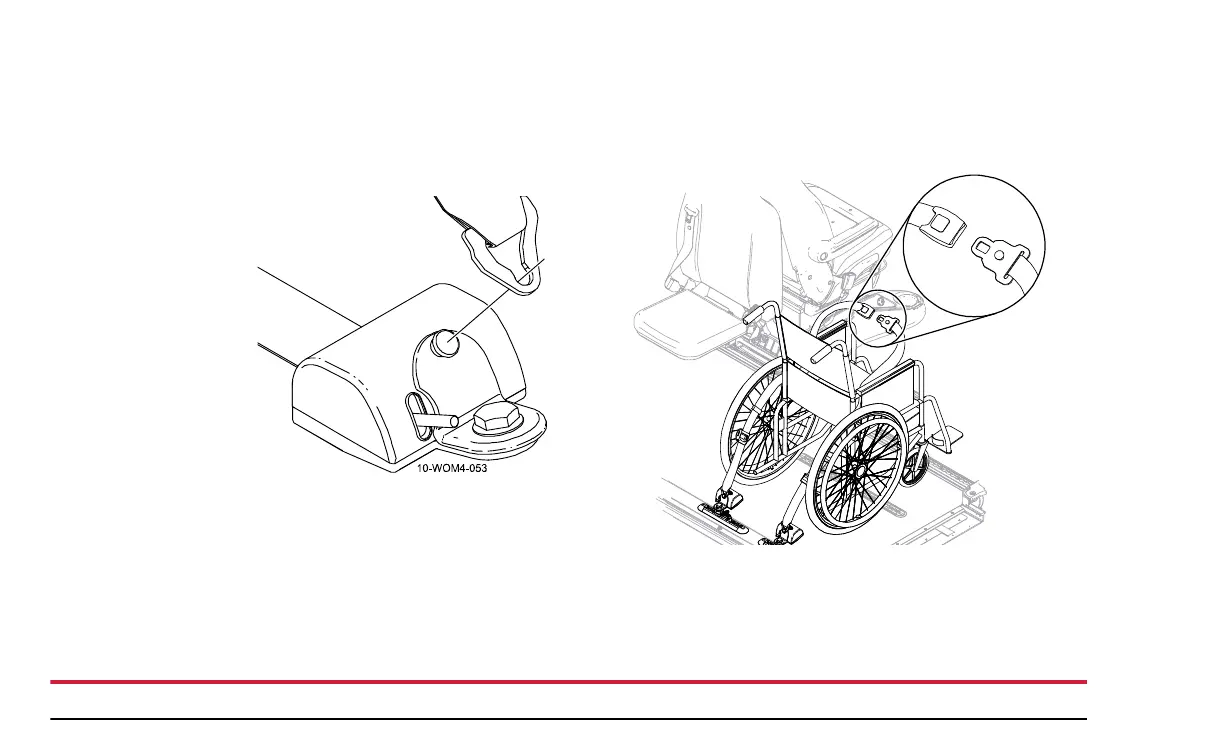

1. Attach the lap belt
with the buckle to
the pin connector
on the rear retactor
that is closest to the
driver’s side. Pull
the belt to make
sure that the attach-
ment plate is com-
pletely pulled up on
the pin.
2. Attach the lap belt with the latch plate to the pin connector
on the rear retractor that is closest to the right side of the
vehicle.
3. Pull both belts around to the front, making sure that the
lap belt is not held away from the body by wheelchair
components or parts such as the armrest or wheels. The
lap belt should be worn low across the front of the pelvis
like a conventional seat belt.
