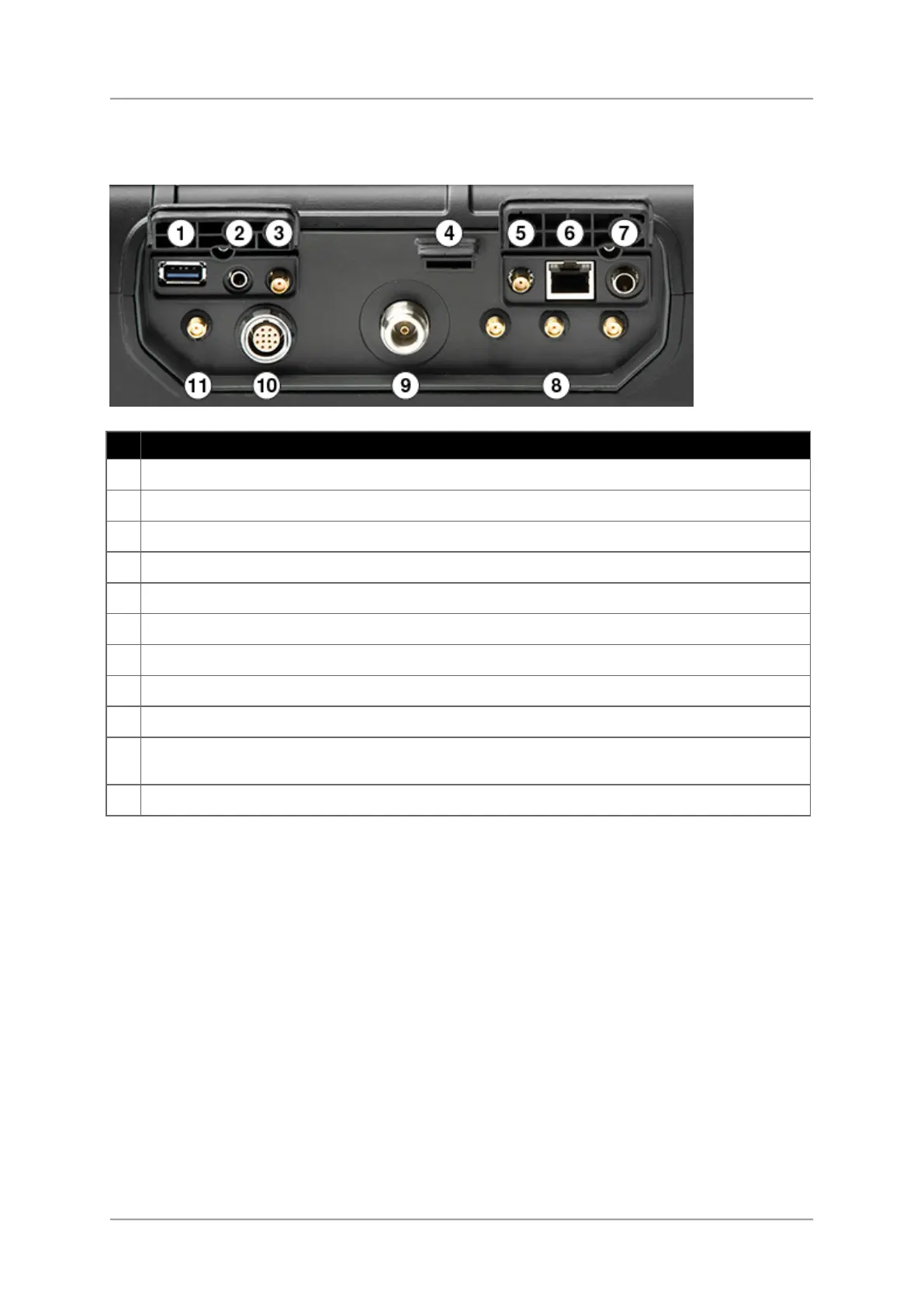

Top side panel with connectors
No.
Description
1
USB 3.0 host
2
3.5 mm headphone jack
3
External GNSS SMA (f) input
4
Micro SDcard slot (micro SDXC)
5
100 kOhm PPS/Trigger SMA (f) input
6
1 GigE connector for remote control and I/Q streaming
7
DC input / charge socket
8
3 x RF SMA (f) input
9
N-connector: RF N (f) socket for connecting the antenna
10
Control connector: 12-pole socket for connecting the antenna control cable (for
automatic recognition of Narda antennas and cables).
11
10 MHz Ref SMA (f) input
