CHAPTER 2 INSTALLATION
– 80 –
NWA-008855-001 Rev.1.0
avch2001.fm
CS Installation
(1) Position and secure the CS Plate with two screws at the screw holes to wall as shown below.
(2) Put notches of the CS Plate into the slits of the reverse side of the CS, and secure the CS with a screw.
IP-CS Installation
NOTE 1: Ensure that the wall or pillar to be used is strong enough to support the weight of the CS, so
that it does not shake, and has very little vibration.
NOTE 2: When taking off the CS from the CS plate, remove a screw which secures the CS, then lift and
pull the CS toward this side.
CS PLATE
SCREW TO SECURE CS
SCREW TO WALL
IP-CS
78.75 mm
WALL

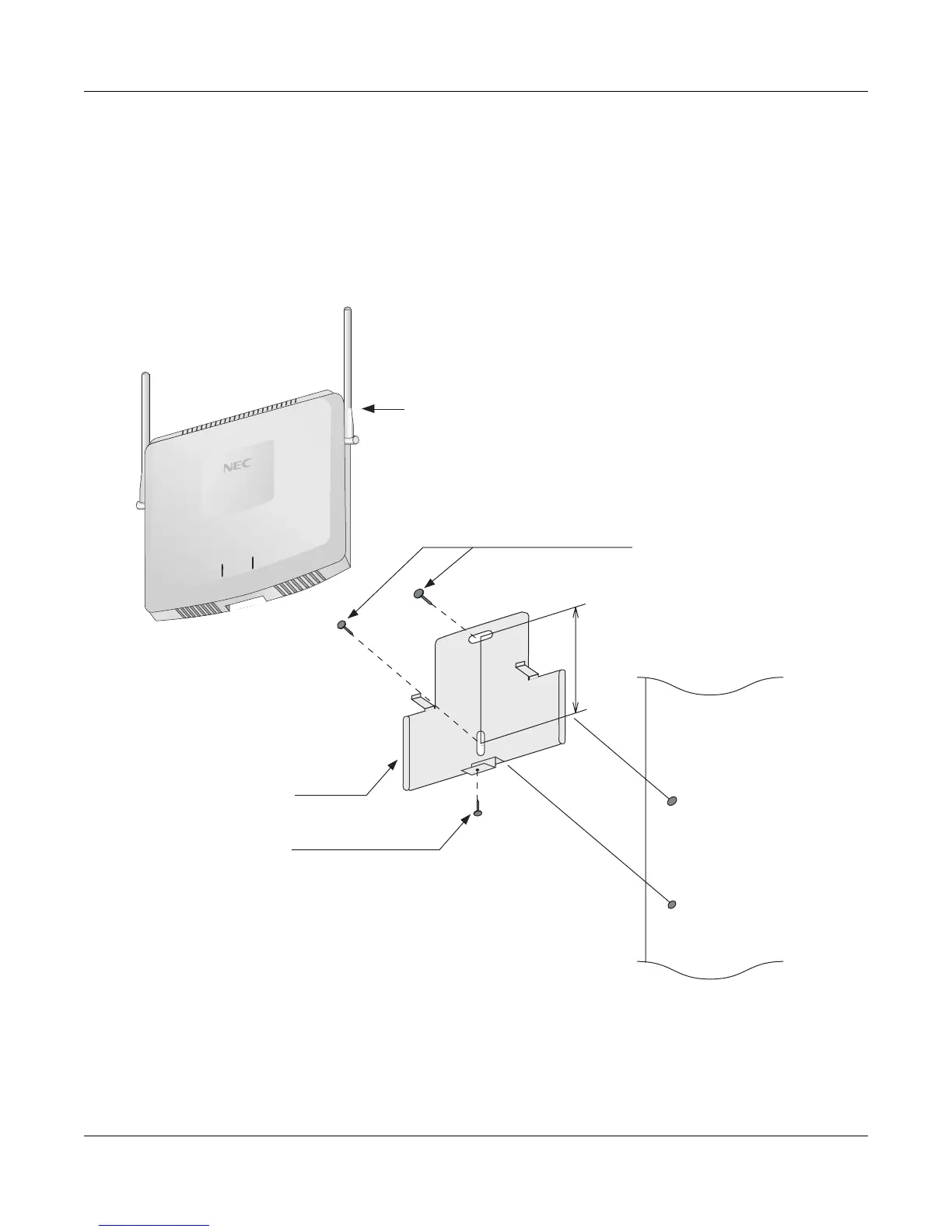

INSTALLATION OF IP-CS
To Next Page
