NEC NEAX 2000 IPS User Manual

– 165 –
NWA-008855-001 Rev.1.0
avch4001.fm
PN-SC03-B (CSH)

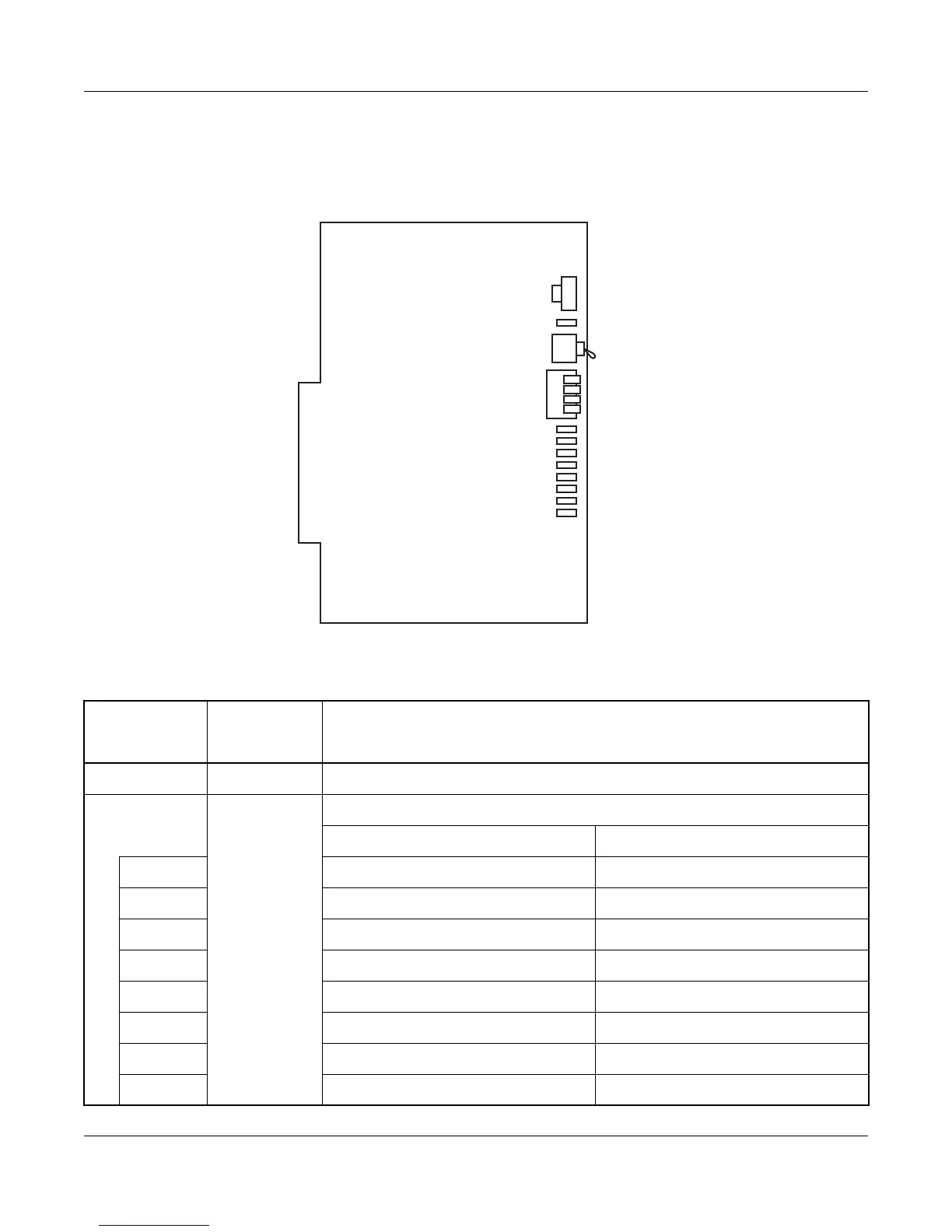

Locations of Lamps, Switches and Connectors
Lamp Indications
LAMP
NAME
COLOR FUNCTION
RUN Green Flashes at 120 IPM while this card is operating normally.
DOPE7-0 Green Remains lit when D channel link with CSI card is connected.
CSI Card No. Circuit No.
DOPE7 CSI3 No. 1
DOPE6 CSI3 No. 0
DOPE5 CSI2 No. 1
DOPE4 CSI2 No. 0
DOPE3 CSI1 No. 1
DOPE2 CSI1 No. 0
DOPE1 CSI0 No. 1
DOPE0 CSI0 No. 0
SENSE
RUN
MB
DOPE7
DOPE6
DOPE5
DOPE4
DOPE3
DOPE2
DOPE1
DOPE0
SW1
PN-SC03-B (CSH)
