NMC-64 Irrigation
pH Transmitter & Sensor connection and calibration

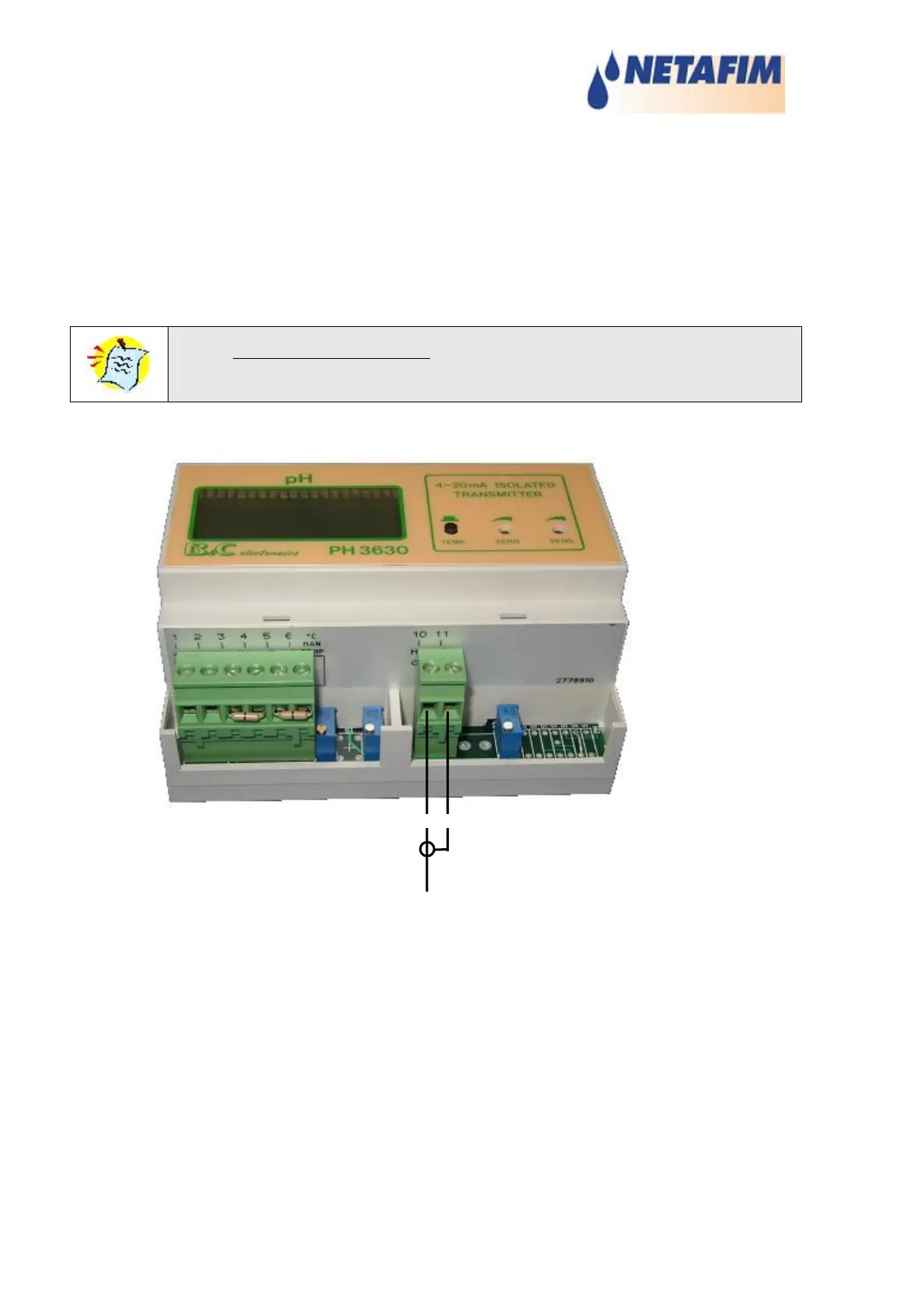

Connecting pH sensor to Transmitter:
•
Connect wire (HI)
to connector 10.
•
Connect shield (LO) to connector 11.
Do not
remove resistors
from connectors 3-4 and 5-6.
Do not switch between sh
ield and wire connections.
Shield
Wire
10
11
96
95
97
Table of Contents
Table of Contents
1
Table of Contents
2
Introduction
6
General Description
6
Main Features
6
Operation of the NMC-64
7
Main Menu Screen
8
Use of the Keypad
8
Use of Keypad Buttons
9
Hot Screens
10
Hot Screen 0
10
Hot Screen 1
11
Hot Screen 2 - Irrigation Process
11
Hot Screen 3 - Program Status
12
Hot Screen 4 - Water / Ec/Ph / Fert
13
Hot Screen 5 - Filter Flushing Status
14
Hot Screen 6 - Temperature and Humidity
15
Hot Screen 7 - Weather Station
16
Software
17
Getting Started
17
1 Program
18
Irrigation
19
Water Run Time
22
Dosing
23
Condition
25
Agitator
26
Selector
26
Filter Flushing
27
Cooling
28
Water Heating
33
2 Manual
34
Pause Irrigation
34
Start/Stop Program
34
Filter Flushing
35
Start/Stop Valve
35
3 Alarm
36
Alarm Reset
36
History
37
Alarm Definition
37
Alarm Setting
39
4 History
40
Irrigation Log
40
Uncompleted Irrigation
41
Uncompleted Programs
42
Daily Irrigation
42
Irrigation Accumulation
43
Aux Meter Accumulation
44
Accumulation Reset
44
Filters
45
Cooling
45
Sensors Log
46
Event Log
47
System Log
47
5 Test
48
Relays
48
Digital Input
49
Analog Input
49
Temperature
50
Humidity
50
Hardware Check List
51
6 Setup
52
Time & Date
52
System Setup
53
Temperature Calibration
55
Humidity Calibration
55
Ec/Ph CALIBRATION
55
Weather Station Calibration
56
Sensors Logging
56
Write to Data Plug
57
Read from Data Plug
57
7 Configuration
58
Device Delay Configuration
58
Pump Configuration
59
Valve Configuration
60
Valve Flow Rate
60
Water Meter
61
Dosing Channel Configuration
61
Dosing Configuration
63
Ec/Ph RANGE DEFINITION
64
Cooling Configuration
64
Misting Configuration
64
8 Installation
66
Device Layout
66
Available Devices
67
Digital Inputs 1-2
67
Analog Input 1-2
68
Hardware
69
General Specifications
69
Power Supply
69
Specifications
69
Dry Contact Output Card
71
Specifications
71
24AVC Output Card
72
Specifications
72
Digital Input Card
73
Specifications
73
Analog Input Card
74
Specifications
75
Troubleshooting
77
Led's Indication
77
Problems and Trouble Shooting
78
Alarm List
80
Appendix
81
Cold Start Procedure
81
Version
81
General Description
82
Functionality
82
Reset
82
Short-Circuit Threshold Level (A/D)
82
Short Circuit Control
82
Plug & Play
83
Limitation Table
85
Priority Specifications
86
Electrical Grounding
86
Ground Rods
86
Ground Wire
88
Ground Clamps
88
What Should be Grounded
89
Lightning Protection
89
Electrical Connections
90
Sensors and Shield Wiring
91
Ec/Ph Correction Adjustment
92
EC Transmitter & Sensor Connection and Calibration
93
Connecting EC Sensor to Transmitter
93
EC Transmitter Calibration
93
Connecting EC Transmitter to NMC-64 Controller
94
Ph Transmitter & Sensor Connection and Calibration
96
Connecting Ph Sensor to Transmitter
96
Ph Transmitter Calibration
97
Connecting Ph Transmitter to NMC-64 Controller
97
Ph Definitions and Calibration
99
Netafim Limited Warranty
100
