Introduction to NetApp EF570 All-Flash Arrays:
Feature Overview with SANtricity 11.50.2
© 2019 NetApp, Inc. All Rights Reserved.

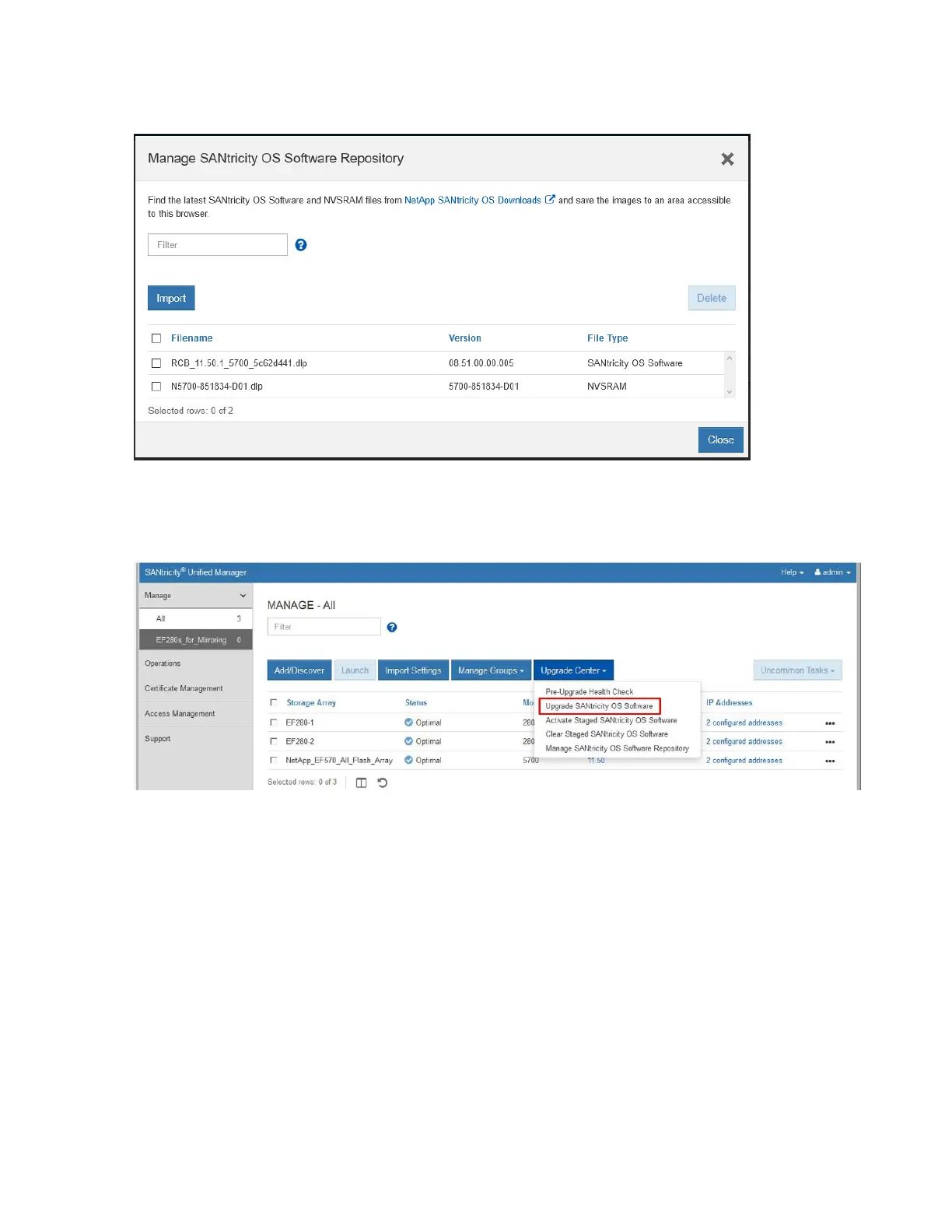

Figure 16) SANtricity Unified Manager OS Software Repository view.
On the Unified Manager landing page, click Upgrade Center and then click Upgrade SANtricity OS
Software. See Figure 17.
Figure 17) SANtricity Unified Manager upgrade OS.
On the Upgrade SANtricity OS Software page, select the following items:
• The desired SANtricity OS and/or NVSRAM files
• The arrays to be upgraded that are appropriate to the selected SANtricity OS files
• Whether to transfer and activate the OS files immediately or at a later time
Click Start to continue. See Figure 18.
