Introduction to NetApp EF570 All-Flash Arrays:
Feature Overview with SANtricity 11.50.2
© 2019 NetApp, Inc. All Rights Reserved.
4-Port 25Gb iSCSI HIC LEDs
The EF570 controller supports a 4-port 25Gbps iSCSI HIC that offers the ability to also run at 10Gbps by
changing the port speed on each controller in SANtricity System Manager without changing the 25Gbps
SFP (25Gbps SFP supports 10Gbps speed). The new 25Gbps iSCSI HIC does require OM4 fiber cable
to connect to switches or directly to hosts. Figure 56 shows the LEDs for the 4-port 25Gbps iSCSI HIC.

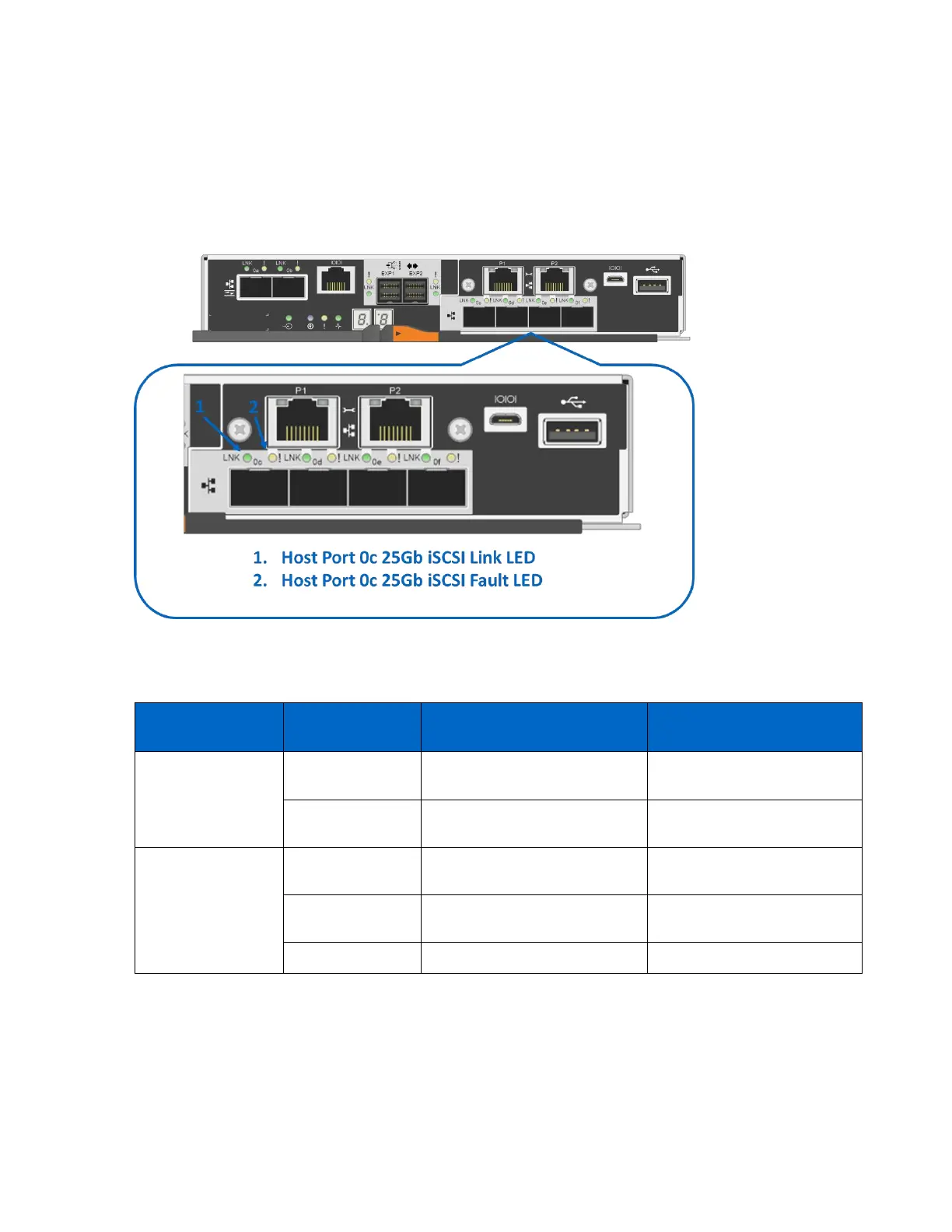

Figure 56) LEDs for 4-port 25Gb iSCSI HIC.
Table 25 provides the LED definitions for the 25Gbps iSCSI HIC.
Table 25) 4-port optical 25Gb iSCSI HIC LED definitions.
LED Speed (Left
Side)
LED Activity
(Right Side)
Link Rate
Color
On
On
Link operating at 25Gbps; no
activity
Green
Blinking
Link operating at 25Gbps with
active I/O in progress
Green
Off
On
Link operating at 10Gbps; no
activity
Green
Blinking
Link operating at 10Gbps with
active I/O in progress
Green
Off
Link down
N/A
Note: The LED definitions for port 0c repeat for ports 0d, 0e, and 0f.
