Introduction to NetApp EF570 All-Flash Arrays:
Feature Overview with SANtricity 11.50.2
© 2019 NetApp, Inc. All Rights Reserved.

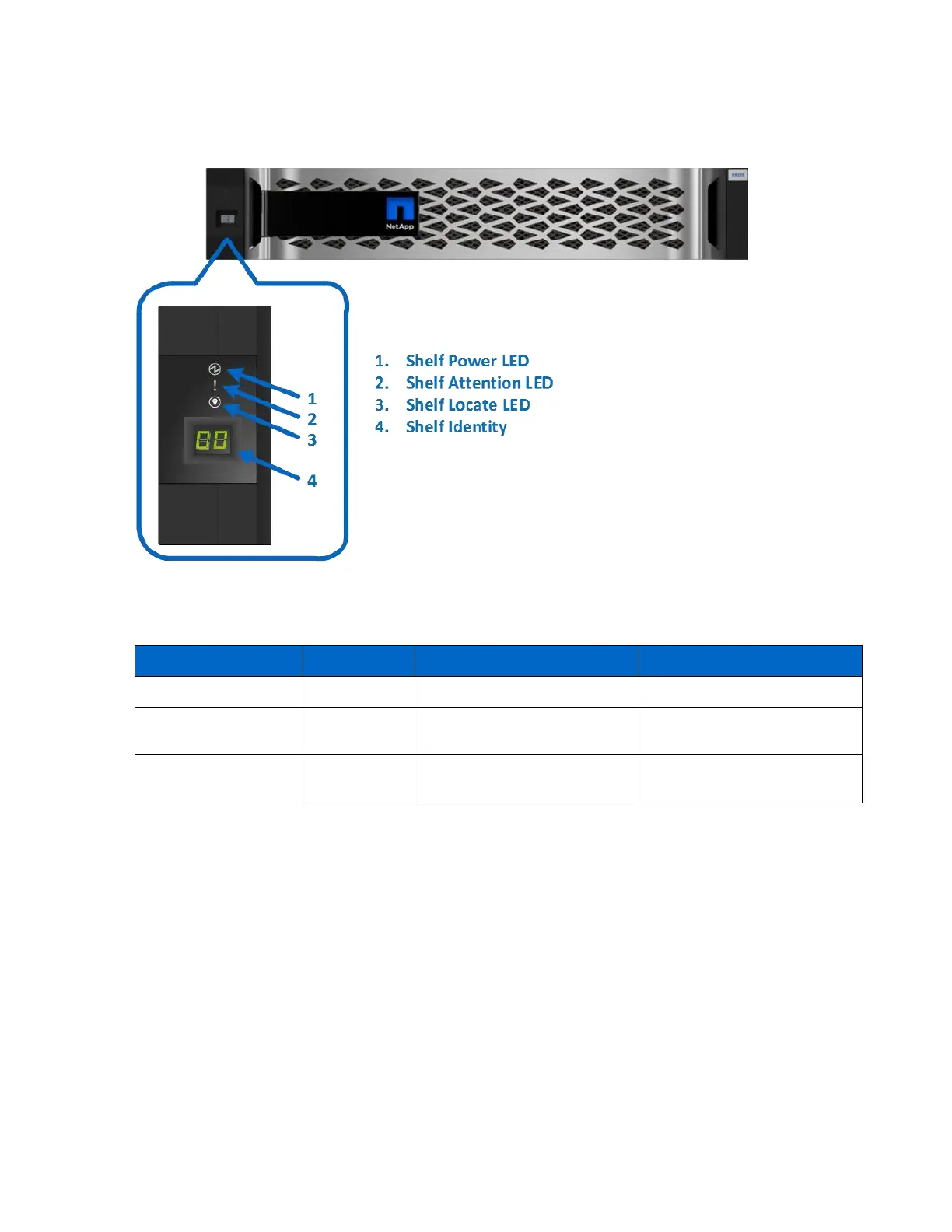

Figure 45) ODP on front panel of EF570 controller shelf.
Table 16 defines the ODP LEDs on the EF570 controller shelf.
Table 16) EF570 controller shelf LED definitions (front panel).
LED Name
Color
LED On
LED Off
Power
Green
Power is present.
Power is not present.
Attention
Amber
A component in the controller
shelf requires attention.
Normal status.
Locate
Blue
There is an active request to
physically locate the shelf.
Normal status.
The shelf-identity feature displays a numerical value to identify the shelf. The dual seven-segment display
indicates values from 00 to 99 that can be set from the SANtricity System Manager Hardware tab shown
in Figure 46.
