2-Port 100Gb IB HIC LEDs
Figure 53 shows the 2-port 100Gb IB HIC.

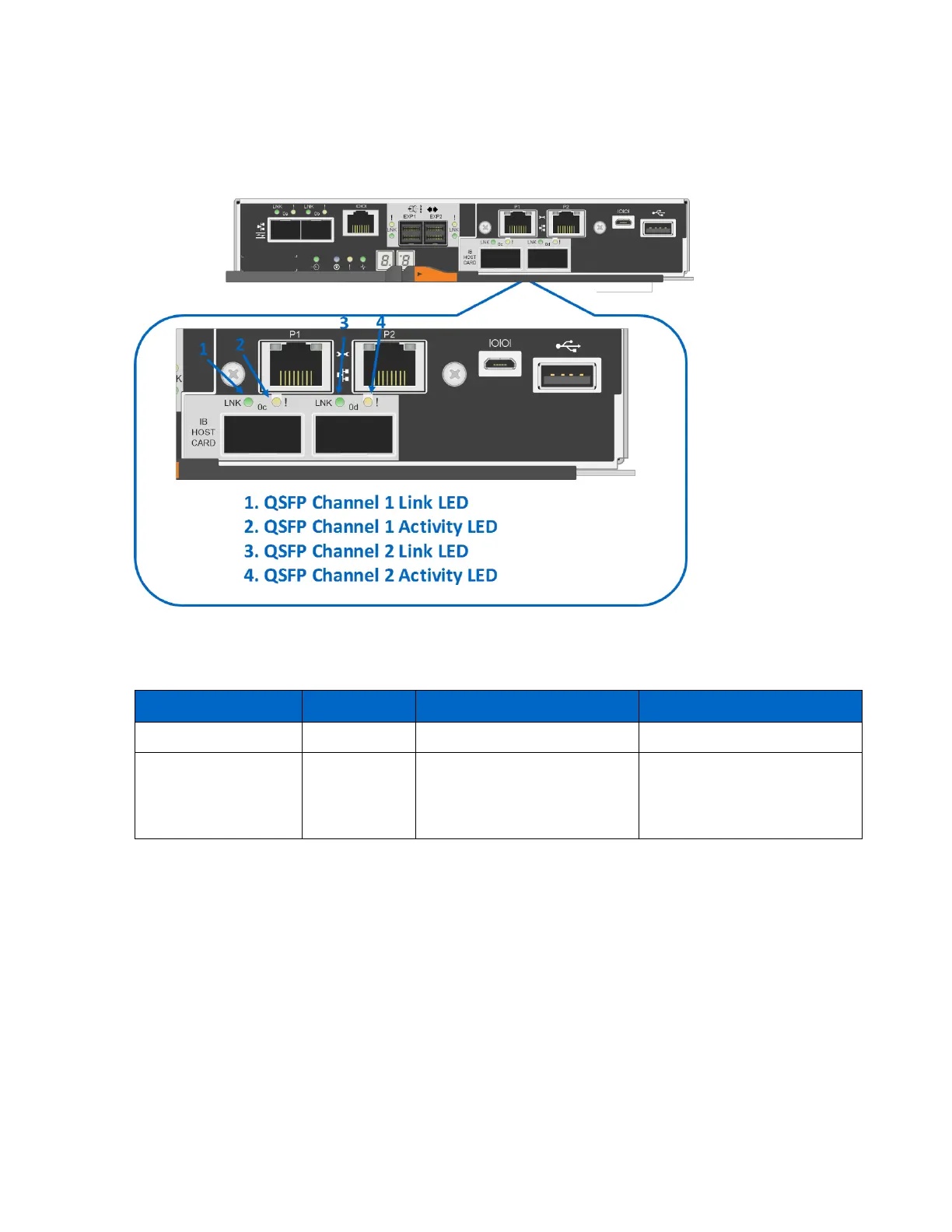

Figure 53) LEDs on 2-port 100Gb IB HIC.
Table 22 defines the LEDs on the 2-port 100Gb IB HIC.
Table 22) 2-port 100Gb IB HIC LED definitions.
LED Name
Color
LED On
LED Off
QSFP link
Amber
The physical link is active.
The physical link is not active.
QSFP activity
Green
• Solid: the link is up without
activity.
• Blinking: the link is up with
activity.
The controller has not yet
loaded the driver for the
ConnectX host channel
adapter.
