Power Fan Canister Status LEDs
The LEDs on the rear panel of the EF570 integrated power and fan canisters are shown in Figure 47 and
are defined in Table 17.

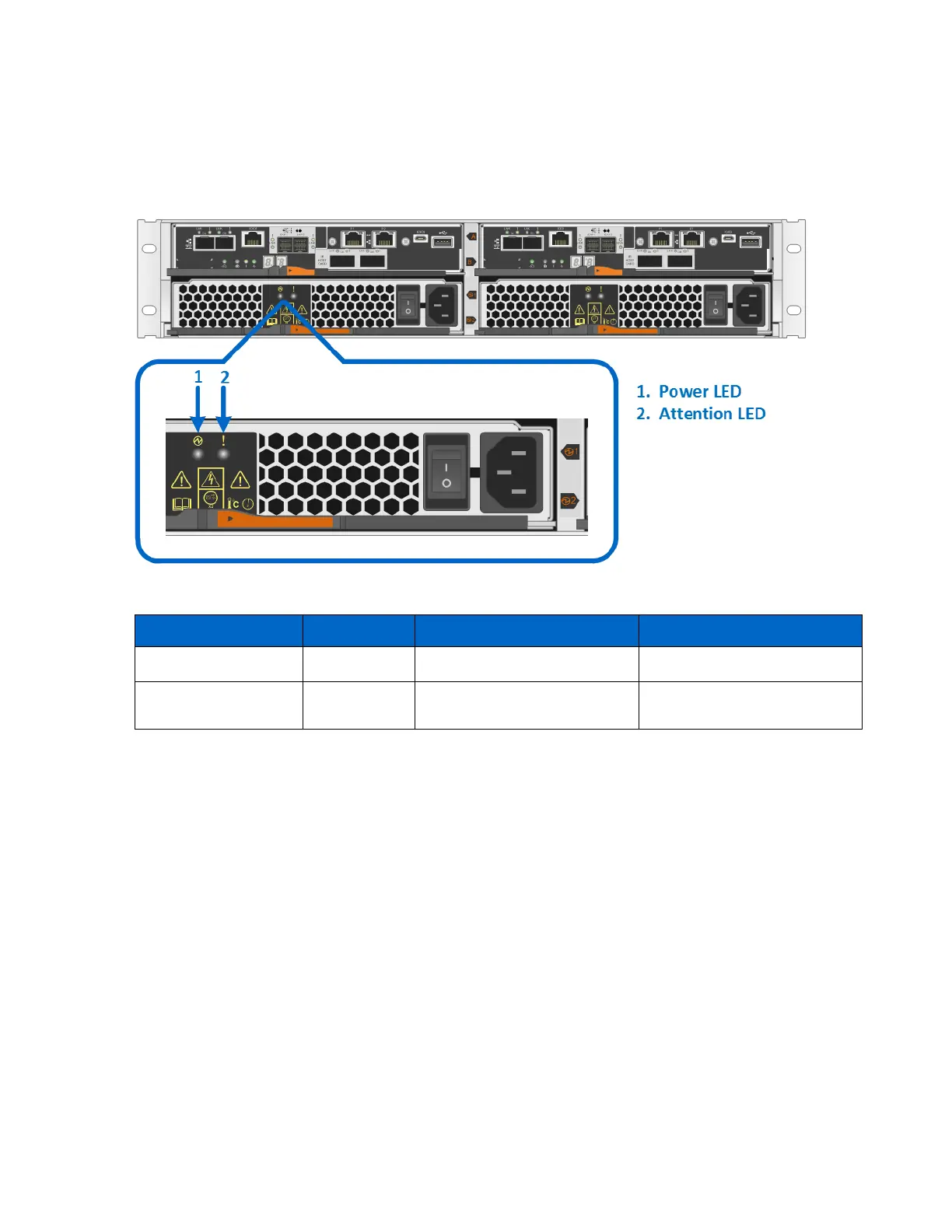

Figure 47) LEDs on EF570 power fan canister (rear view).
Table 17) EF570 controller shelf power and fan canister LED definitions.
LED Name
Color
LED On
LED Off
Power
Green
AC power is present.
AC power is not present.
Attention
Amber
The power supply or the
integrated fan has a fault.
Normal status.
EF570 Controller Canister LEDs
The EF570 controller canister has several LED status indicators. Host port status and other system-level
status information can be verified by directly checking the port LEDs or by using the SANtricity System
Manager GUI. For example, systemwide status information is displayed in the View Settings page (Figure
48).
