6.2 Drive LED Definitions
Figure 62 shows the LEDs on the drive carriers for the EF570 SSDs. The DE224C shelf in the EF570
architecture supports only 2.5-inch form-factor SSDs.

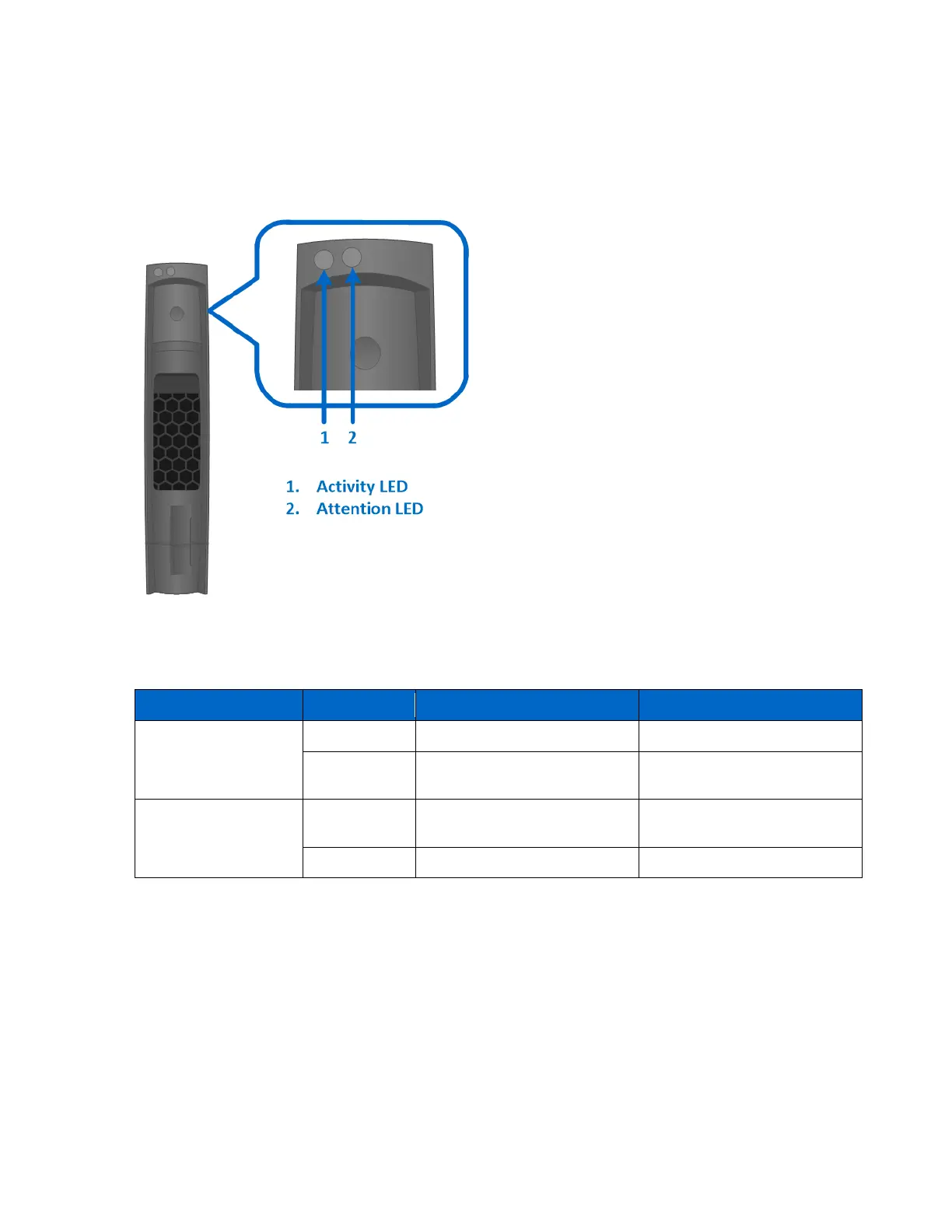

Figure 62) EF570 drive carrier LEDs.
Table 27 defines the LEDs for the drives.
Table 27) EF570 drive LED definitions.
LED Name
Color
LED On
LED Off
Activity
Green
Drive has power.
Drive does not have power.
Blinking green
The drive has power, and I/O is
in process.
No I/O is in process.
Attention
Amber
An error occurred with the
functioning of the drive.
Normal status.
Blinking amber
Drive locate turned on.
Normal status.
