Introduction to NetApp EF570 All-Flash Arrays:
Feature Overview with SANtricity 11.50.2
© 2019 NetApp, Inc. All Rights Reserved.

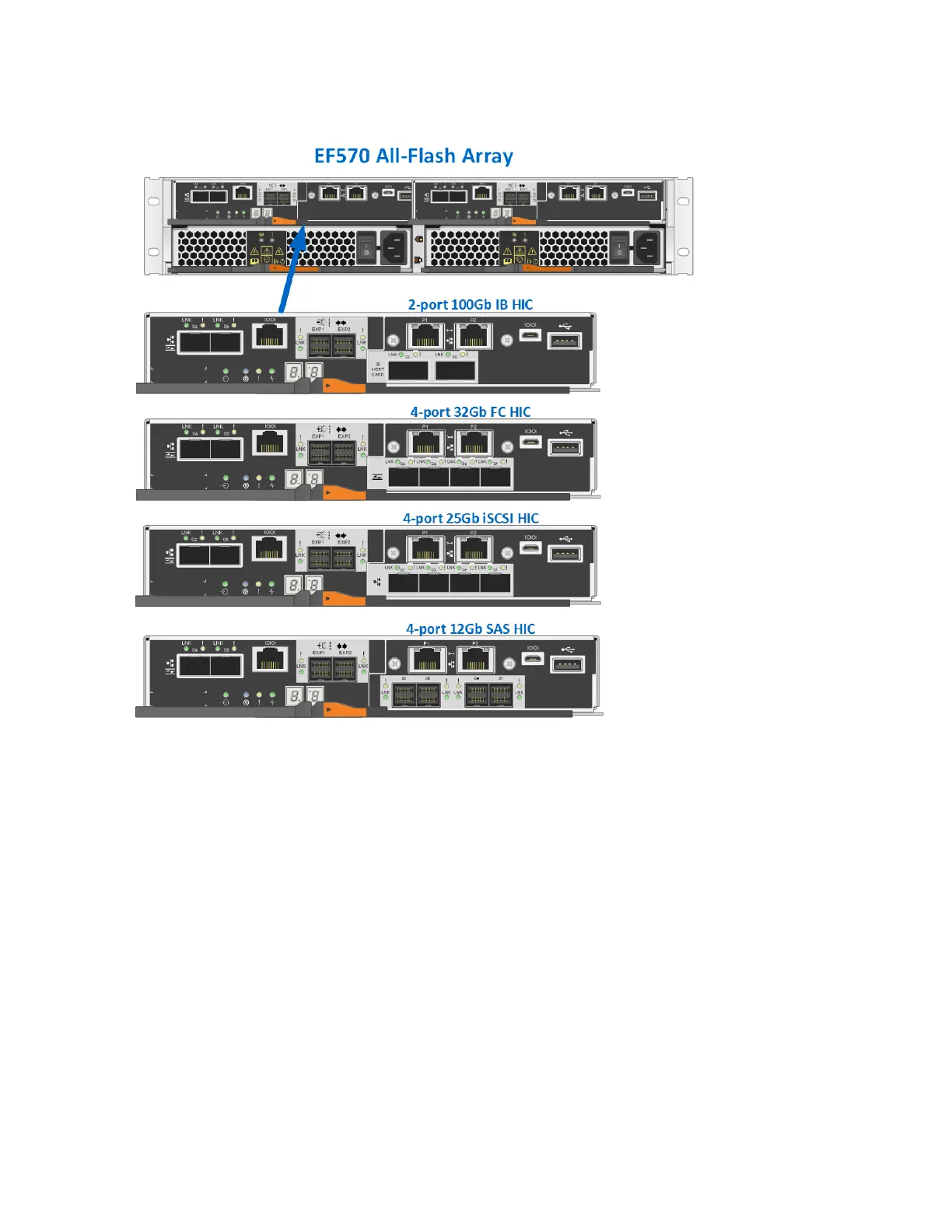

Figure 44) EF570 with optional HICs.
5.2 Hardware LED Definitions
EF570 Controller Shelf LEDs
The EF570 controller shelf has LED status indicators on the front of the shelf, the operator display panel
(ODP), the rear of the shelf, the power-fan canisters, and the controller canisters. The new EF570 shelf
ODP also includes a dual seven-segment display to indicate the shelf identity. The LEDs on the ODP
indicate systemwide conditions, and the LEDs on the power-fan canisters and controller canisters indicate
the status of the individual units.
Figure 45 shows the ODP of the EF570 controller shelf.
