GS716Tv2 and GS724Tv3 Software Administration Manual
Managing Device Security 5-51
v1.0, July 2009
1. Click Security ACL, then click the Advanced IP Extended Rules link.
2. To add an IP ACL rule, select the ACL ID to add the rule to, and then click Add. The
Extended ACL Rules configuration page displays as shown in Figure 5-32 on page 5-52.
3. To delete an IP rule, select the check box associated with the rule, and then click Delete.
4. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the
latest value of the switch.

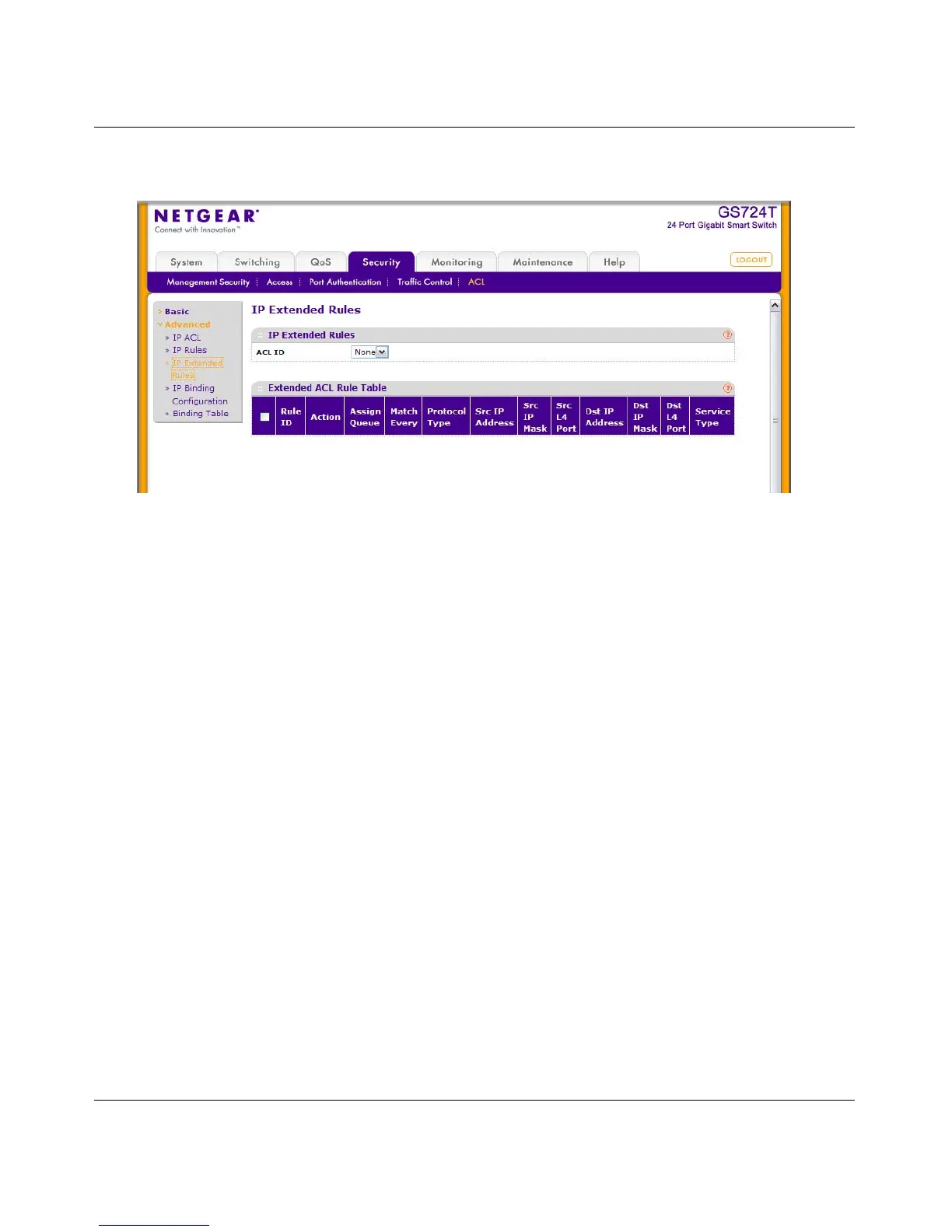

Figure 5-31
